System Testing

With engine running at idle, remove hose from air cleaner and check vacuum generated at opening of hose. If no vacuum is felt, check hoses for cracks, clogging, damage or leaks. Replace if defective. Periodic maintenance of hose and system is not required.

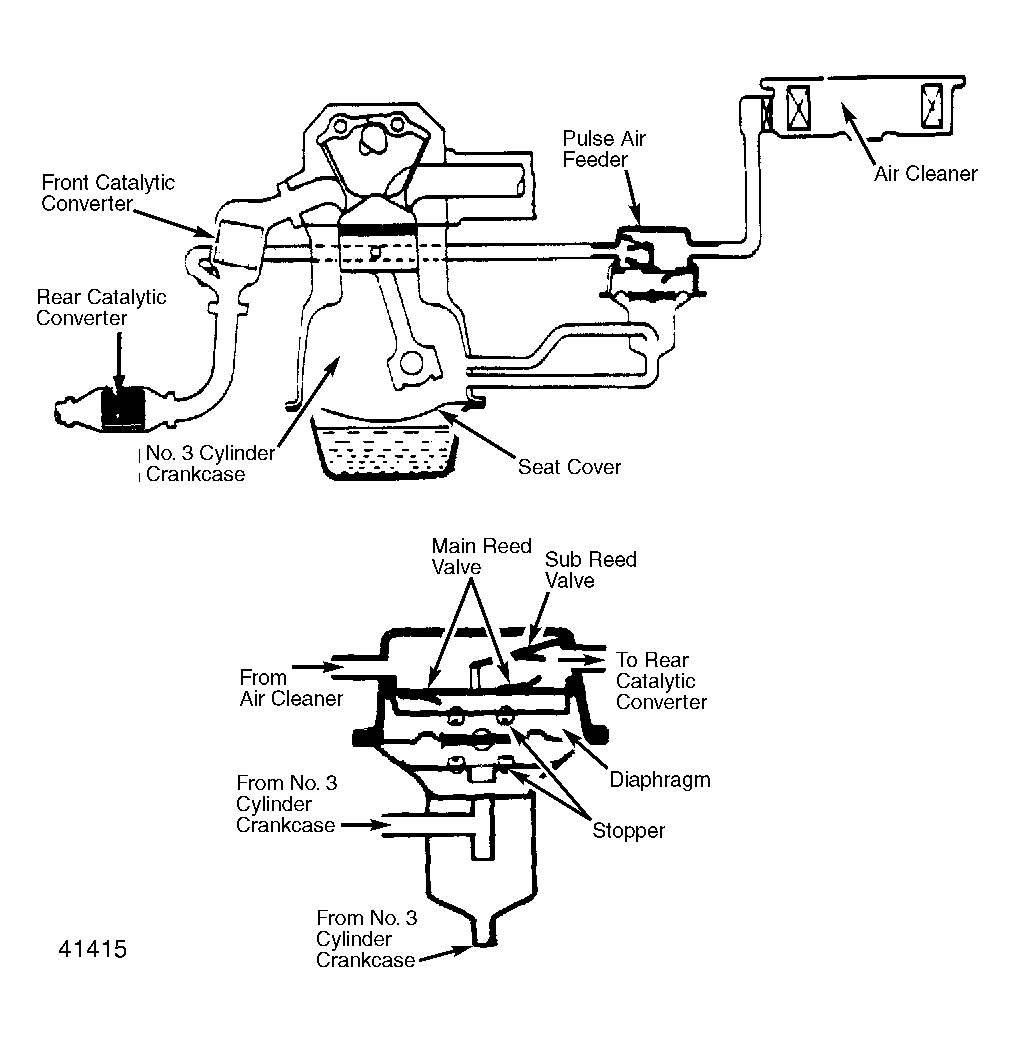

Fig 1: Air Injection System
G41415
