Service Specifications

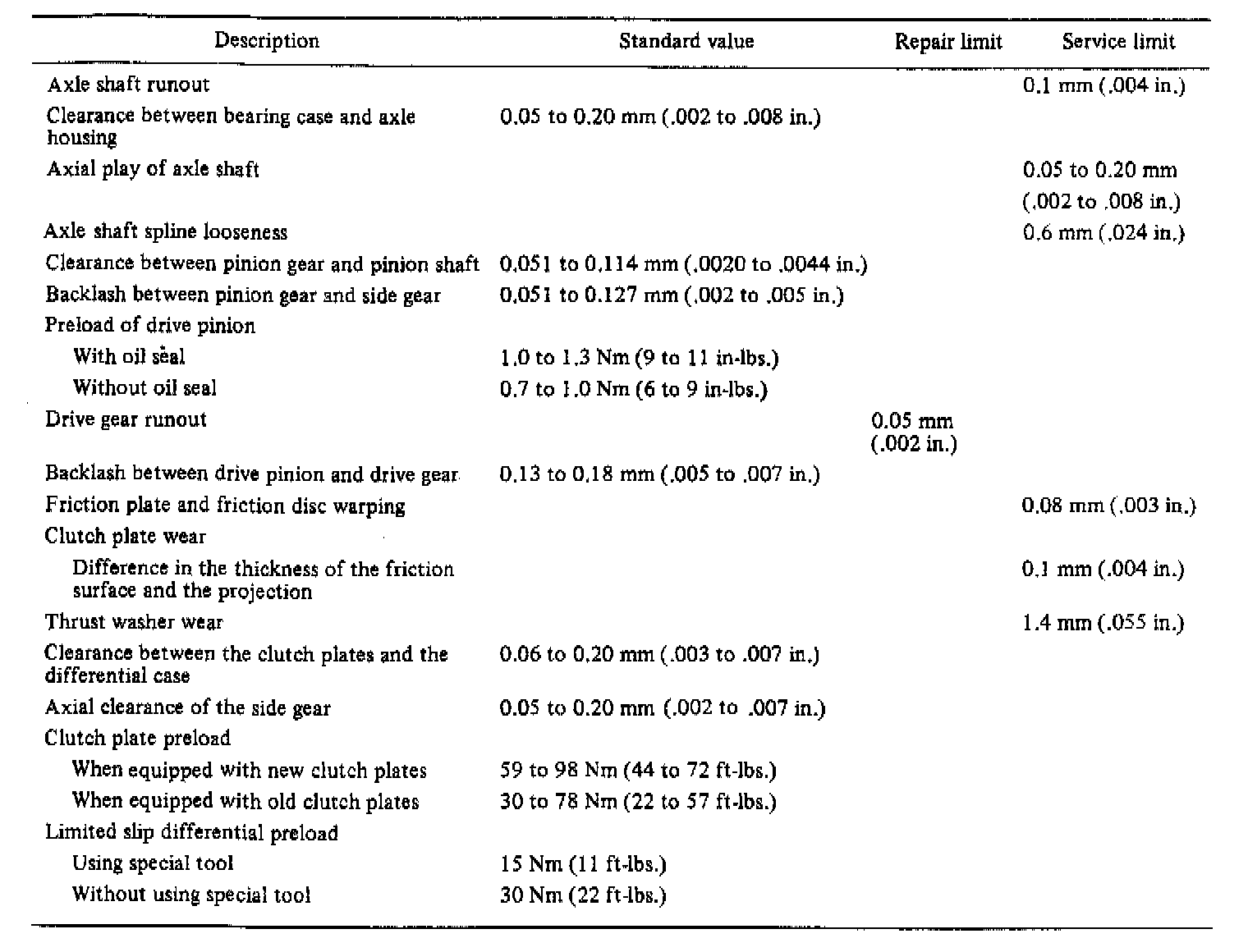

2WD & 4WD Rear Differential With/Without Limited Slip:

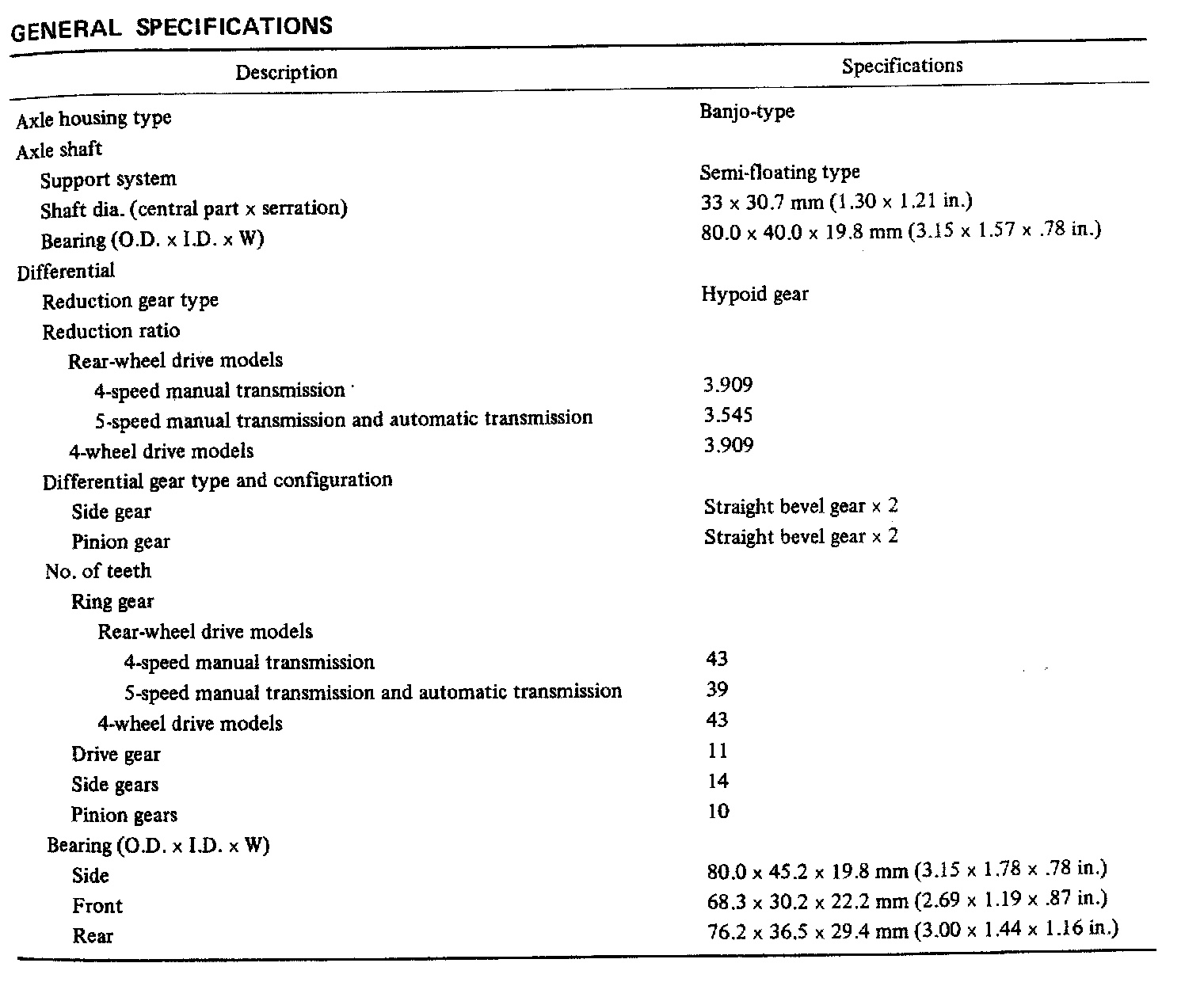

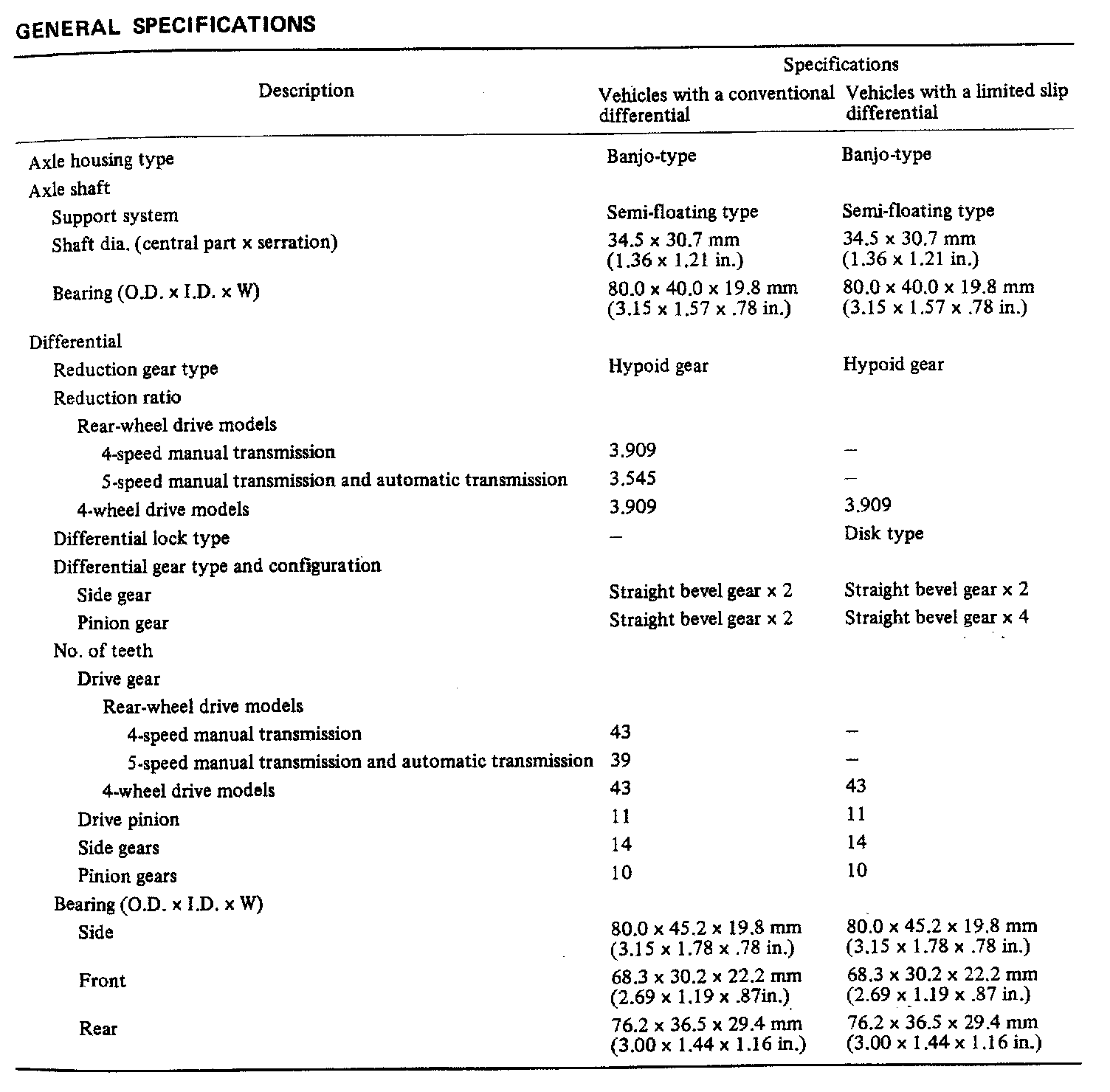

2WD & 4WD Rear Differential Dimensions:

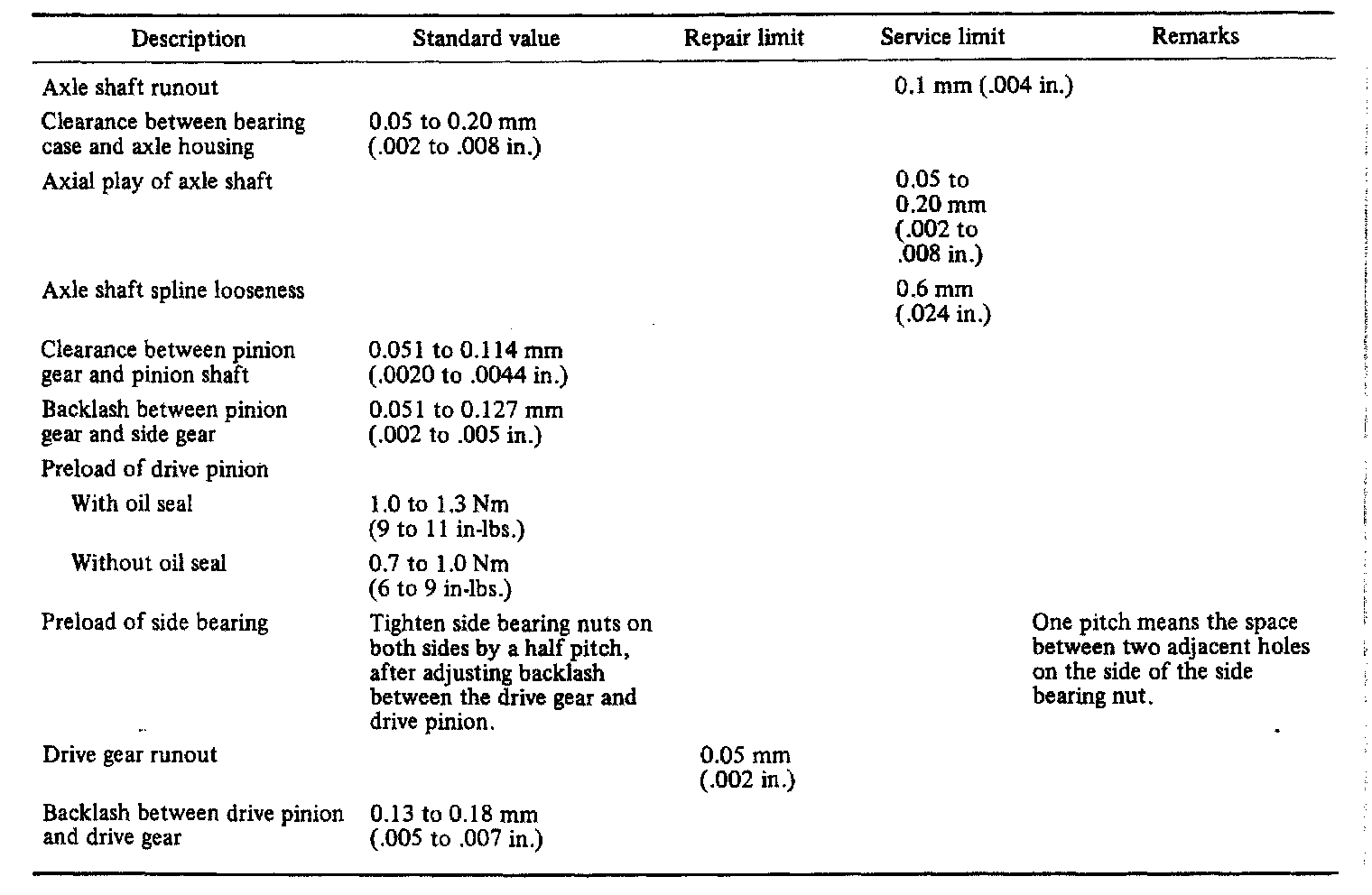

2WD & 4WD Rear Differential Standard Values & Limits:
2WD/4WD Differential Standard Values & Limits:
