Sub EGR Control Valve

This valve is mounted so it is linked to the throttle valve. It is mechanically controlled. This valve more closely modulates EGR flow in response to throttle valve position.

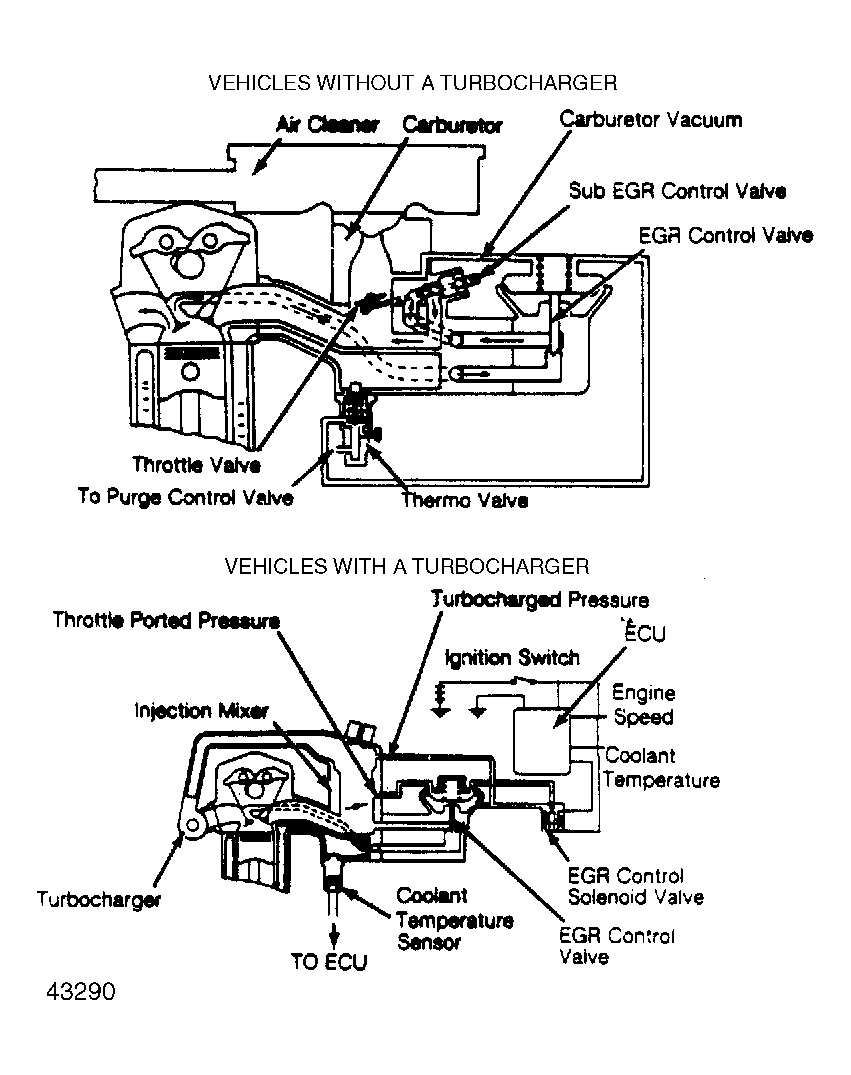

Fig 1: EGR System (Cordia & Tredia)
G43290
