ECI Inspection Test: Notes
NOTE:
Perform ECI Inspection test only after completing all steps of preceding Self-Diagnosis test. Chrysler Corp. Imports

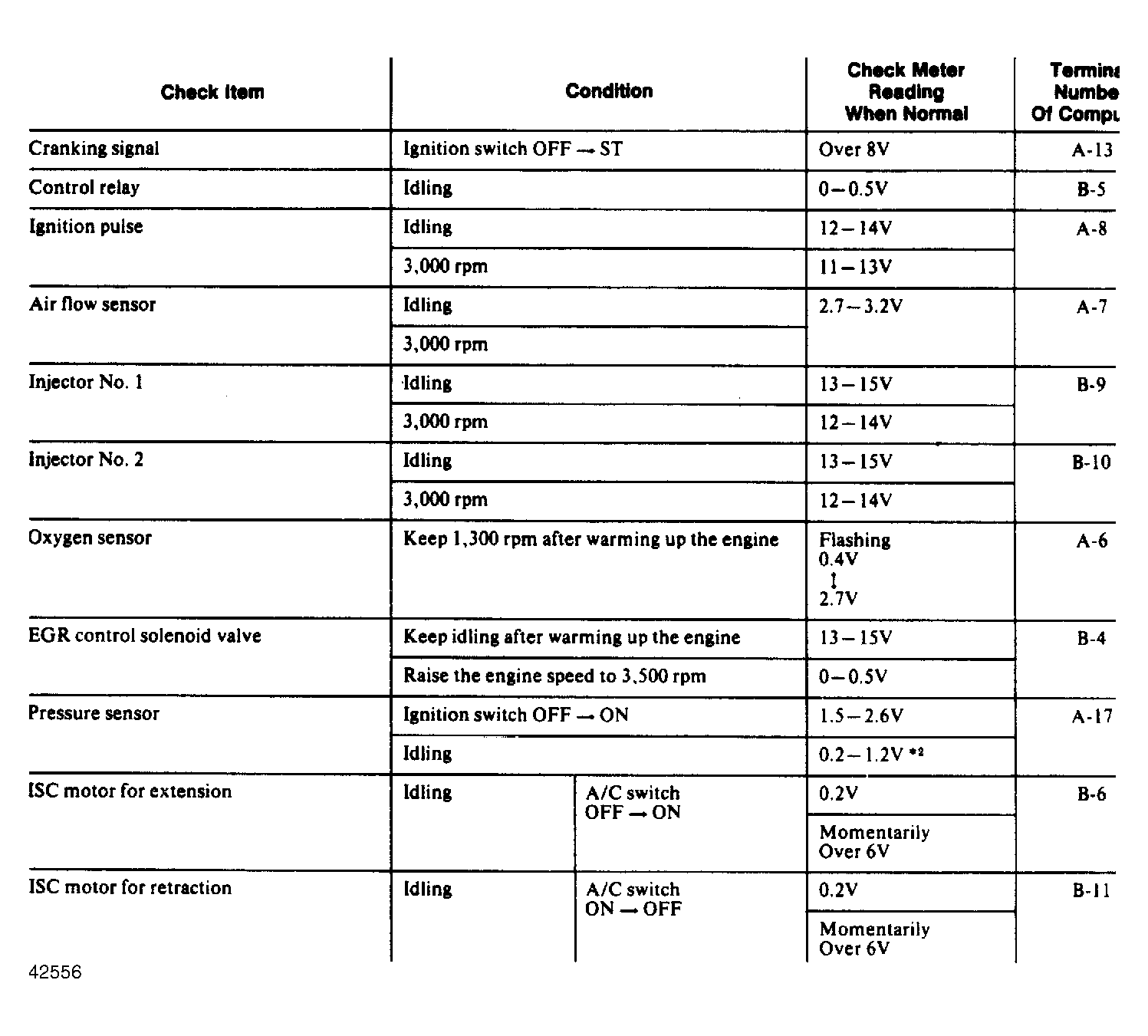

With voltmeter, use following charts to identify the pin connectors. See Figure . Check voltage of each terminal as specified in charts. Make sure ignition switch, vehicle operation and conditions are observed as called out in procedure.
