Power Steering Pump: Notes

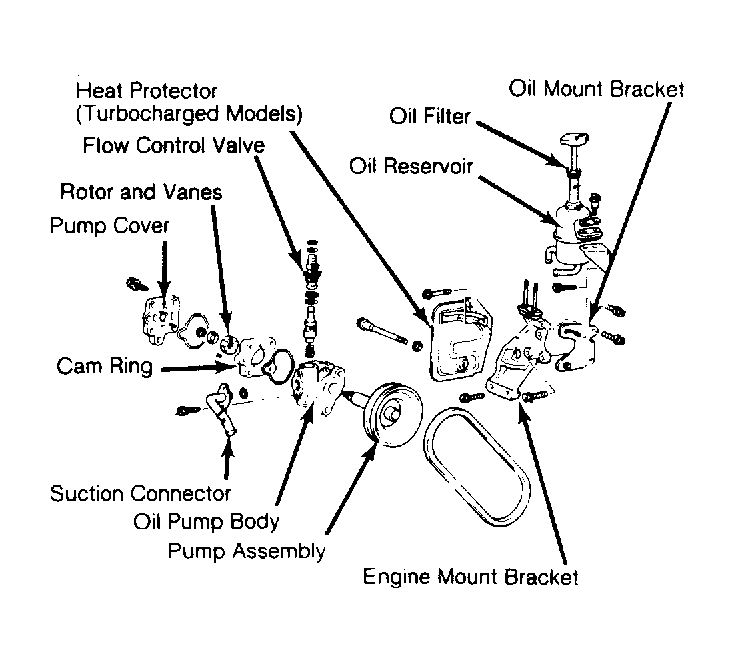

Fig 1: Exploded View of Power Steering Pump Applies to Mirage.
G51306

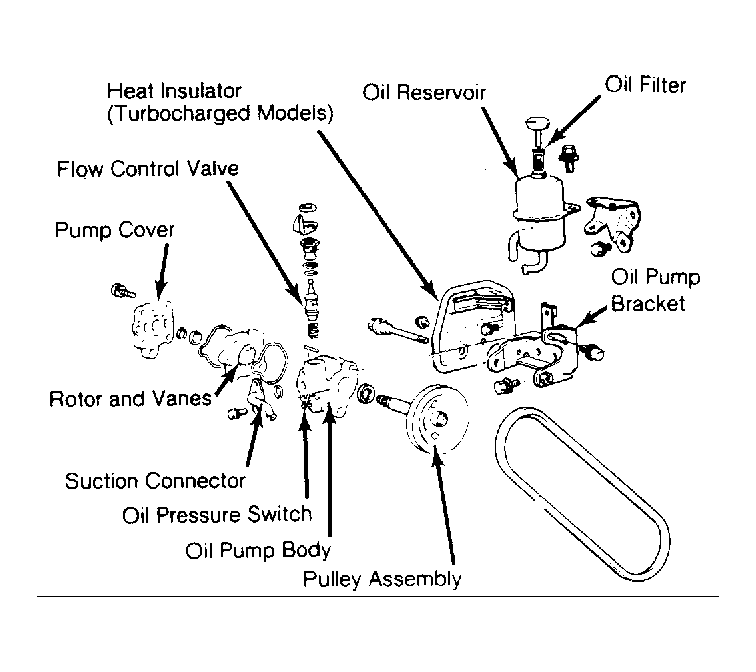

Fig 2: Exploded View of Power Steering Pump Applies to Cordia, Galant and Tredia.
G51307
