Glow Plug Relay 1 & 2

Glow plug relay is good if there is continuity between "B" terminals when 6 volts is applied between the glow plug relay and coil terminal. See Fig 1 .

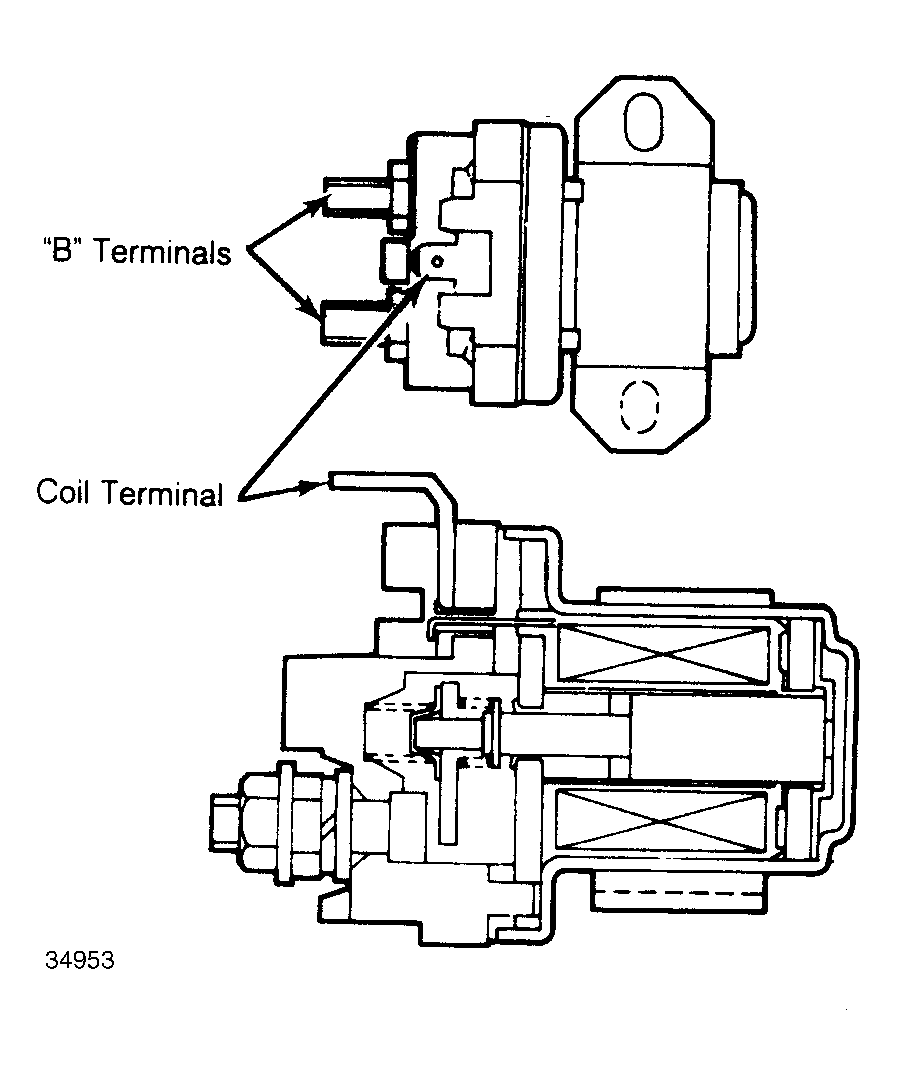

Fig 1: Testing Glow Plug Relay 1 & 2
G34953
