Air Switching Valve

When engine speed sensor detects 1500-2500 RPM, it deactivates air switching valve by opening solenoid valve. This maintains smooth vehicle operation and prevents stalling during change in engine speed.

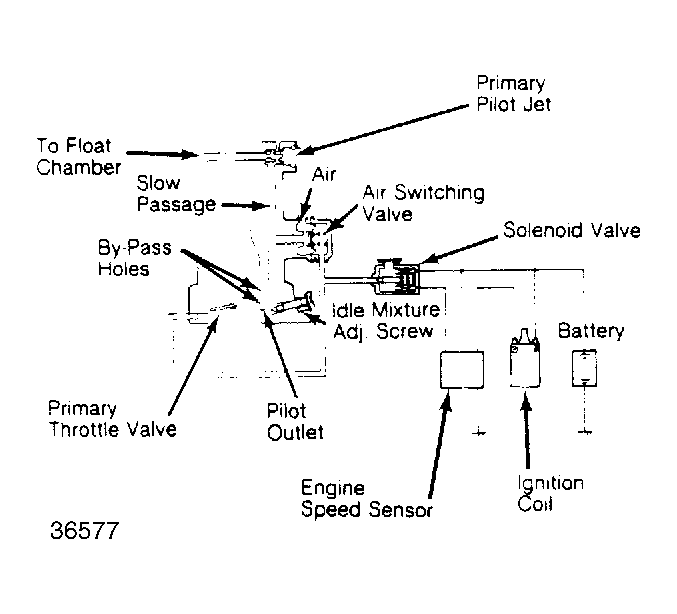

Fig 1: Air Switching Valve Note flow direction and connections.
