Coasting Air Valve

When engine speed sensor detects 1500-2500 RPM, it activates a solenoid which deactivates the coasting air valve. This maintains smooth vehicle operation and prevents stalling during change in engine speed.

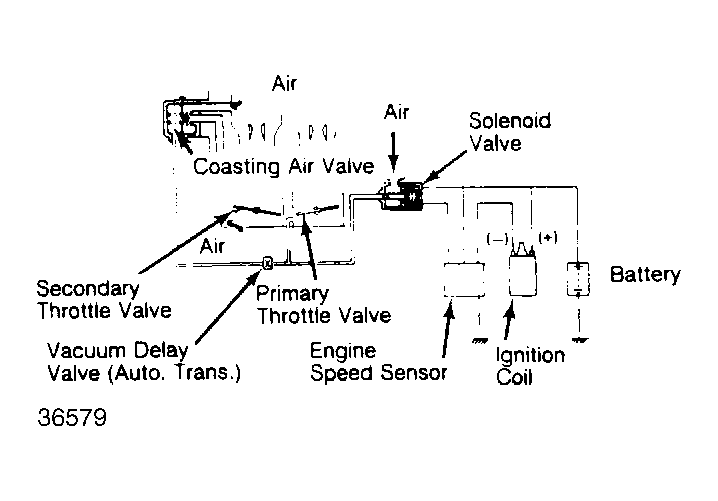

Fig 1: Coasting Air Valve Note flow direction and connections.
