Diagnostic Code-To-Component Menu

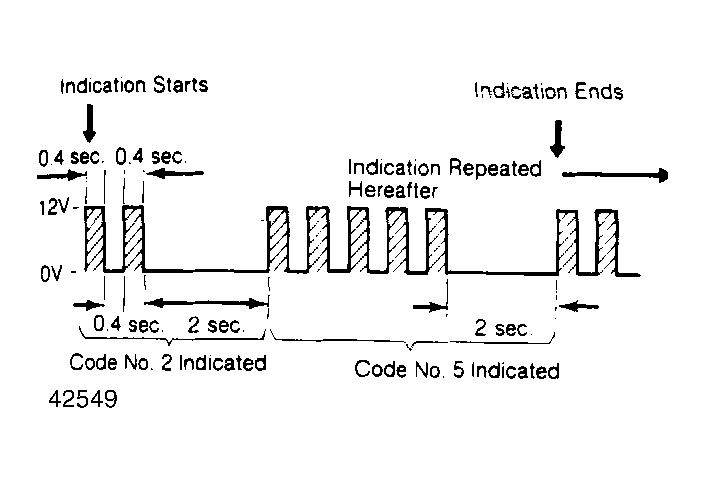

DIAGNOSTIC CODE CHART
| Code Number |
Diagnostic Item |
| 1 |
Oxygen Sensor & Computer |
| 2 |
Ignition Pulse |
| 3 |
Airflow Sensor |
| 4 |
Pressure Sensor |
| 5 |
Throttle Position Sensor |
| 6 |
ISC Motor Position Sensor |
| 7 |
Coolant Temperature Sensor |
| 8 |
(1) Vehicle Speed Sensor |
