Speed Control Switch

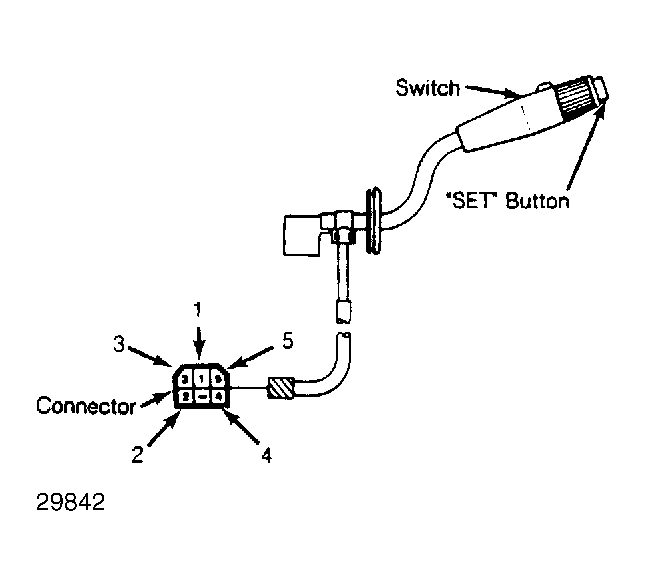

- Using an ohmmeter or test light, check for continuity between terminals of cruise control switch connector. SeeFig 1 . With switch in "SET" position, there should be continuity between terminals 1 and 3.
- With switch in "ON" position, there should be continuity between terminals 4 and 5. With switch in "RESUME" position, there should be continuity between terminals 1 and 2 and terminals 4 and 5.
