Repair and Diagnosis: Transmission: Clutches: Description

The clutch is a diaphragm spring, single disc type. On Pickups, the clutch operation is mechanically controlled by a cable assembly. All other models are hydraulically controlled.

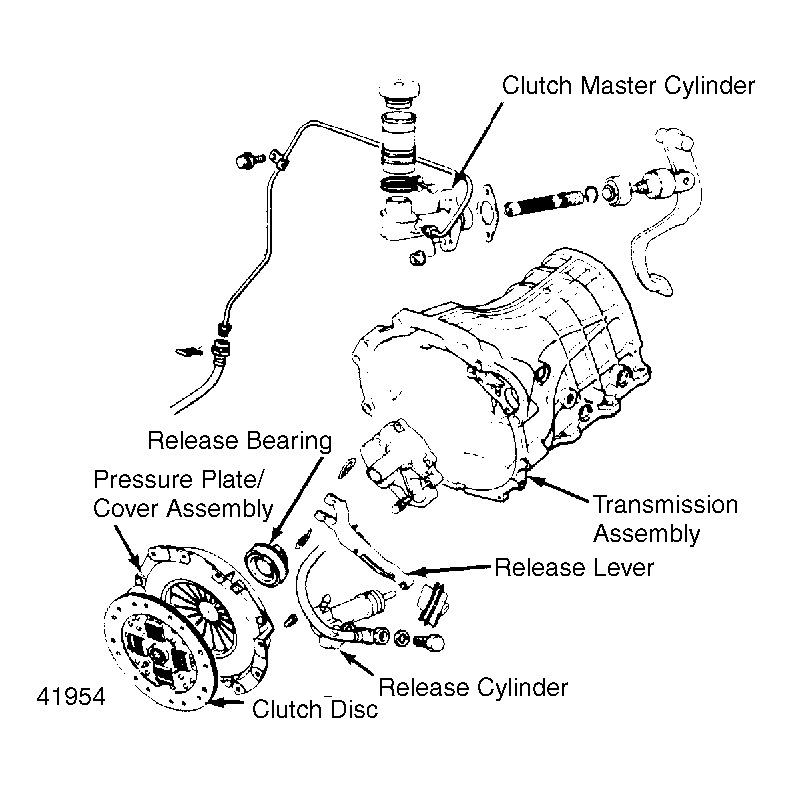

Fig 1: Exploded View of Hydraulic Clutch Assembly

Courtesy of CHRYSLER MOTORS.
