Engine Speed Sensor: Locations

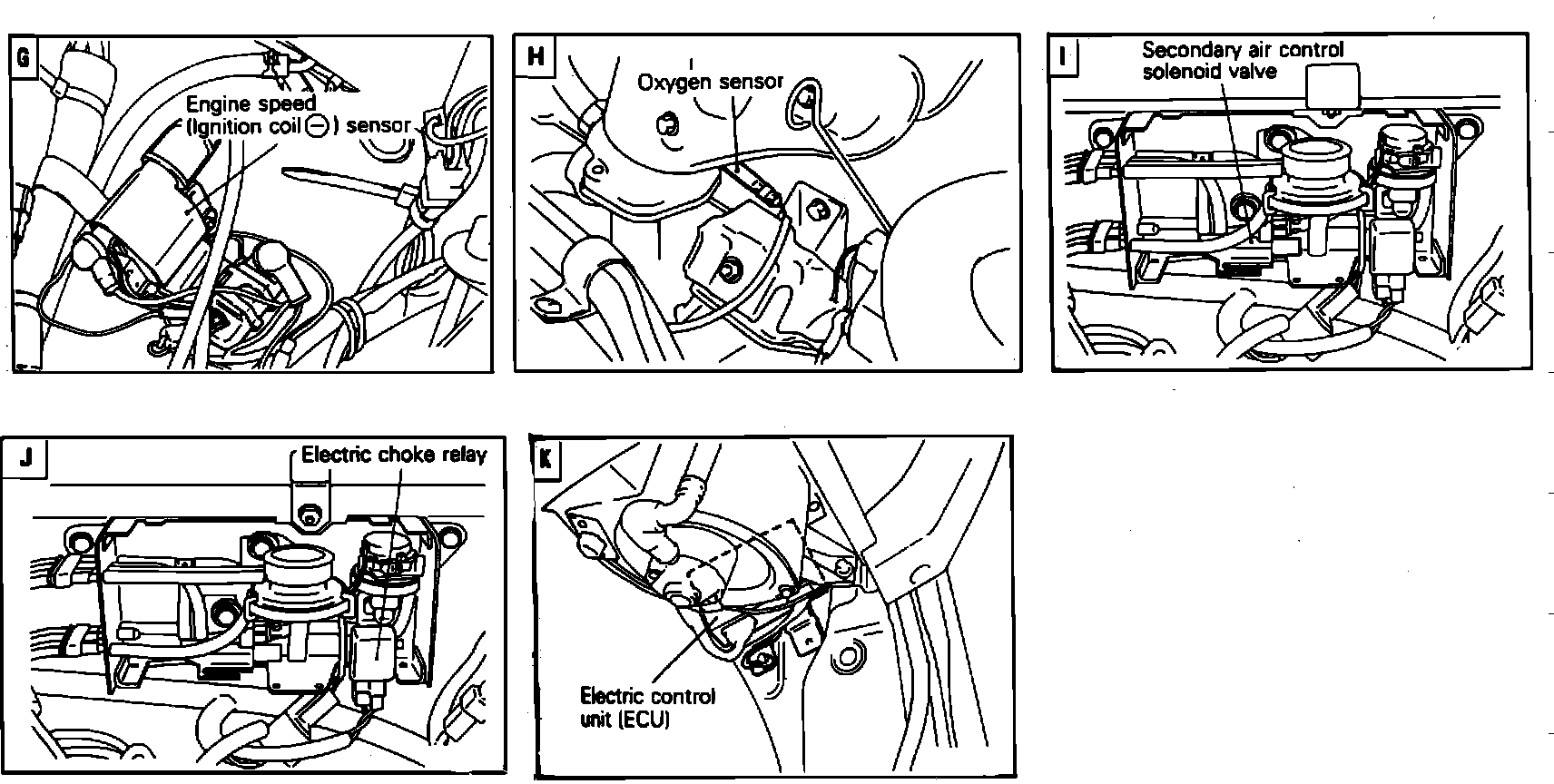

FBC System Components (Part 1 Of 2).:

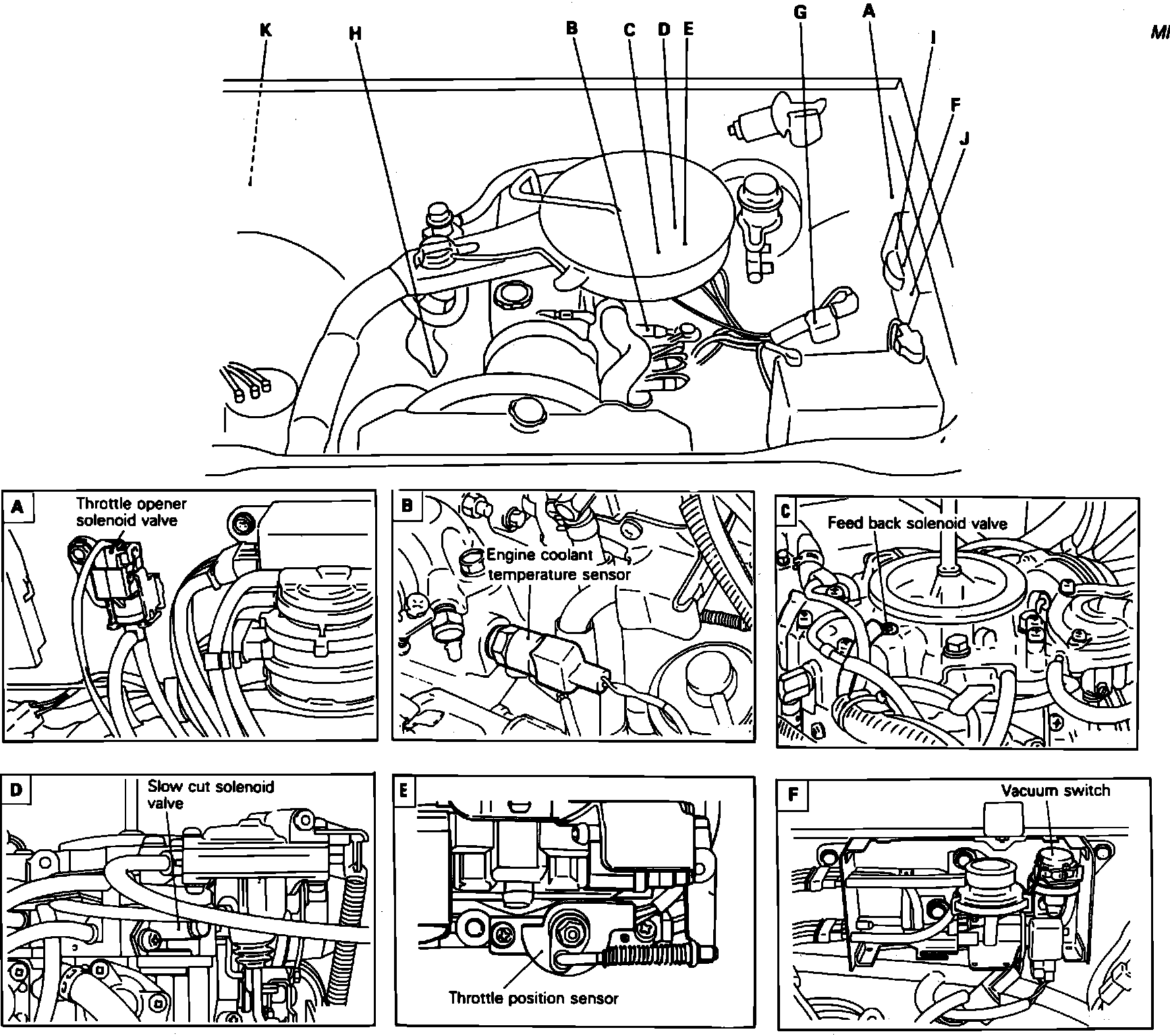

FBC System Components (Part 1 Of 2).:
LH Side Of Engine
Applicable to: Pickup w/2.0L Engine
