Vehicle Speed Sensor: Locations

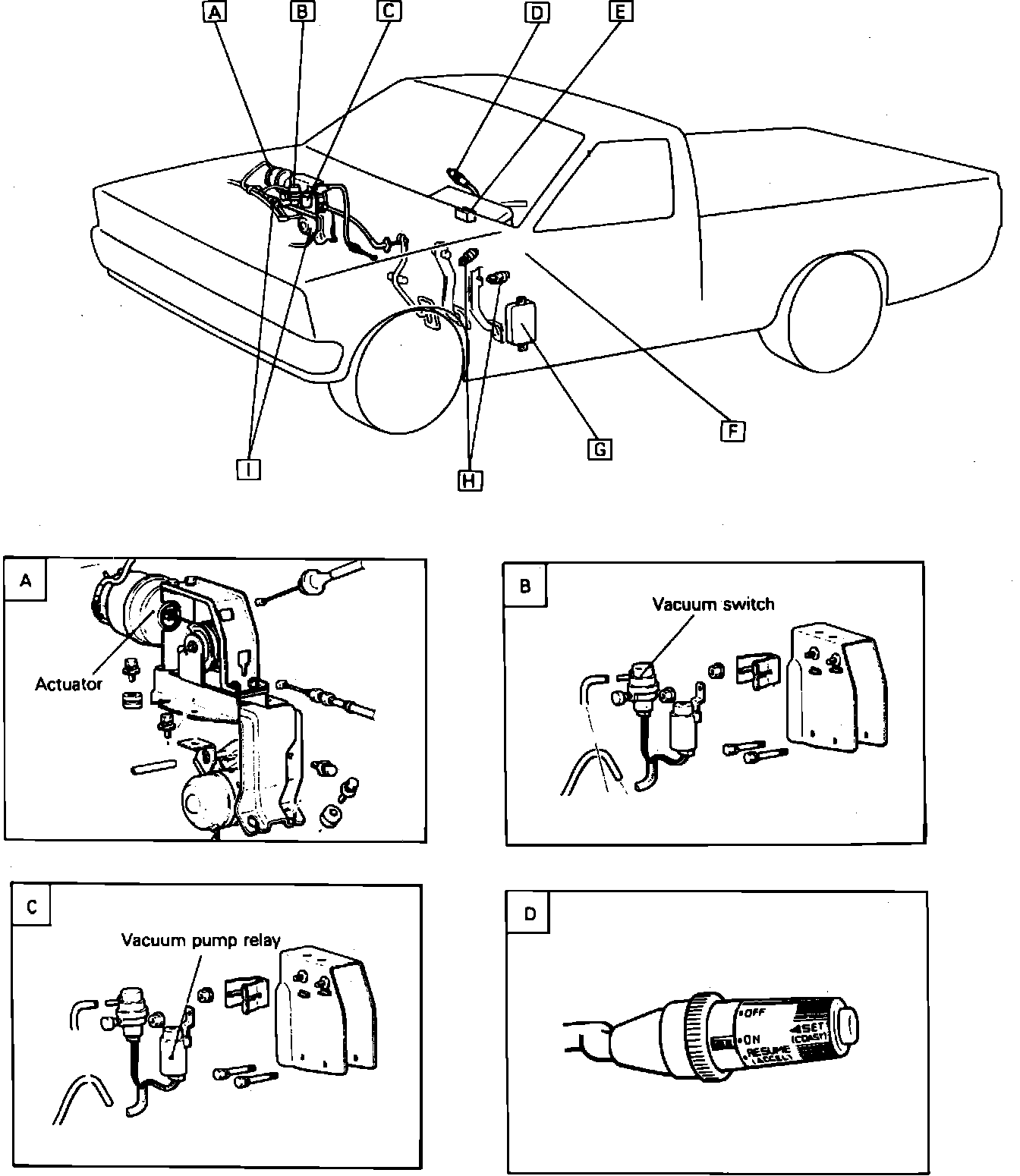

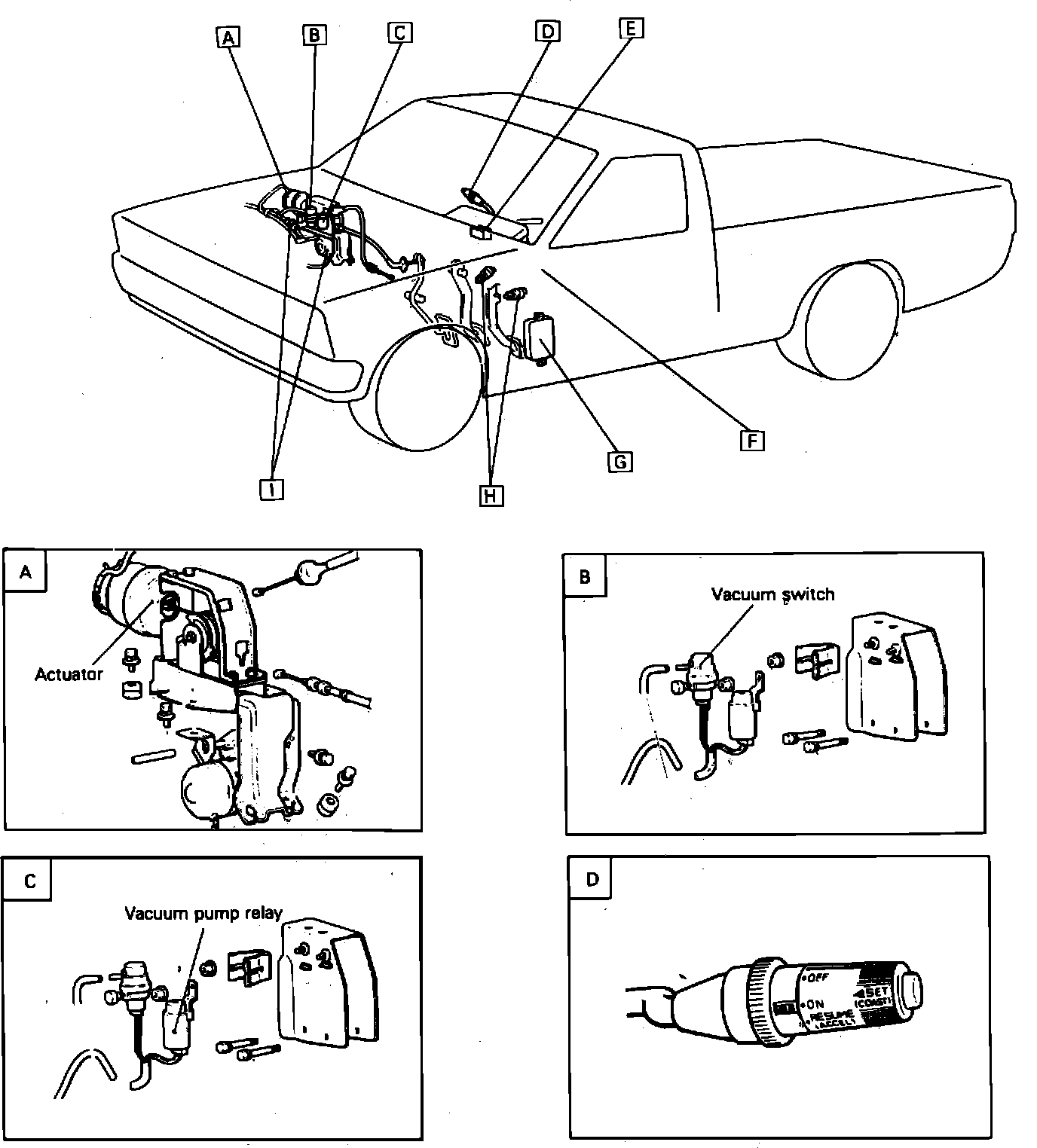

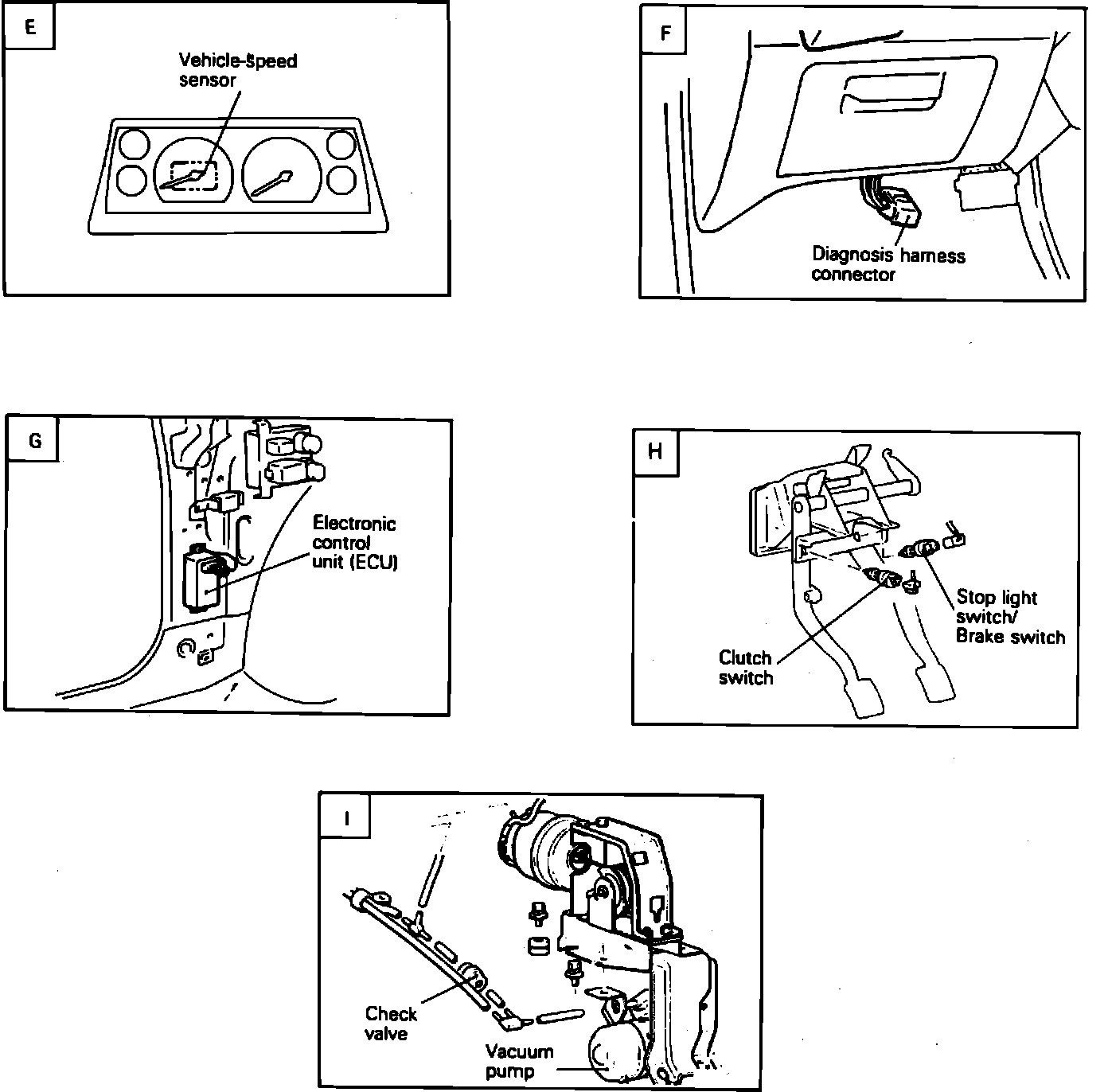

Automatic Speed Control System Components (Part 1 Of 2).:




Automatic Speed Control System Components (Part 1 Of 2).:




Behind I/P

Applicable to: Pickup

Wiring Harness (Automatic Speed Control Circuit, Part 1 Of 2).:




Wiring Harness (Automatic Speed Control Circuit, Part 1 Of 2).:




LH Side Of I/P

Applicable to: Pickup
