Base Ignition Timing Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Base Ignition Timing Specifications

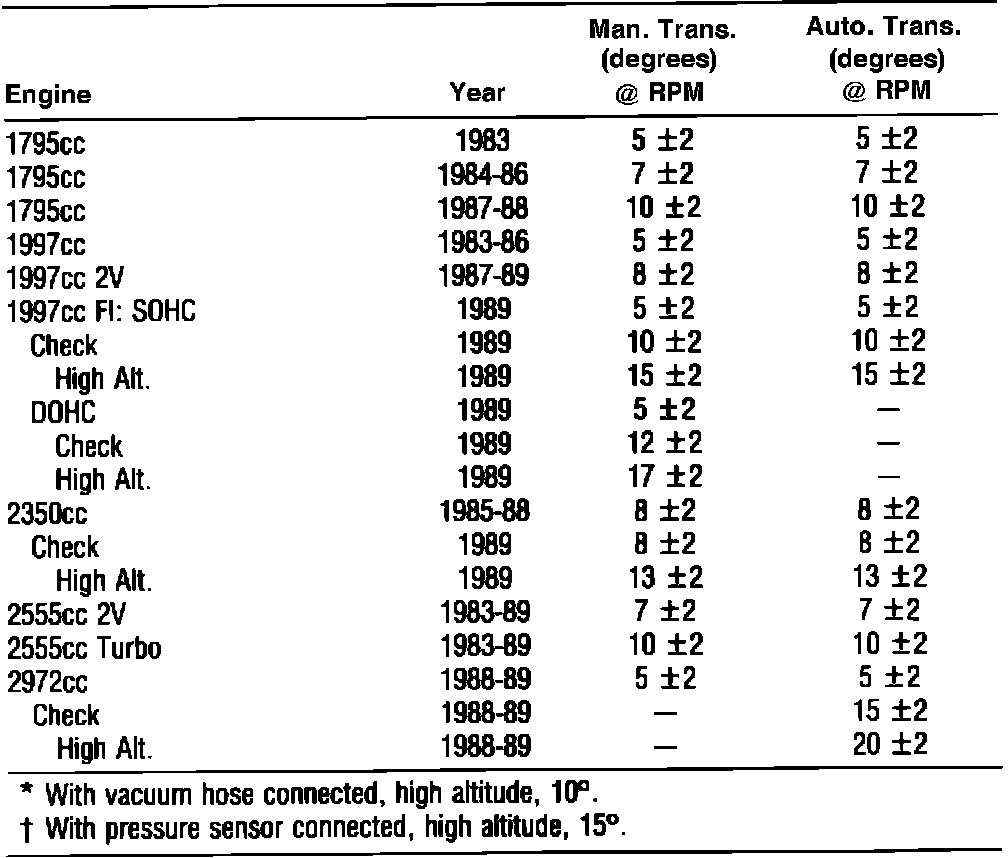

Fig. 3 Timing Specifications *** UPDATED BY TSB 8600001 AUGUST, 1990:
