Service Specifications

2WD/4WD Rear Axle Differential, Dimensions:

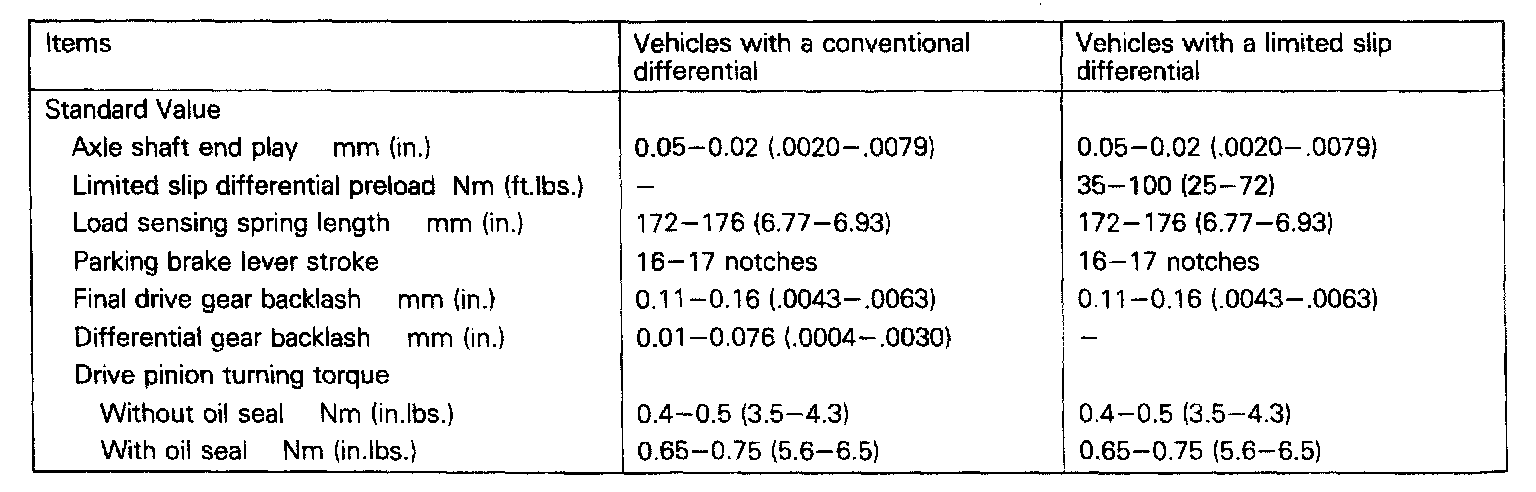

2WD/4WD Rear Axle Differential Standard Values:

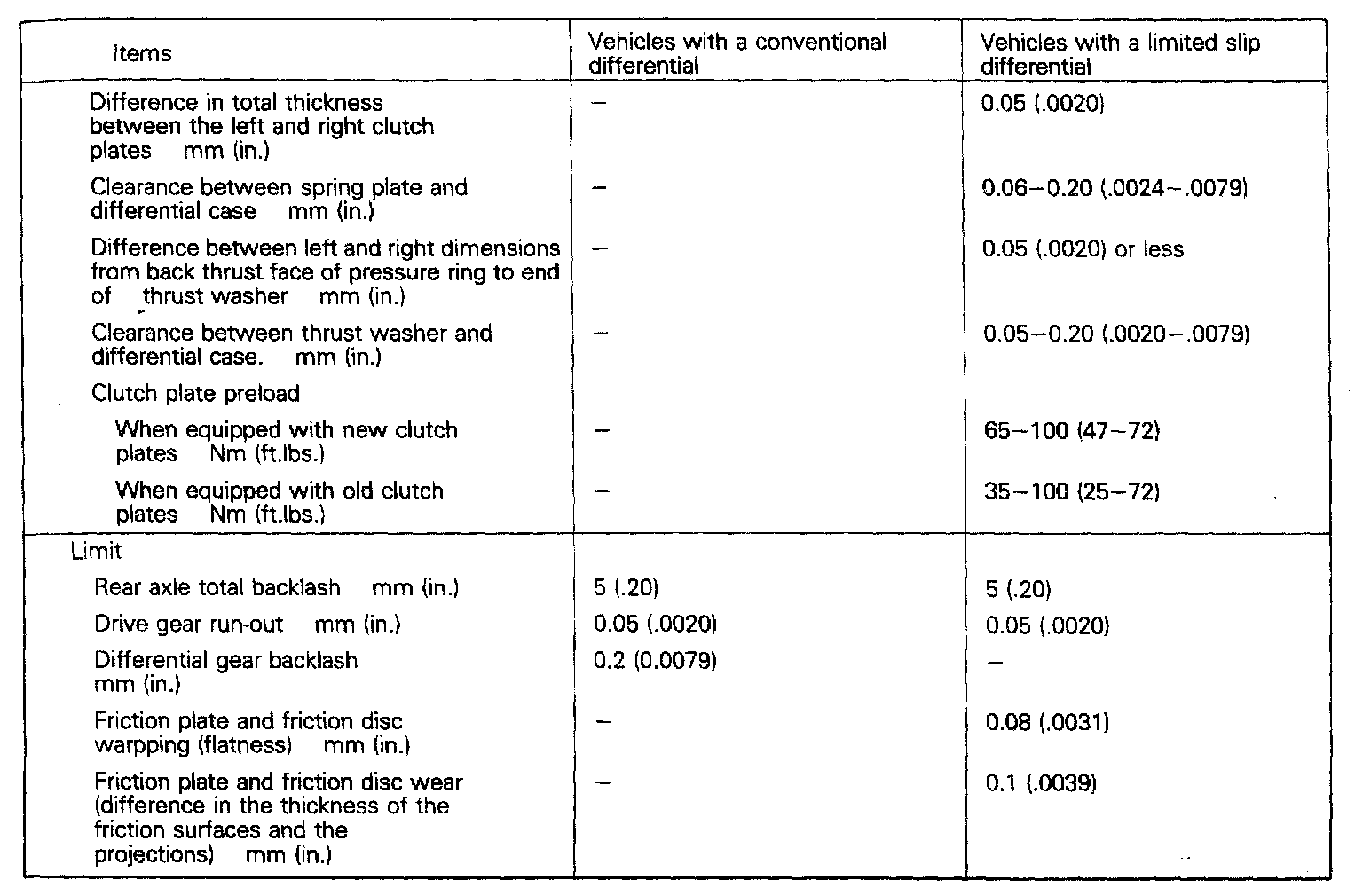

2WD/4WD Rear Axle Differential, Standard Values & Limits:
