Service Specifications

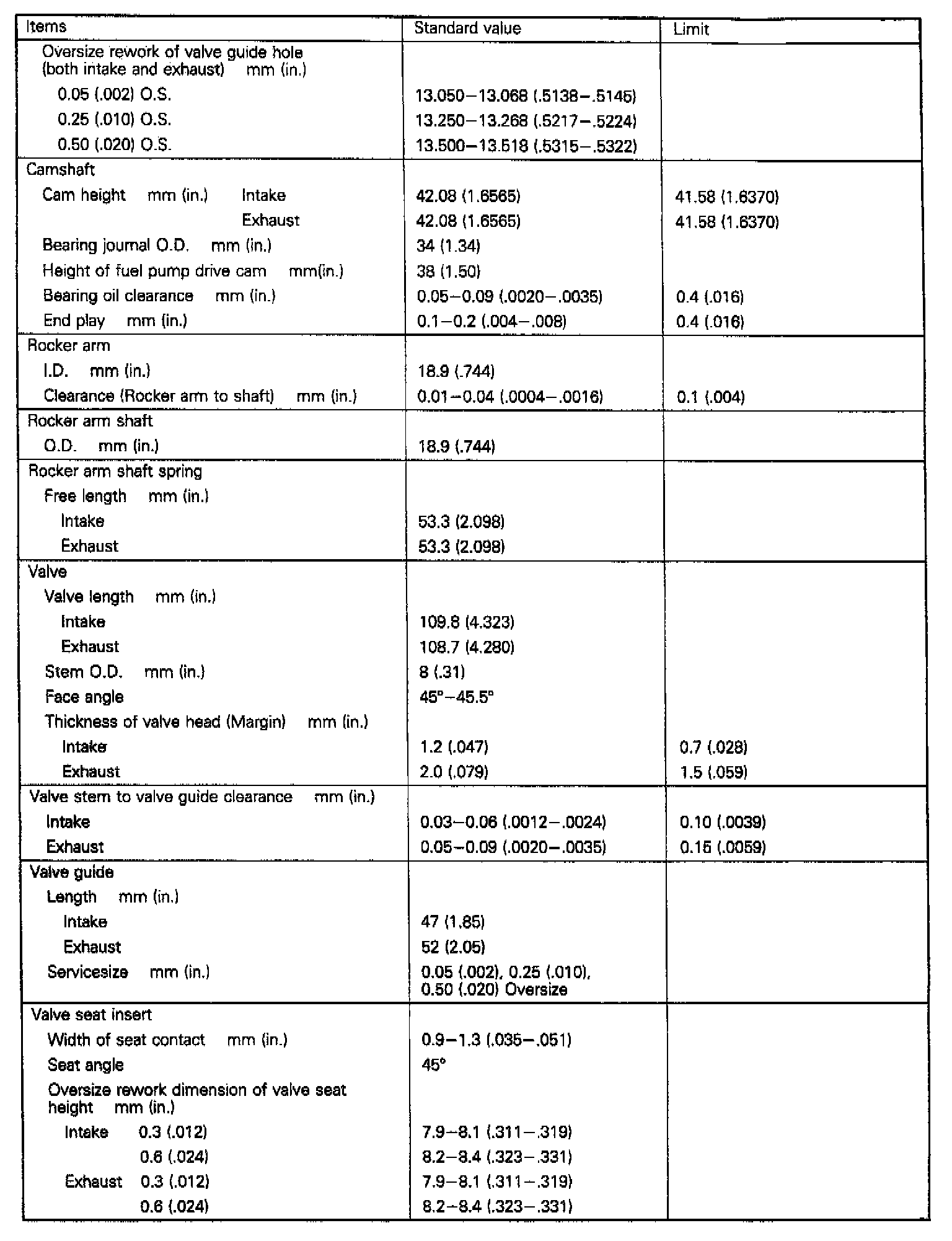

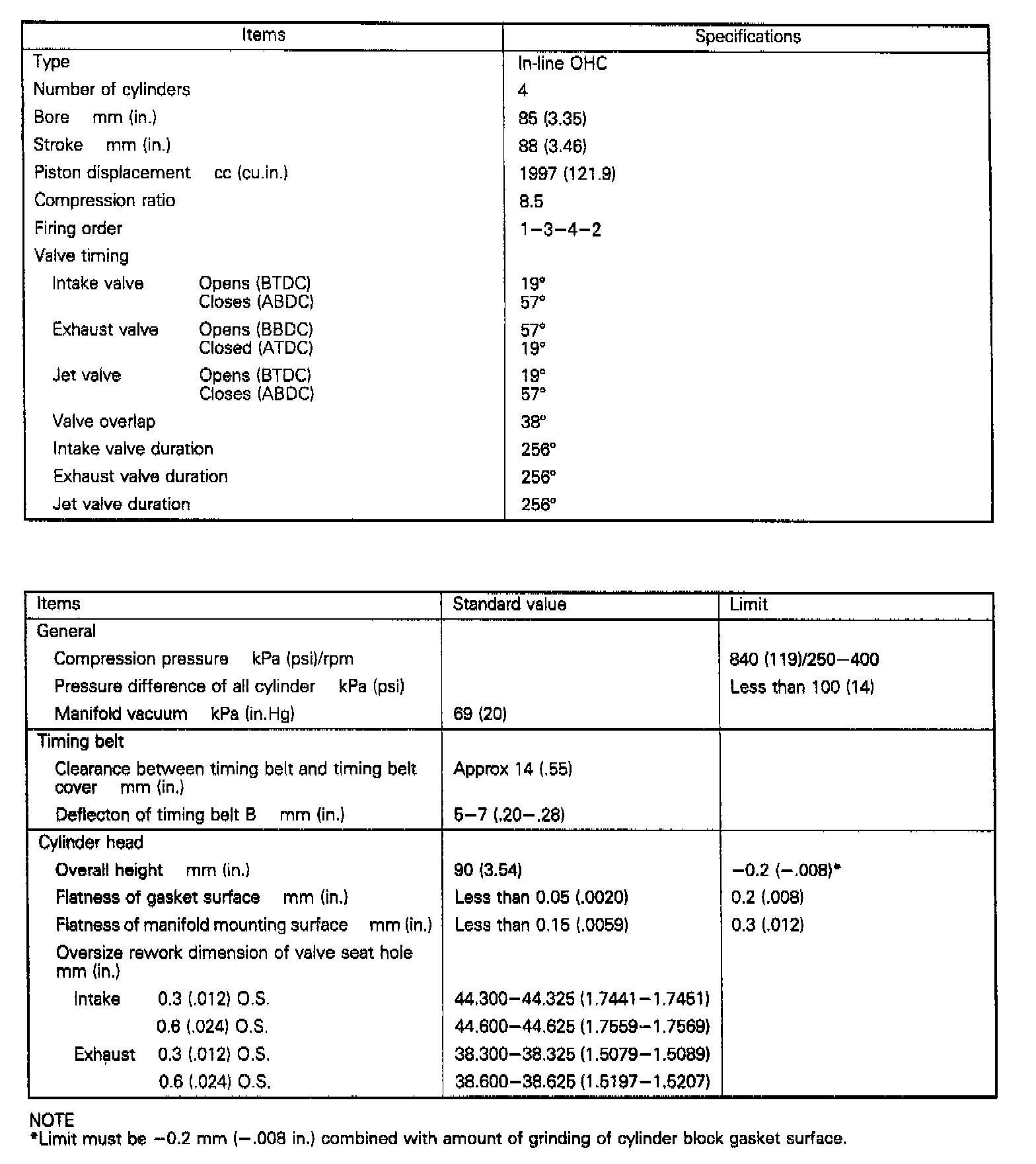

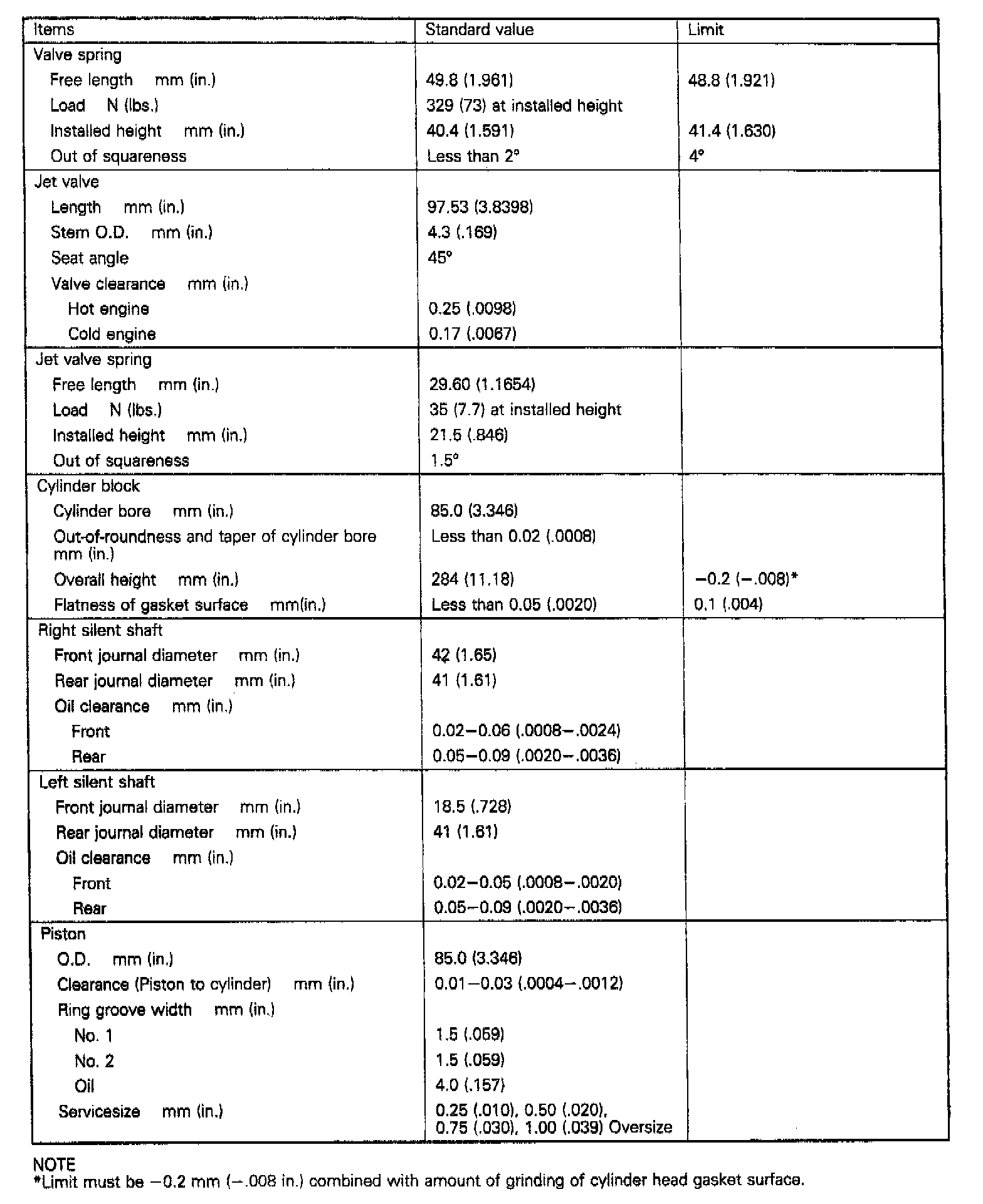

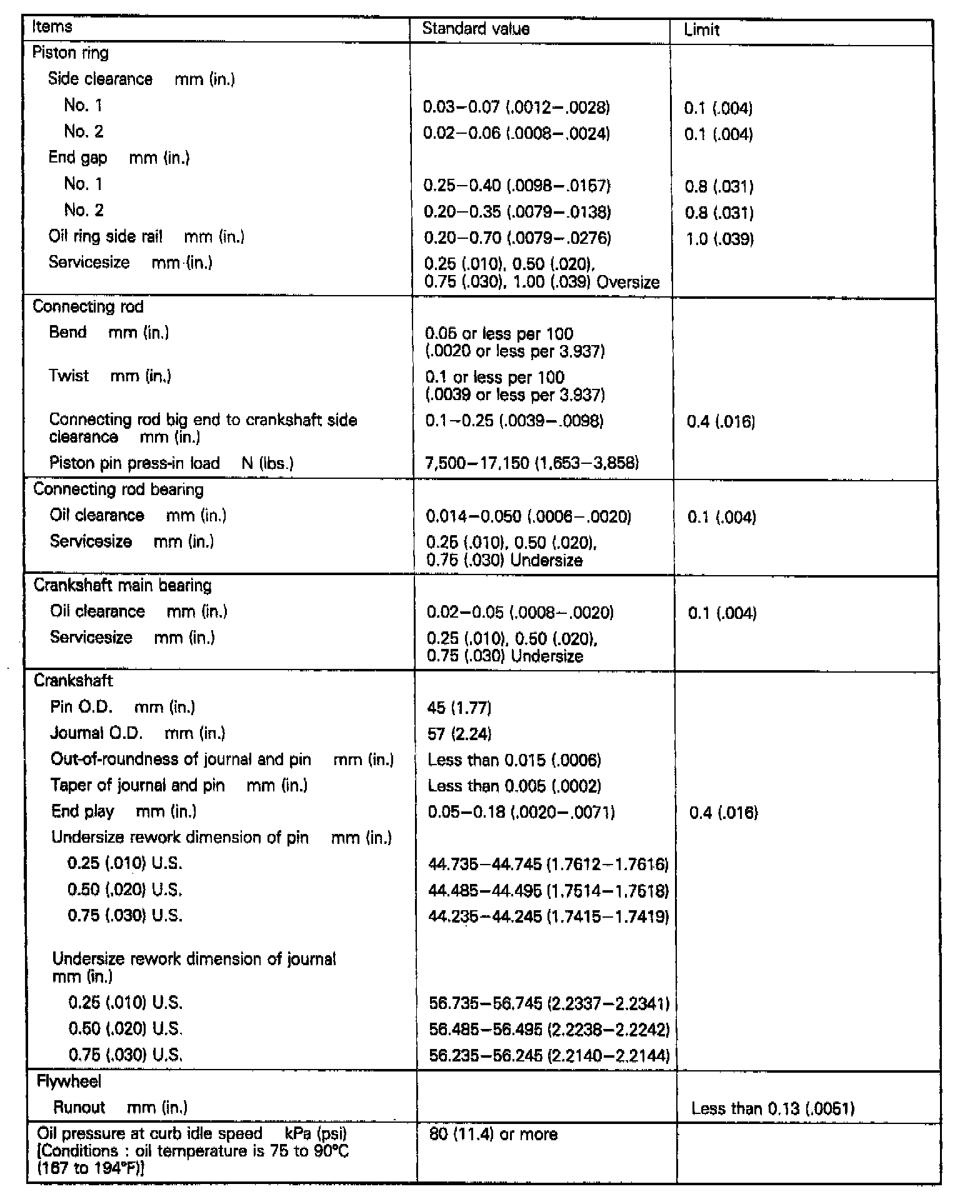

ENGINE SPECIFICATIONS

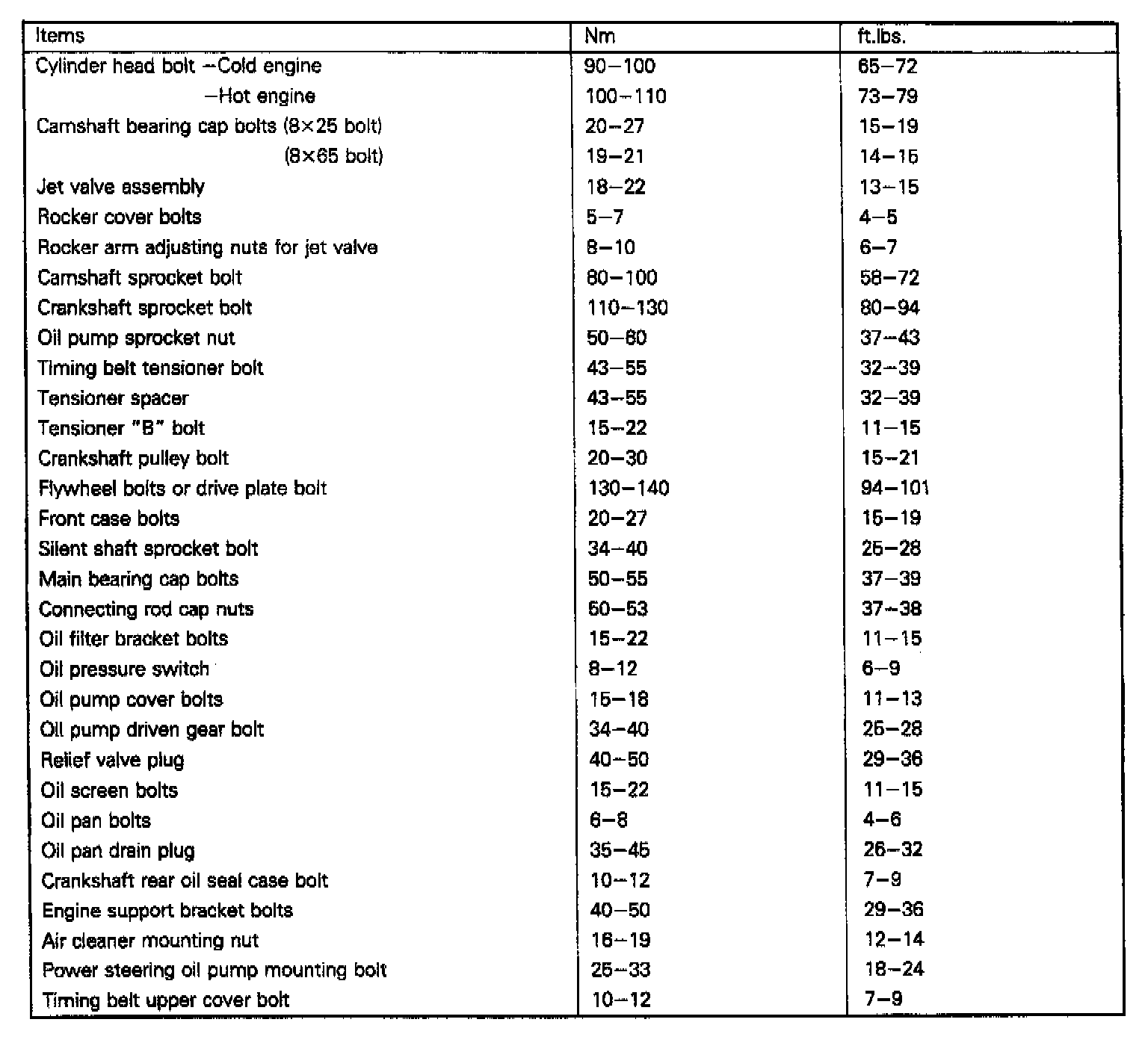

TIGHTENING SPECIFICATIONS









CYLINDER HEAD TIGHTENING SEQUENCE
