Repair Procedures

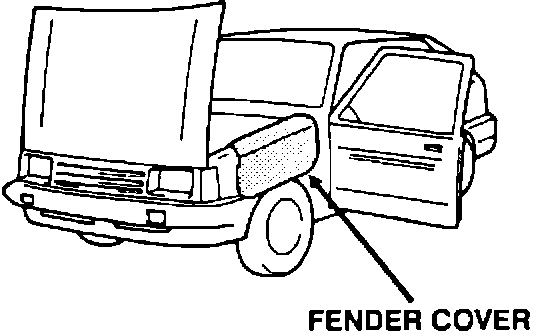

1. Open the hood and install fender covers on both fenders.

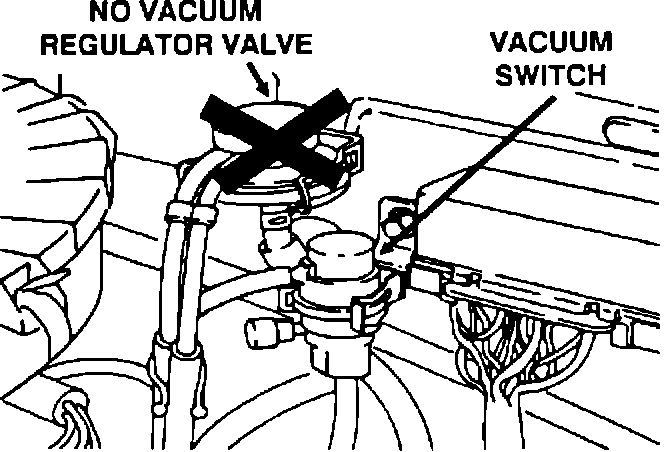

2. Look for a vacuum regulator valve on the bracket on the bulkhead at the rear of the engine compartment. If the vehicle does not have the vacuum regulator valve, go to step 3

NOTE: If the vehicle HAS a vacuum regulator valve it is not covered by this bulletin.

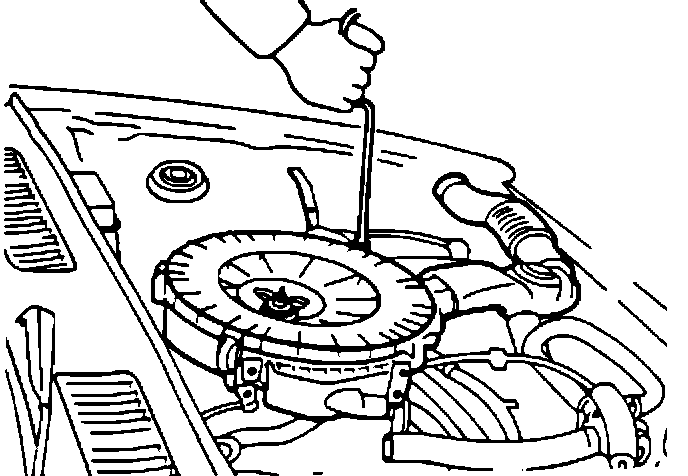

3. Disconnect vacuum hoses and electrical connector from the air cleaner. Remove air cleaner.
