Ecu Signal Circuit Check

Disconnect ECU connector. SeeFig 1 . Using an ohmmeter and voltmeter, check body side connector for resistance or voltage as required. SeeFig 2 .

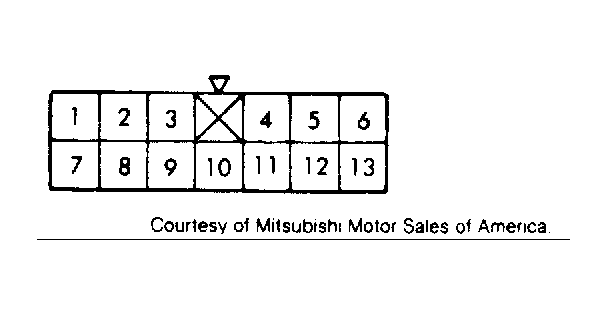

Fig 1: ECU Connector Terminal Numbers

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

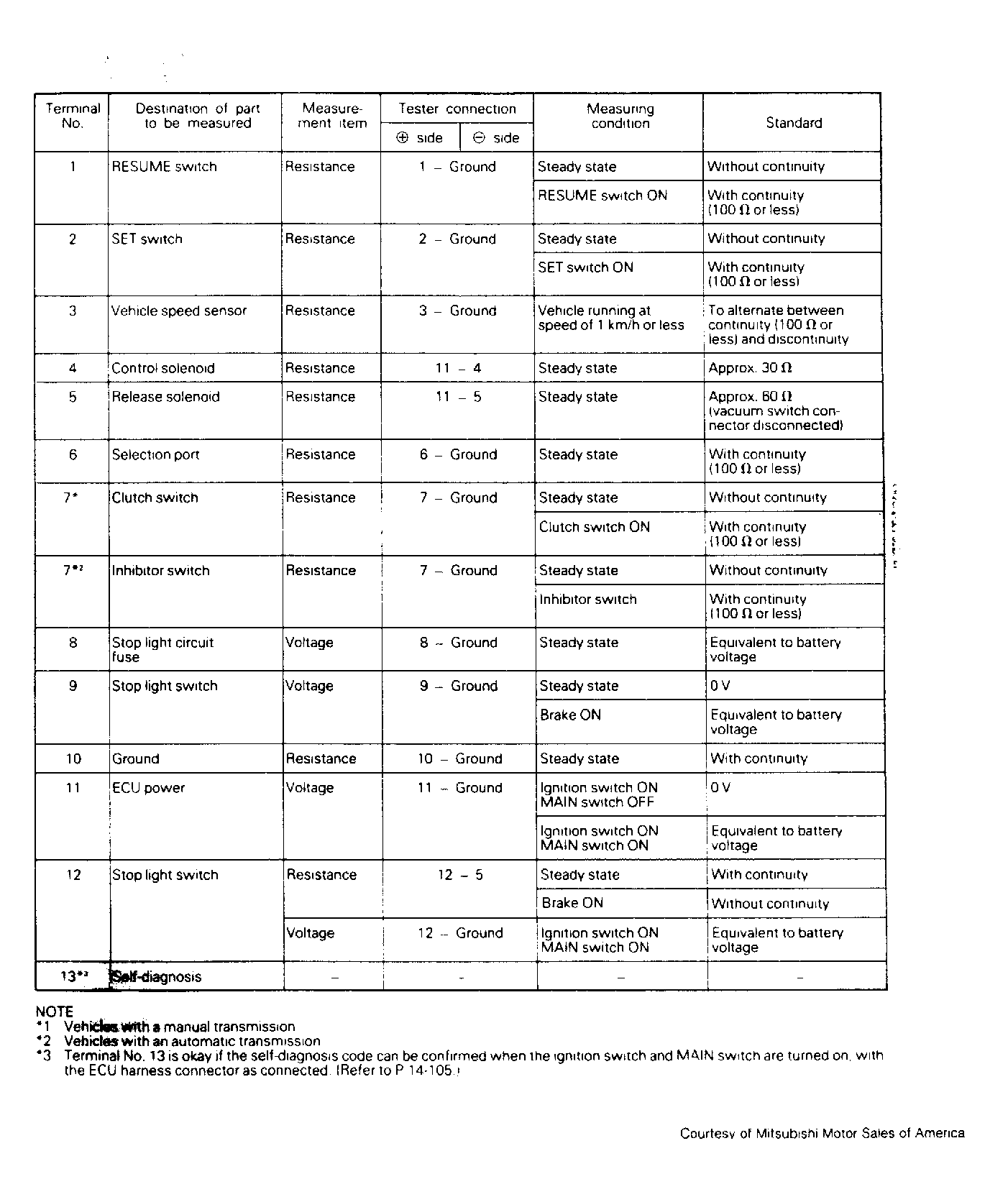

Fig 2: Electronic Control Unit (ECU) Signal Circuit Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
