Operation Check

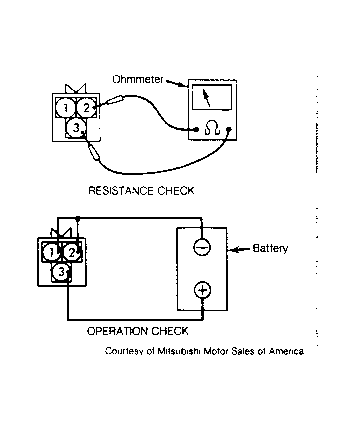

  1. Connect battery positive voltage to terminal No. 3. Connect battery negative voltage to terminals No. 1 and 2. SeeFigure . Apply vacuum to vacuum port of actuator. Accelerator cable should smoothly draw in and hold.
  2. Disconnect battery negative voltage from terminal No. 2. Accelerator cable should smoothly return to original position. Repeat procedure several times and ensure accelerator cable operates properly.
