Vacuum Hose Diagram(S)

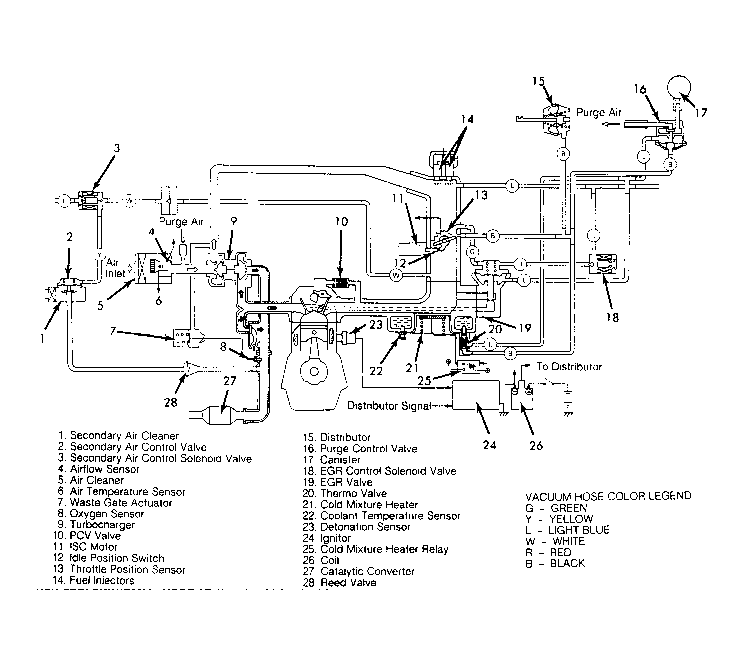

Fig 1: ECI System Vacuum Hose Diagram for Mirage
G61398

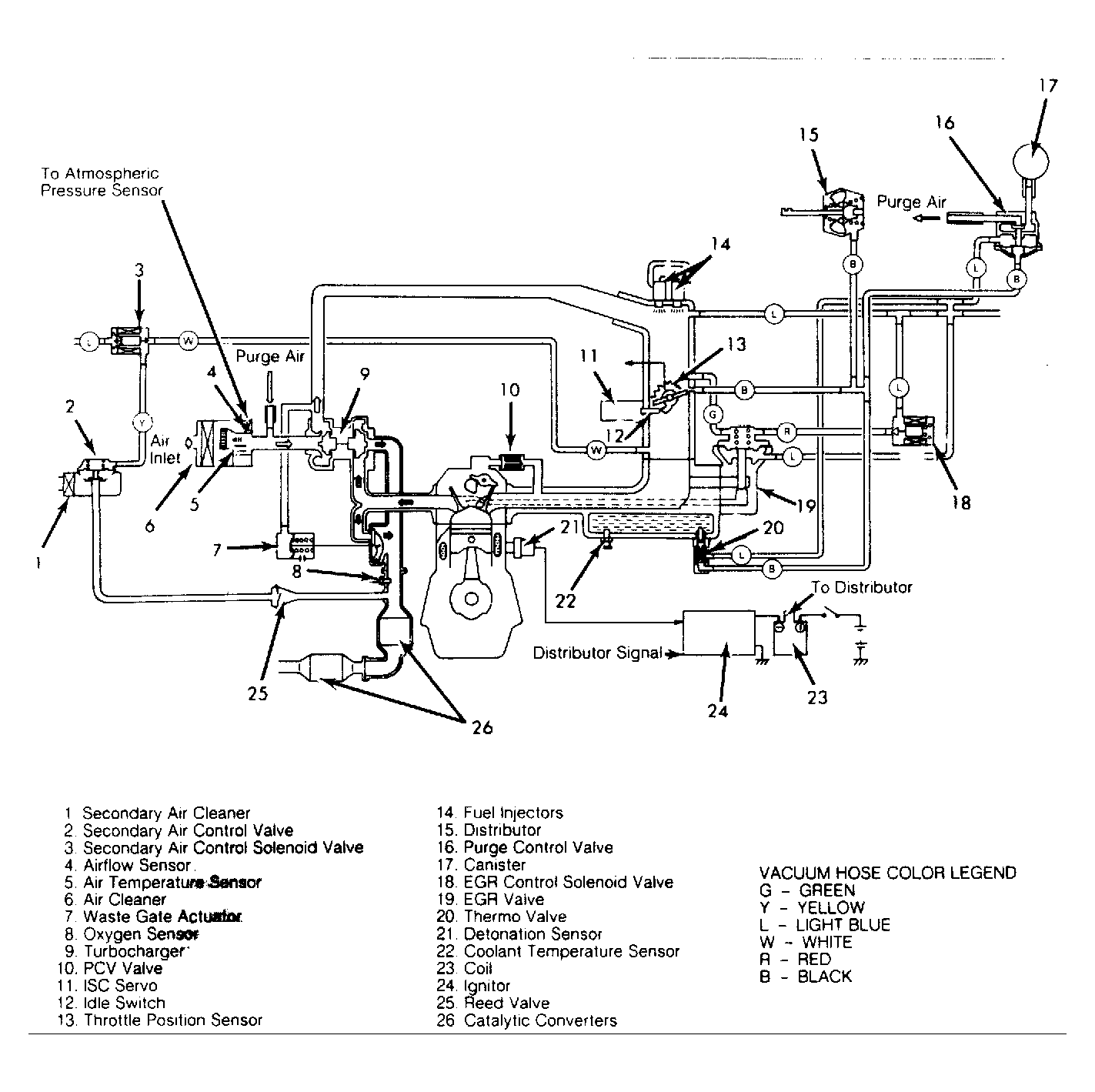

Fig 2: ECI System Vacuum Hose Diagram for Starion (W/O Intercooler)
G61399

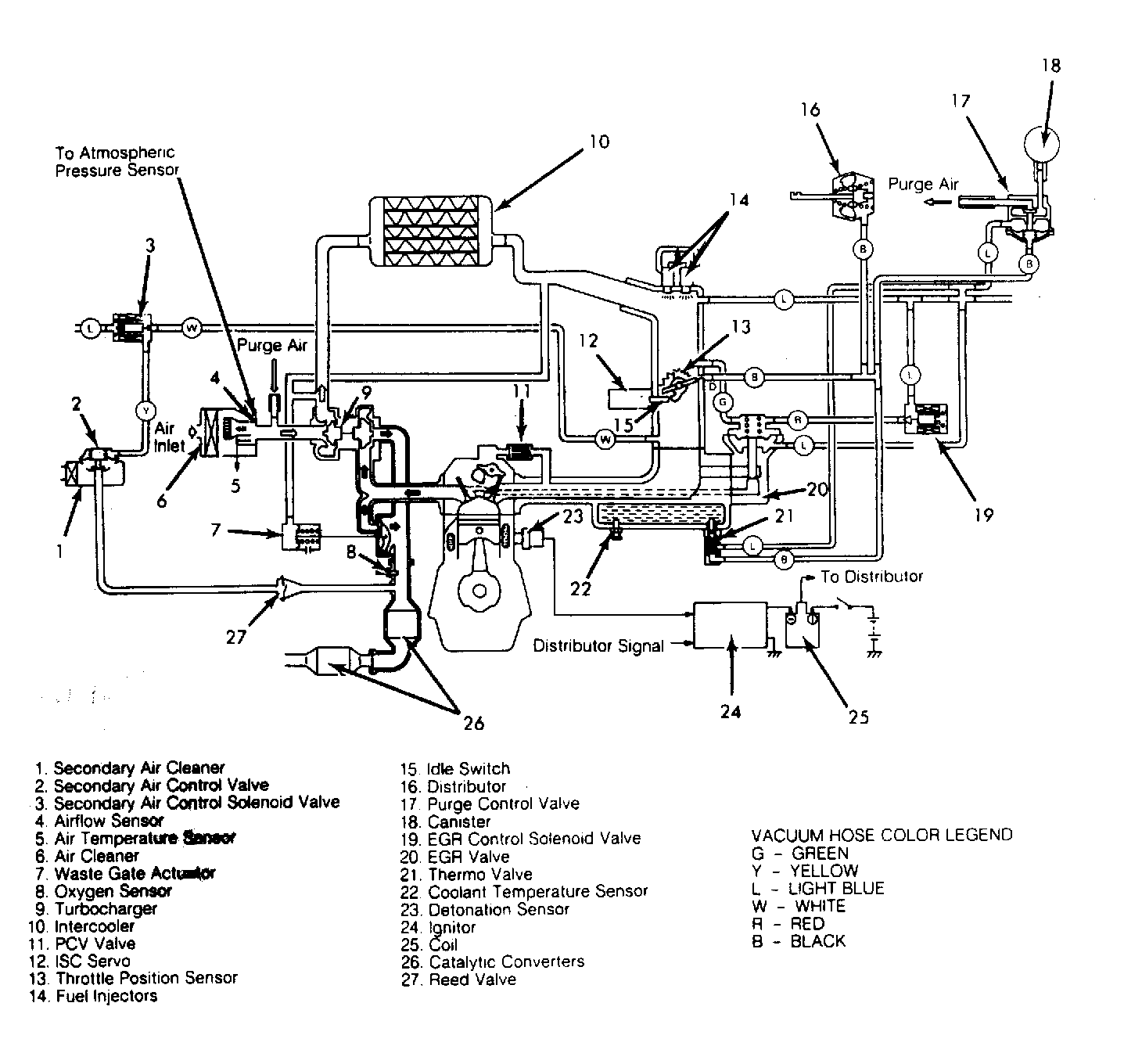

Fig 3: ECI System Vacuum Hose Diagram for Starion (With Intercooler)
G61400

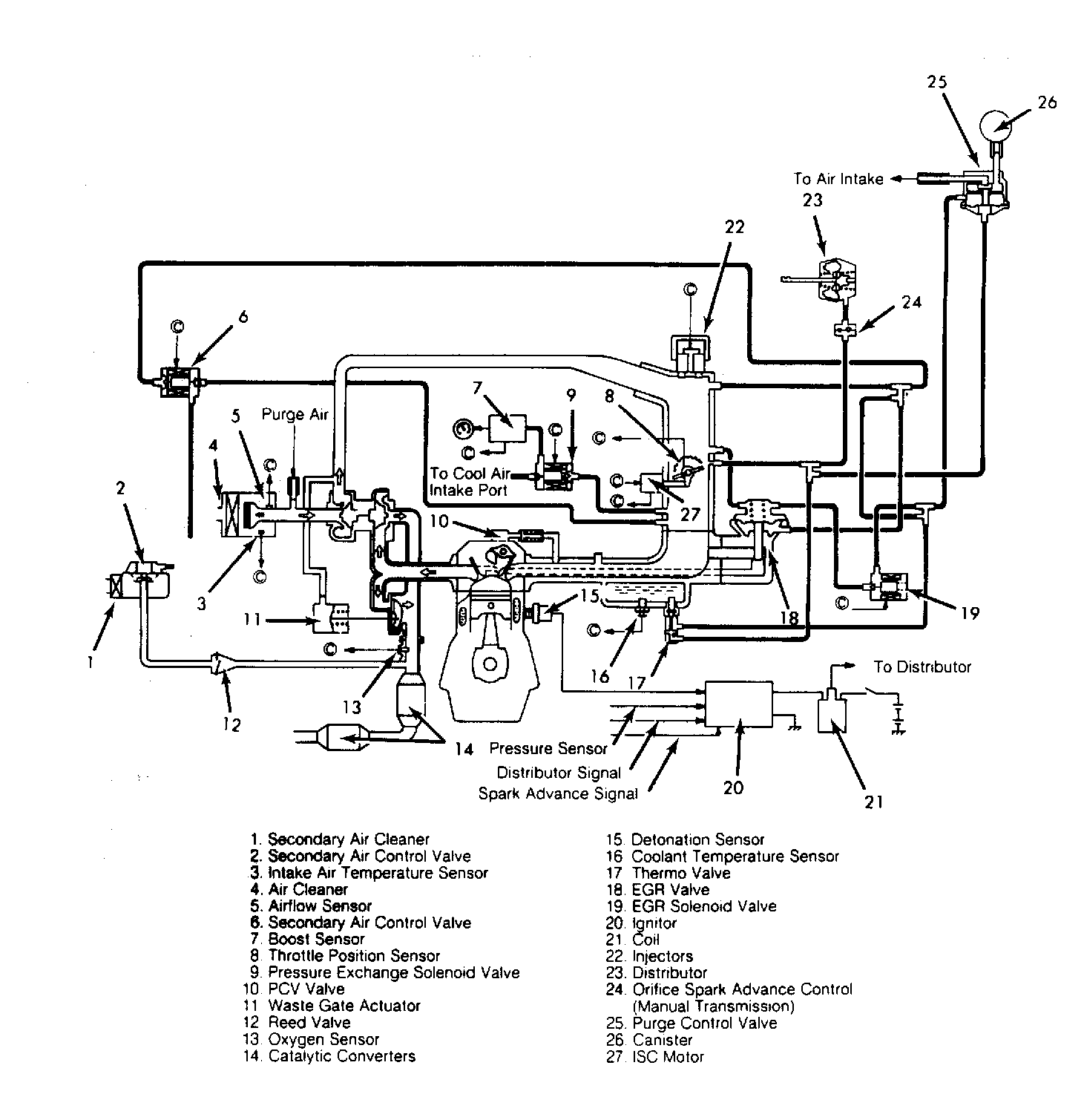

Fig 4: ECI System Vacuum Hose Diagram for Cordia & Tredia
G61401
