INSPECTION PROCEDURE 8: The rain sensitive AUTO wiper function works even though there is no rainfall < Vehicles with lighting control sensor >: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

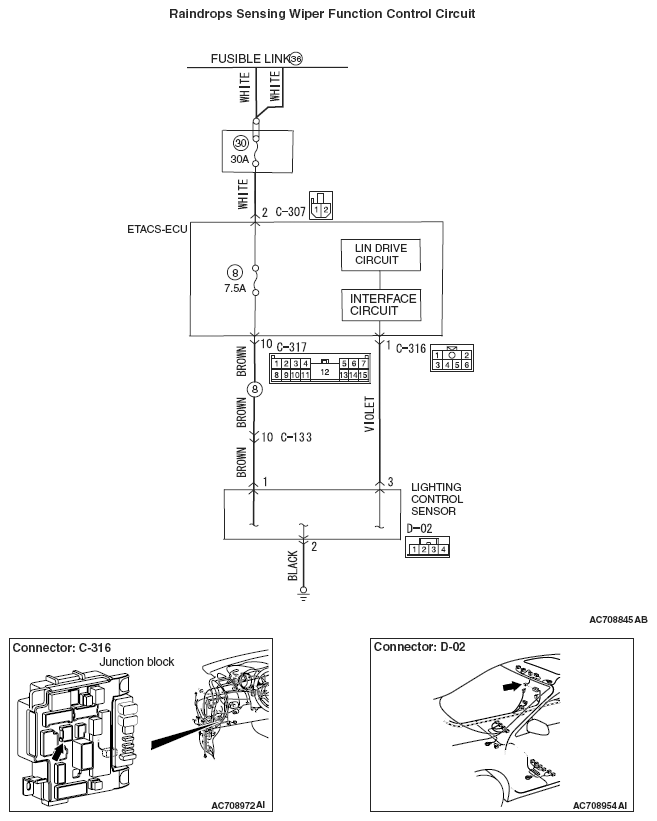

Fig 1: Raindrops Sensing Wiper Function Control Circuit Diagram
G05396008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
