WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If DTC B2409 is set, diagnose the CAN bus lines.
Whenever the steering lock unit is replaced, ensure that the communication circuit is normal.

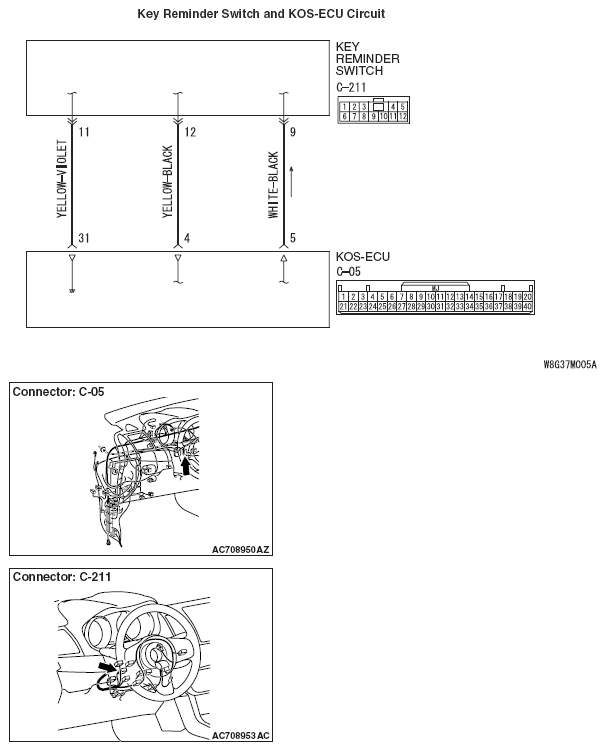

Fig 1: Key Reminder Switch And KOS-ECU - Circuit Diagram
