>> A << Battery Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Install a new battery with the positive side facing toward the lower cover.

Replacement battery: Coin-type lithium battery CR2032

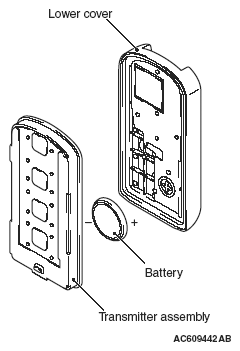

Fig 1: Identifying Battery Installation Position
G05384384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
