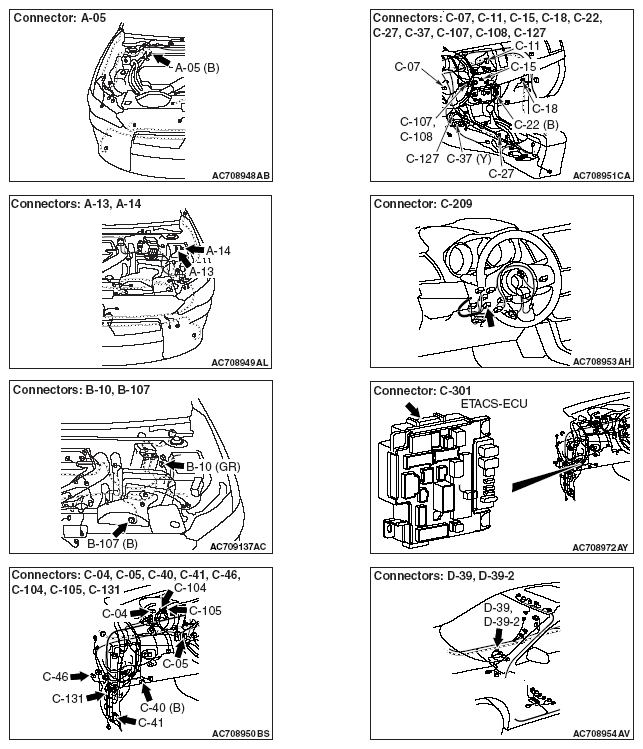

CAN-RELATED CONNECTOR REFERENCE
| Connector No. | Connector name |
|---|---|
| A-05 | ASC-ECU |
| A-13 | Intermediate connector (Front wiring harness and control wiring harness combination) < TC-SST > |
| A-14 | Joint connector (CAN4) < TC-SST > |
| B-10 | ECM |
| B-107 | Transaxle assembly < TC-SST > |
| C-04 | Combination meter |
| C-05 | KOS-ECU < Vehicles with KOS > |
| C-07 | Wireless control module < Vehicles with WCM > |
| C-11 | Hands free module |
| C-15 | CAN box unit < Vehicles with MMCS > |
| C-18 | Satellite radio tuner |
| C-22 | A/C-ECU |
| C-27 | Shift lever < TC-SST > |
| C-37 | SRS-ECU |
| C-40 | Data link connector |
| C-41 | Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-46 | S-AWC-ECU |
| C-104 | Joint connector (CAN2) |
| C-105 | Joint connector (CAN1) |
| C-107 | Radio and CD player < Vehicles without MMCS > |
| C-108 | Intermediate connector (Instrument panel wiring harness and multivision display wiring harness combination) < Vehicles with MMCS > |
| C-127 | Joint connector (CAN3) |
| C-131 | Intermediate connector (Instrument panel wiring harness and front wiring harness combination) |
| C-209 | Steering wheel sensor |
| C-301 | ETACS-ECU |
| D-39 | Front seat assembly (LH) |
| D-39-2 | Occupant classification-ECU |
