Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

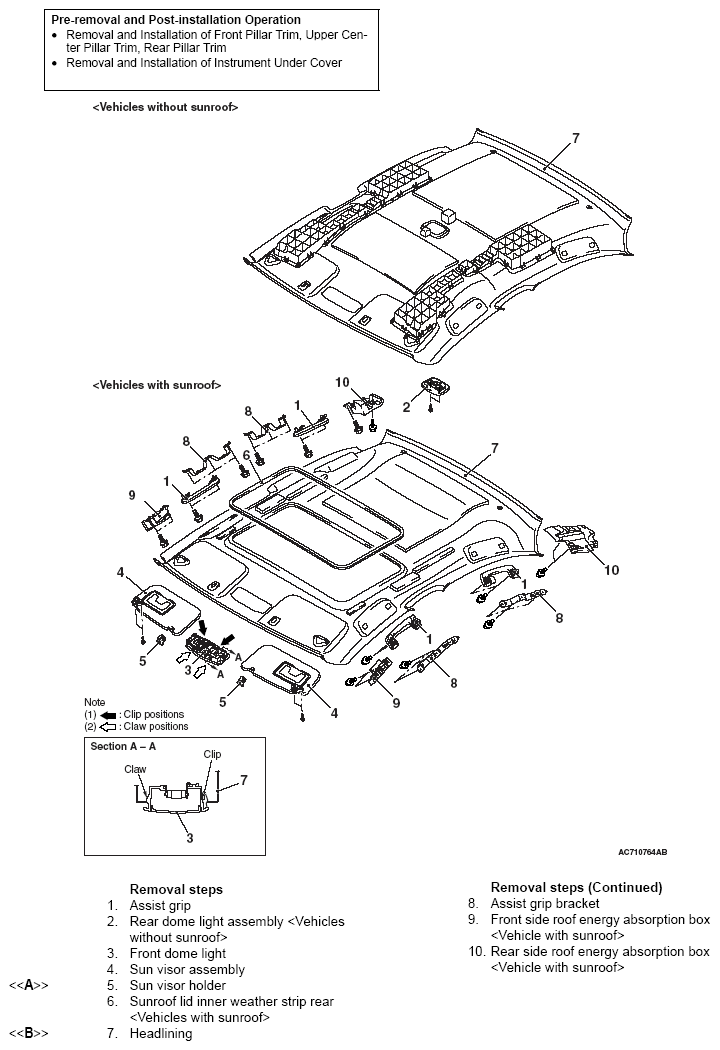

Fig 1: Identifying Headlining Remove/Install Components
G05396061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
