Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the articles of "Removal and Installation" and "Disassembly and Assembly".

BOLTS AND SCREWS SPECIFICATION

Name	Symbol	Size (D x L) mm	Color	Shape
Tapping screw	a	5 x 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	c	5 x 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	d	5 x 20	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	e	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
D: Thread diameter, L: Effective thread length

CAUTION:

Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

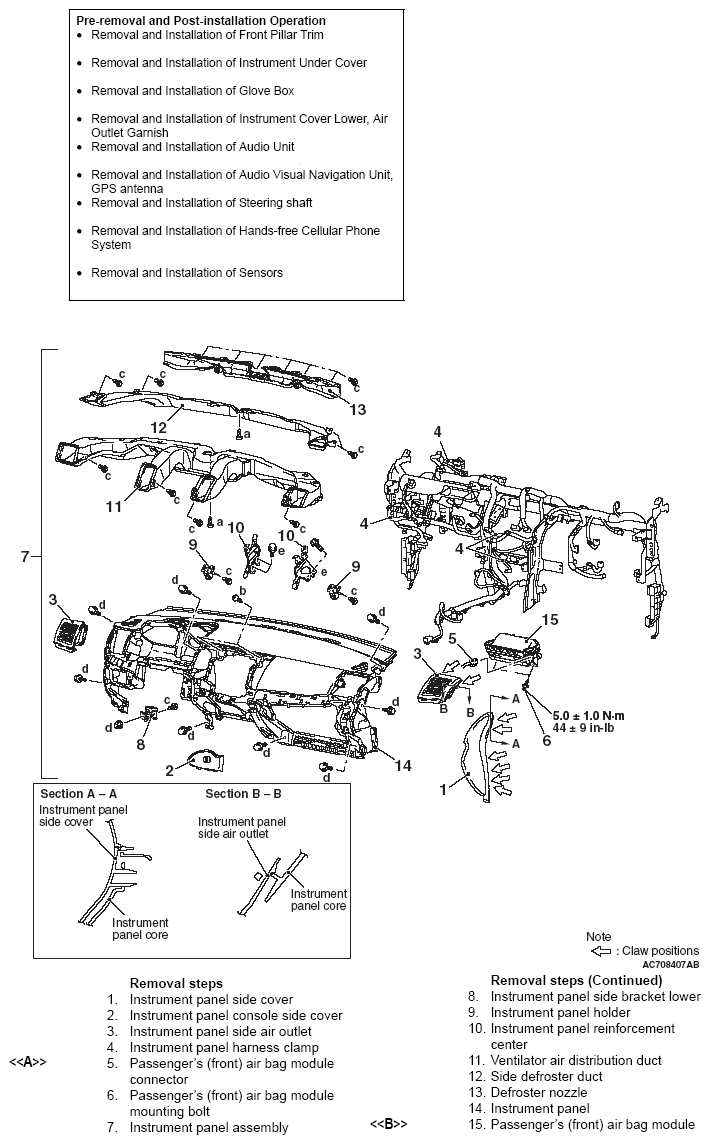

Fig 1: Instrument Panel Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
