Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

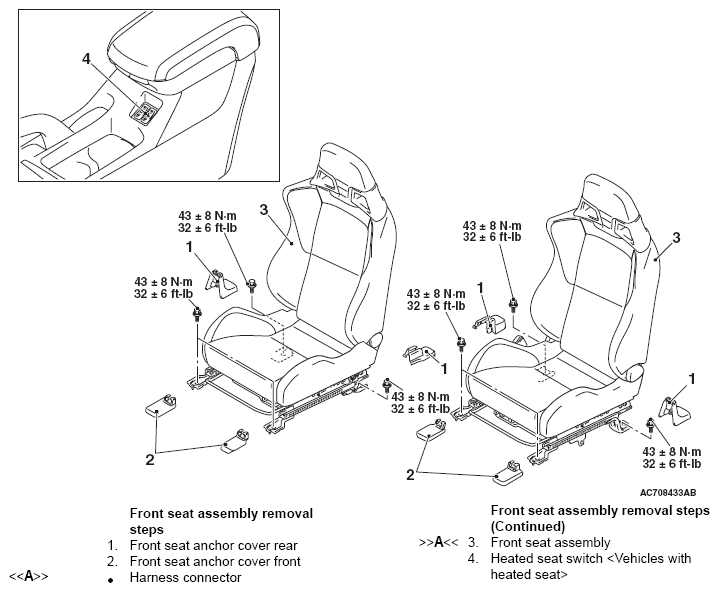

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G05396065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
