Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

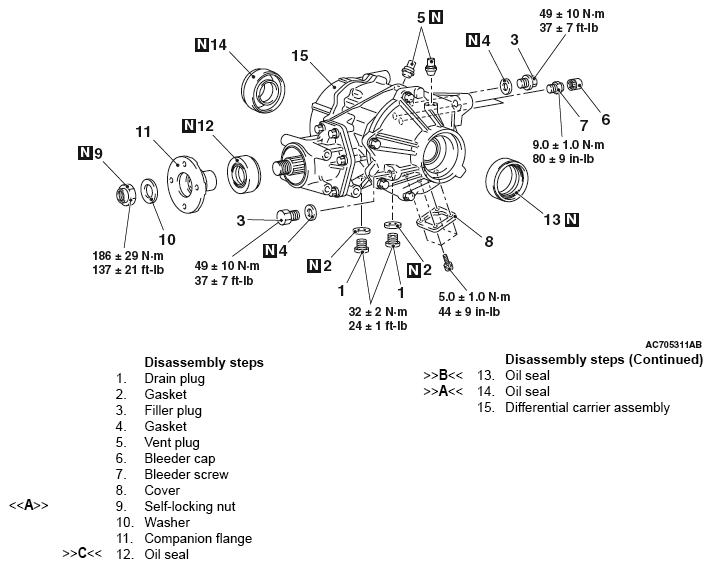

Fig 1: Differential Carrier Assembly Disassembled View With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990727: Oil Seal Installer
MB990850: End Yoke Holder
MB990938: Installer Bar
MB991245: Lower Arm Bush Ring
MB991551: Bearing Outer Race Installer
