Special Tool

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION

Tool Tool number and name Supersession Application

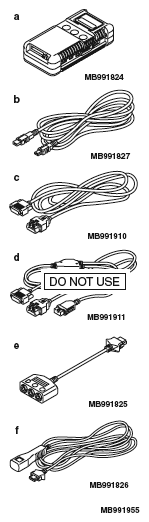

G05394375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V. C.I.)
  2. M.U.T.-III USB Cable
  3. M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  4. M.U.T.-III Main Harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III Adapter Harness
  7. M.U.T.-III Trigger Harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V. C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking the AYC (Diagnosis display, service data display and calibration by using the scan tool)
G05394376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998330
Oil pressure gauge		 - Hydraulic pressure measurement
G05393869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991705
Hose adapter		 -
G05394378Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991551
Bearing outer race installer		 - Press-fitting of the oil seal (AYC differential mechanism part: use together with MB990938)
G05394379Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991245
Lower arm bush ring		 - Press-fitting of the oil seal (AYC differential torque transfer mechanism part)
G05093329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990767
Front hub and flange yoke holder		 MB990767-01 Hub fixing
G05376061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991618
Hub bolt remover		 General service tool Removal of the hub bolt
G05376063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990241
  1. MB990242
  2. MB990244

Axle shaft puller
  1. Puller shaft
  2. Puller bar
 MB990241-01 or General service tool
  • Removal of the drive shaft
  • Removal of the rear hub assembly
G05102601Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991354
Puller body		 General service tool
G05384138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990211
Slide hammer		 General service tool Rear hub assembly removal
G05376066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB991017
  2. MB990998
  3. MB991000

A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Provisional holding of the wheel bearing
  • Hub rotation starting torque measurement
  • Measurement of wheel bearing end play
    NOTE: MB991000, which belongs to MB990998, should be used as a spacer.
G05376062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991897 or MB992011
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Self locking nut removal
NOTE: Steering linkage puller (MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.
G05394387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990850
End yoke holder		 - Companion flange fixing
G04872136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990925
  1. MB990926 - MB990937
  2. MB990938
  3. MB990939

Bearing and oil seal installer set
  1. Installer adapter
  2. Bar
  3. Brass bar
 MB990925-01 or General service tool Press-fitting of differential carrier oil seal (Use together with MB991115)
G05394389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991159
Bushing remover and installer
  1. MB991162 Bolt
  2. MB991218 Bearing
 - Removal of the rear suspension crossmember bushing
NOTE: When press-fitting the bushing, use the bearing included in MB992107.
G05393947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990847
Base		 -
G05394391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992234
Bearing		 -
G05394392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992235
Adapter		 -
G05394393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992253
Remover and installer		 -
G05394394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992254
Base		 -
G04871584Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990326
Preload socket		 General service tool Measurement of the wheel bearing rotation starting torque
G05394396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990685
Torque wrench		 General service tool

MB990925 BEARING AND OIL SEAL INSTALLER SET

MB990925 BEARING AND OIL SEAL INSTALLER SET

Tool Type Tool number O D mm (in)
G05394397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 A MB990926 39.0 (1.54)
MB990927 45.0 (1.77)
MB990928 49.5 (1.95)
MB990929 51.0 (2.00)
MB990930 54.0 (2.13)
MB990931 57.0 (2.24)
MB990932 61.0 (2.40)
MB990933 63.5 (2.50)
MB990934 67.5 (2.66)
MB990935 71.5 (2.81)
MB990936 75.5 (2.97)
MB990937 79.0 (3.11)
B MB990938 -
C MB990939 -
