Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

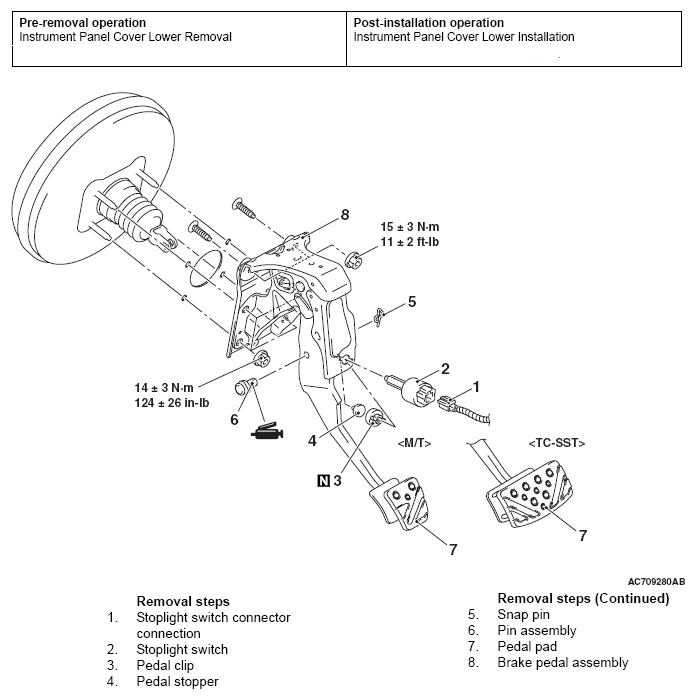

Fig 1: Brake Pedal Remove / Install Replacement Components With Torque Specifications
G05394585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
