SPECIAL TOOL

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

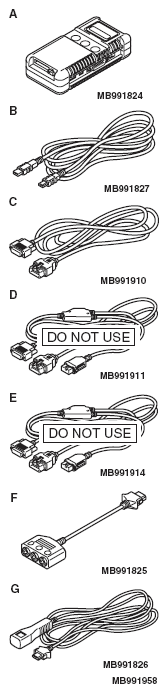

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 Scan tool (M.U.T.-III sub assembly) MB991824 Vehicle communication interface (V.C.I.) MB991827 M.U.T.-III USB cable MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system) MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system) MB991914 M.U.T.-III main harness C (for Daimler Chrysler models only) MB991825 M.U.T.-III measurement adapter MB991826 M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Checking of engine speed CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991519 Generator harness connector	MIT530 Micrd 530 charging system tester.	Checking of generator ("S" terminal voltage)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992226 Serration socket	-	Removal and installation of alternator's one way clutch
