Control Unit Signal Circuit Check

Disconnect control unit connector. Using a volt/ohmmeter, check vehicle side wiring harness. See Fig 1 through Fig 3 .

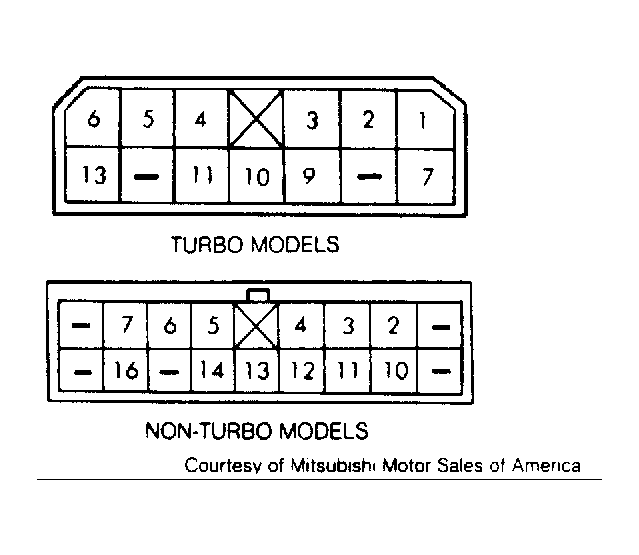

Fig 1: Control Unit Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

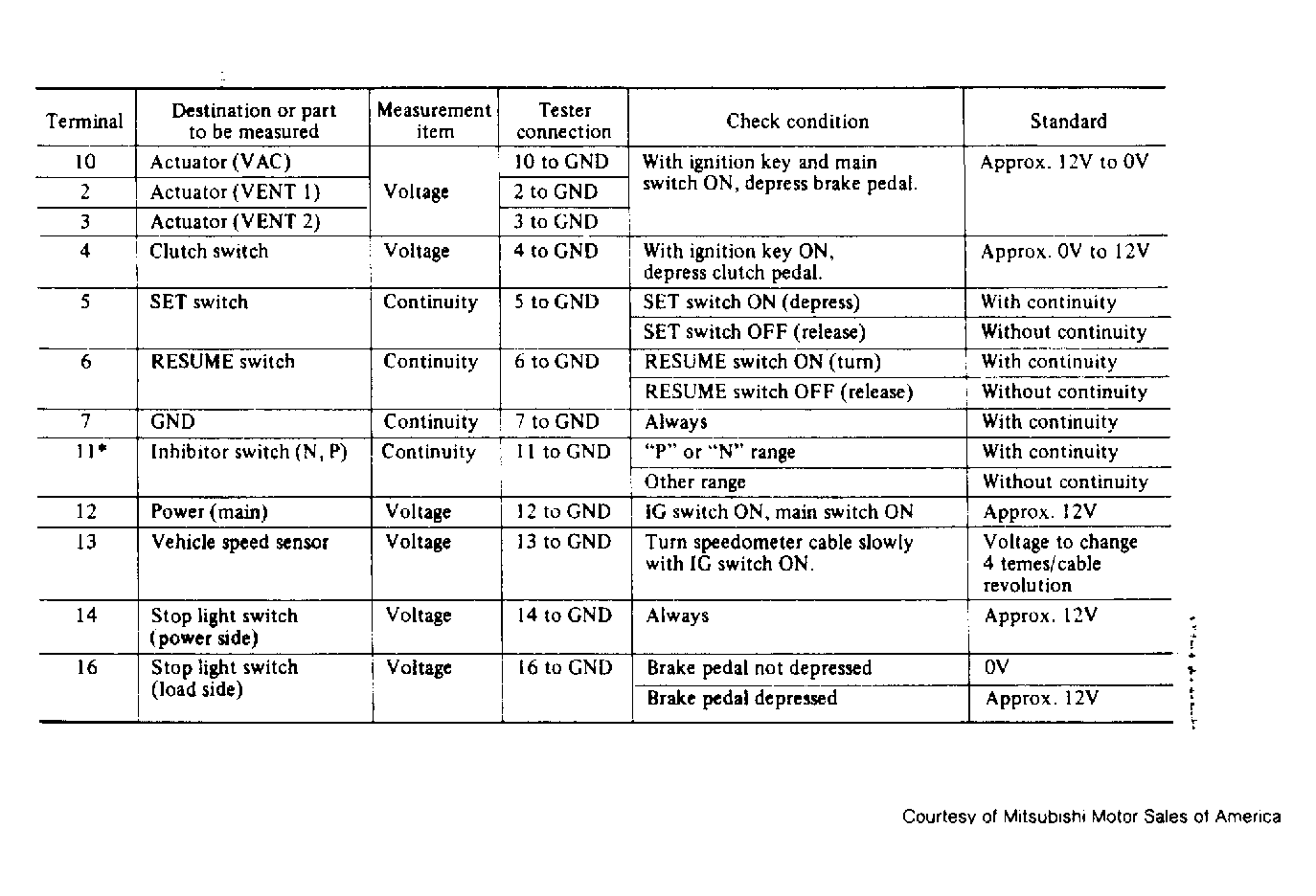

Fig 2: Control Unit Signal Circuit Check (Non-Turbo Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Control Unit Signal Circuit Check (Turbo Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
