Control Units

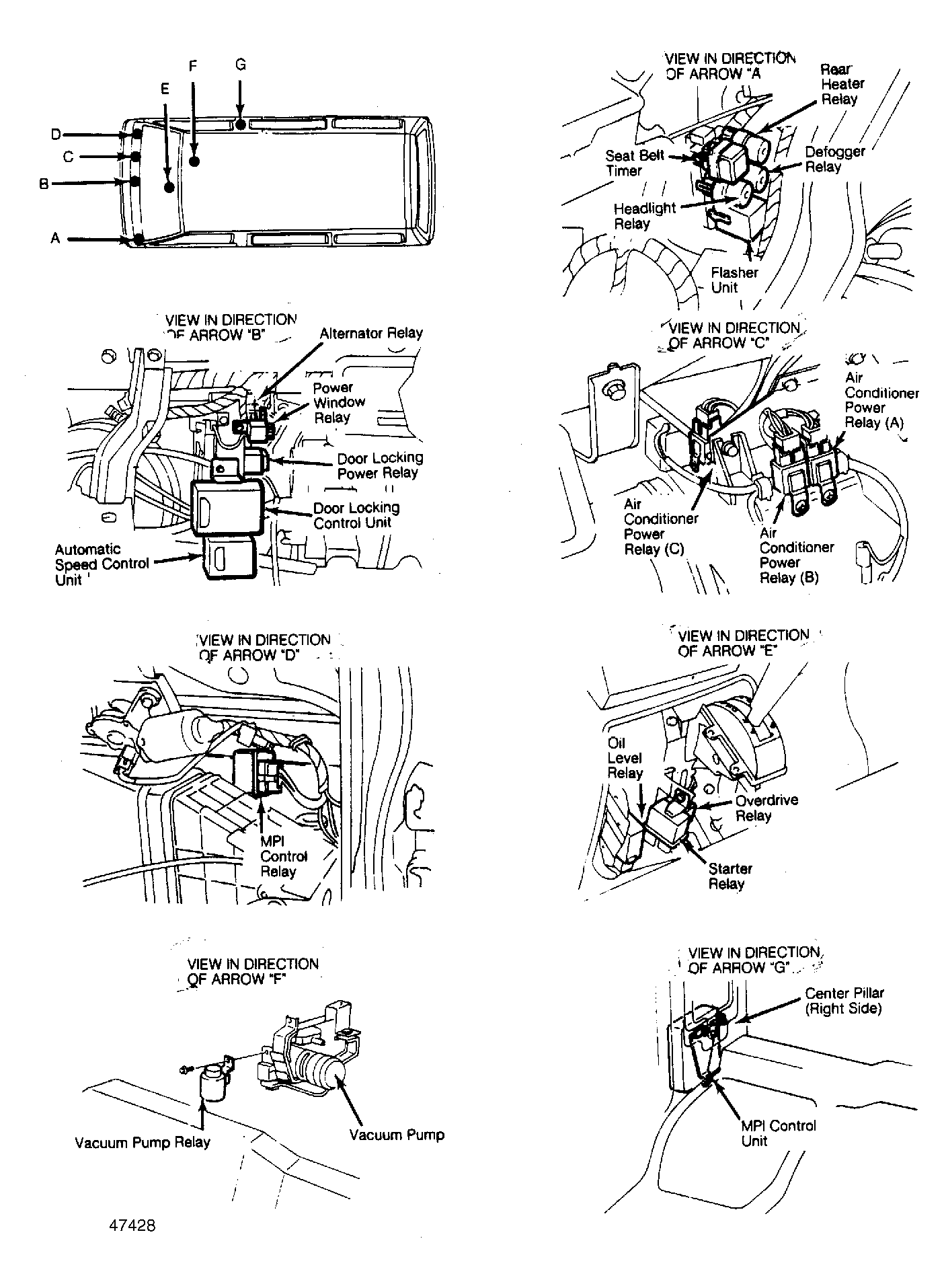

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Speed Control Unit | On bracket, in center of front compartment. See Figure . |
| Door Locking Control Unit | On bracket, in center of front compartment. See Figure . |
| Electronic Control Unit (ECU) | Behind driver's seat belt retractor. |
| Multi-Point Injection (MPI) Control Unit | In right center pillar, under trim panel. See Figure . |
