Oxygen Sensor

Warm engine until coolant temperature is 185-205°F (85-96°C). Remove oxygen sensor connector and connect voltmeter. With engine above 1300 RPM, measure output voltage. Voltage should be approximately one volt. If not, replace oxygen sensor.

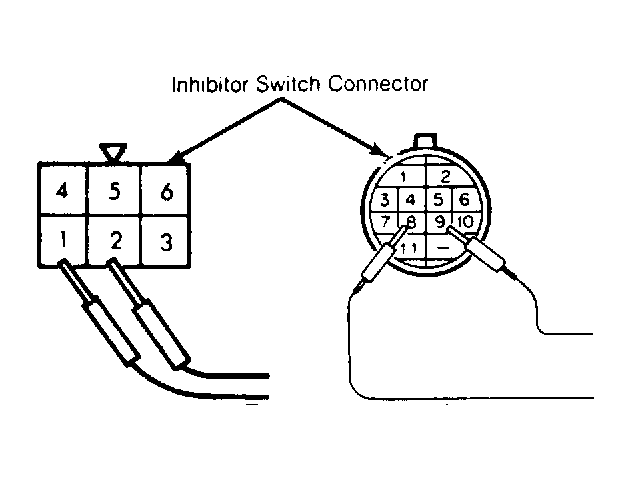

Fig 1: Checking Inhibitor Switch

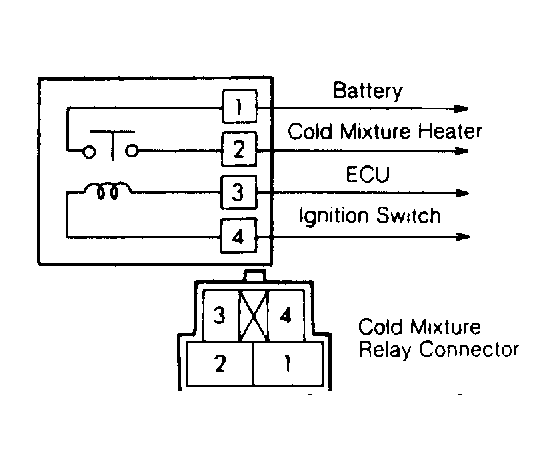

Fig 2: Checking Cold Mixture Heater Relay
