Ecu Signal Circuit Check

Disconnect ECU connector. SeeFig 1 . Using a DVOM, check body side connector for resistance or voltage as required. SeeFig 2 .

Fig 1: ECU Connector Terminal Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Electronic Control Unit (ECU) Signal Circuit Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

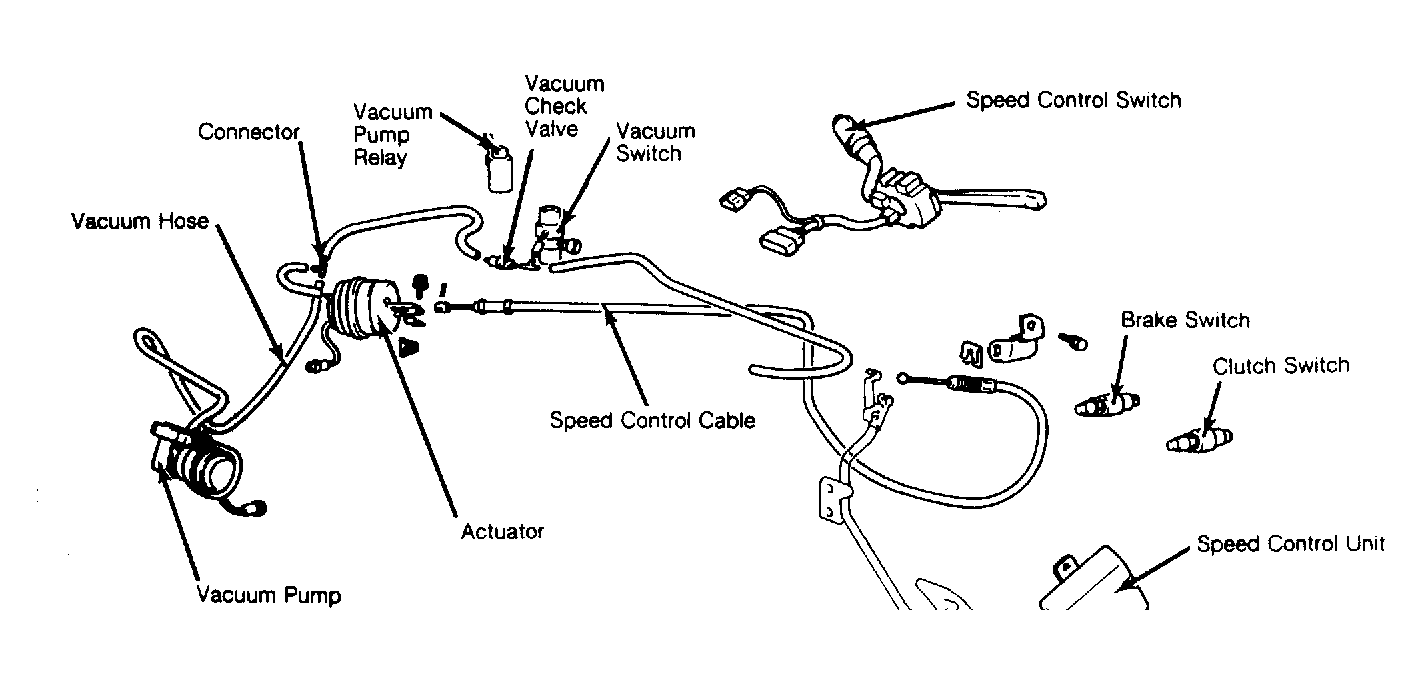

Fig 3: Starion Cruise Control Component Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
