Steering Column - All Others: Reassembly

To reassemble, reverse disassembly procedure. Align steering lock with column boss. Ensure steering lock is operational. Tighten bolt until bolt head breaks off. Install column bracket bolt and tighten until head breaks off.
On Mirage models, apply adhesive to outside of bearing prior to installation in column tube.
On all models, apply multipurpose grease to bearing prior to installation.

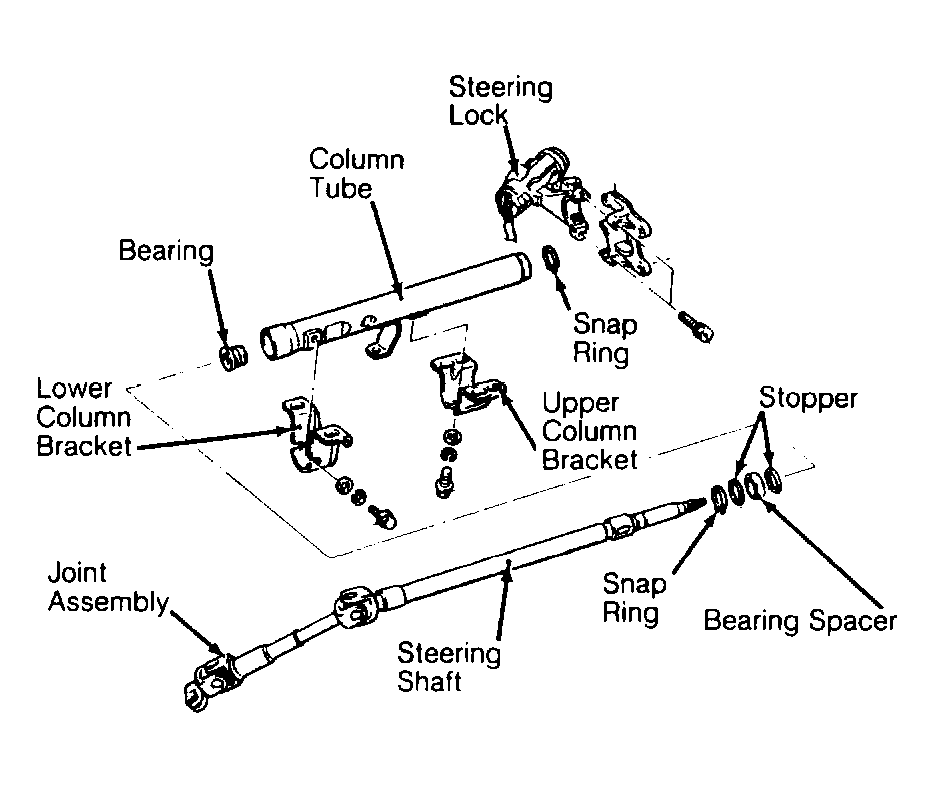

Fig 1: Exploded View of Typical Non-Tilt Steering Column (Tilt Models Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
