Ignition Switch

Using an ohmmeter, ensure continuity is present in proper switch positions. See Fig 1-Fig 3 .

Fig 1: Checking Ignition Switch Continuity (Precis)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

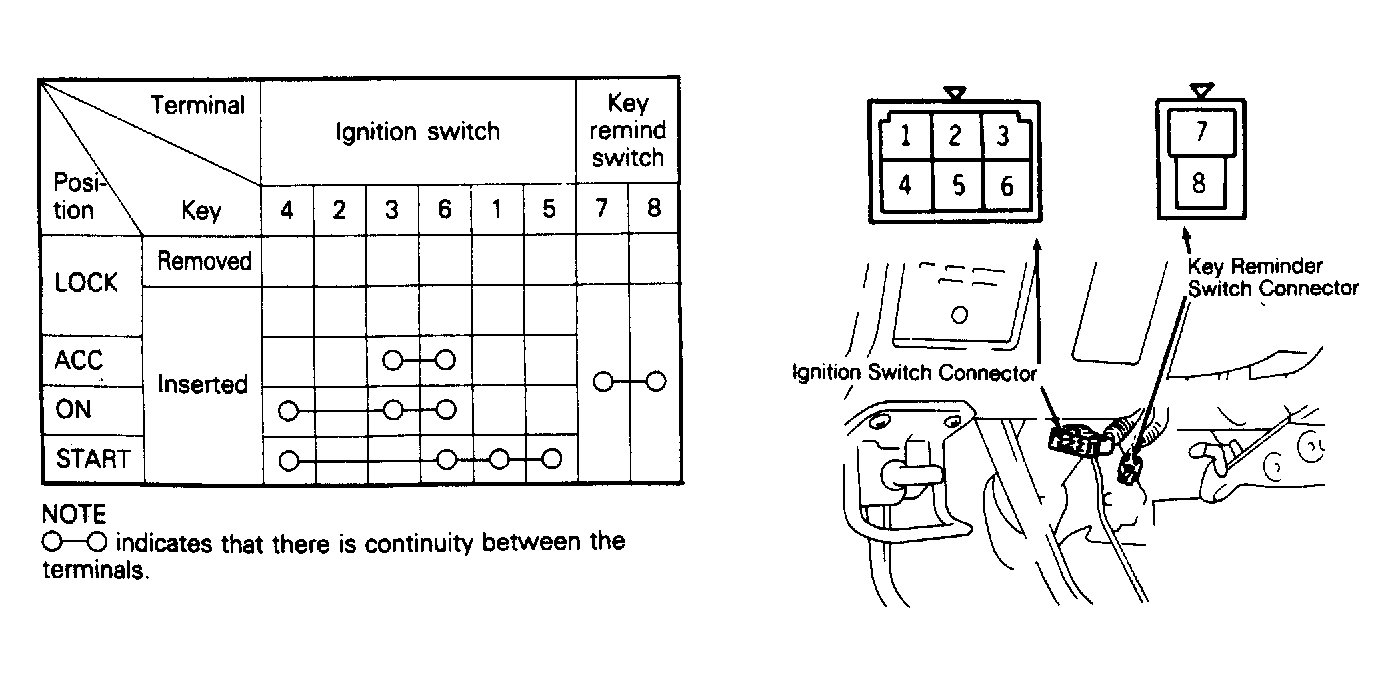

Fig 2: Checking Ignition Switch Continuity (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

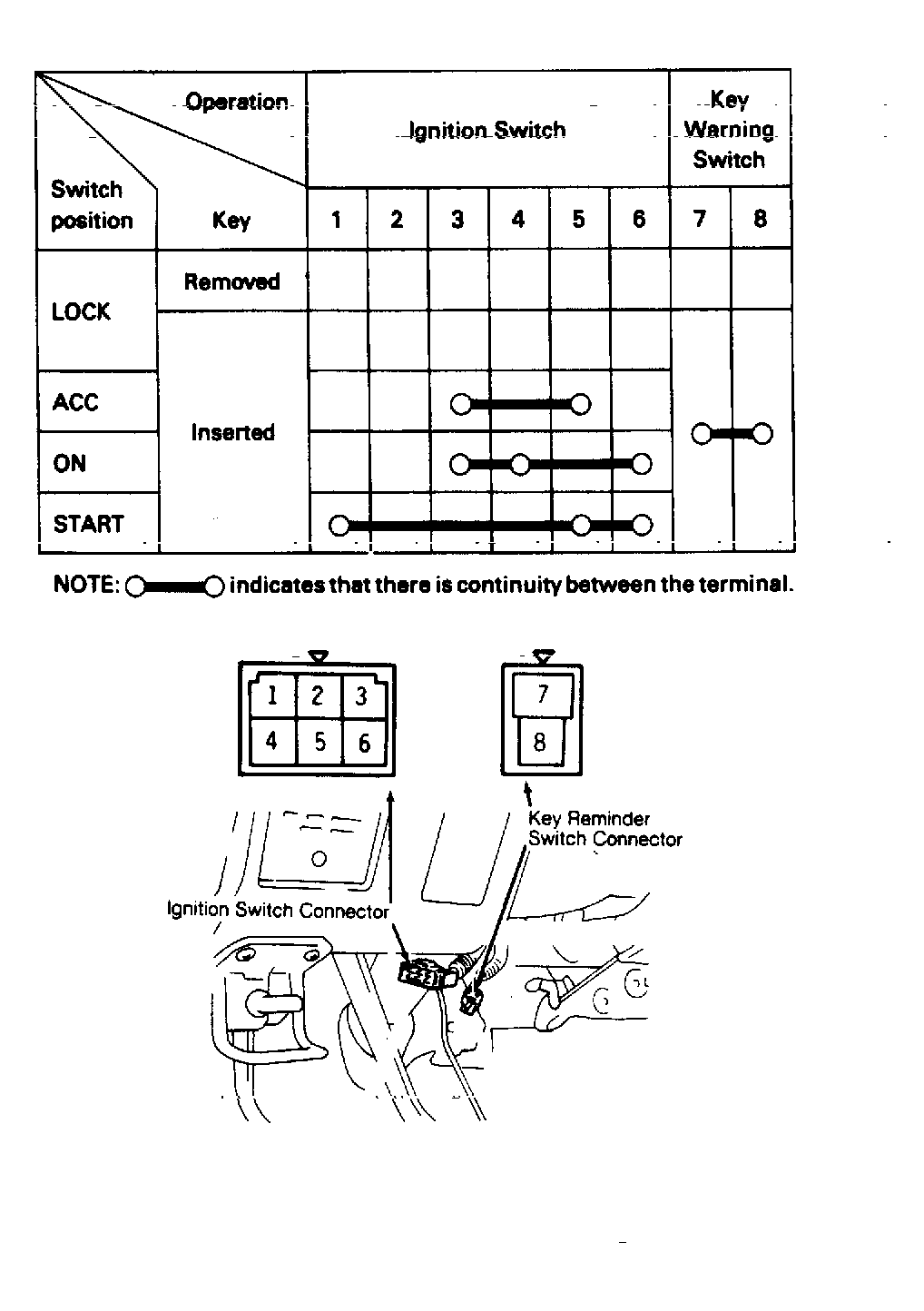

Fig 3: Checking Ignition Switch Continuity (Pickup)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
