Headlight Assembly: Notes

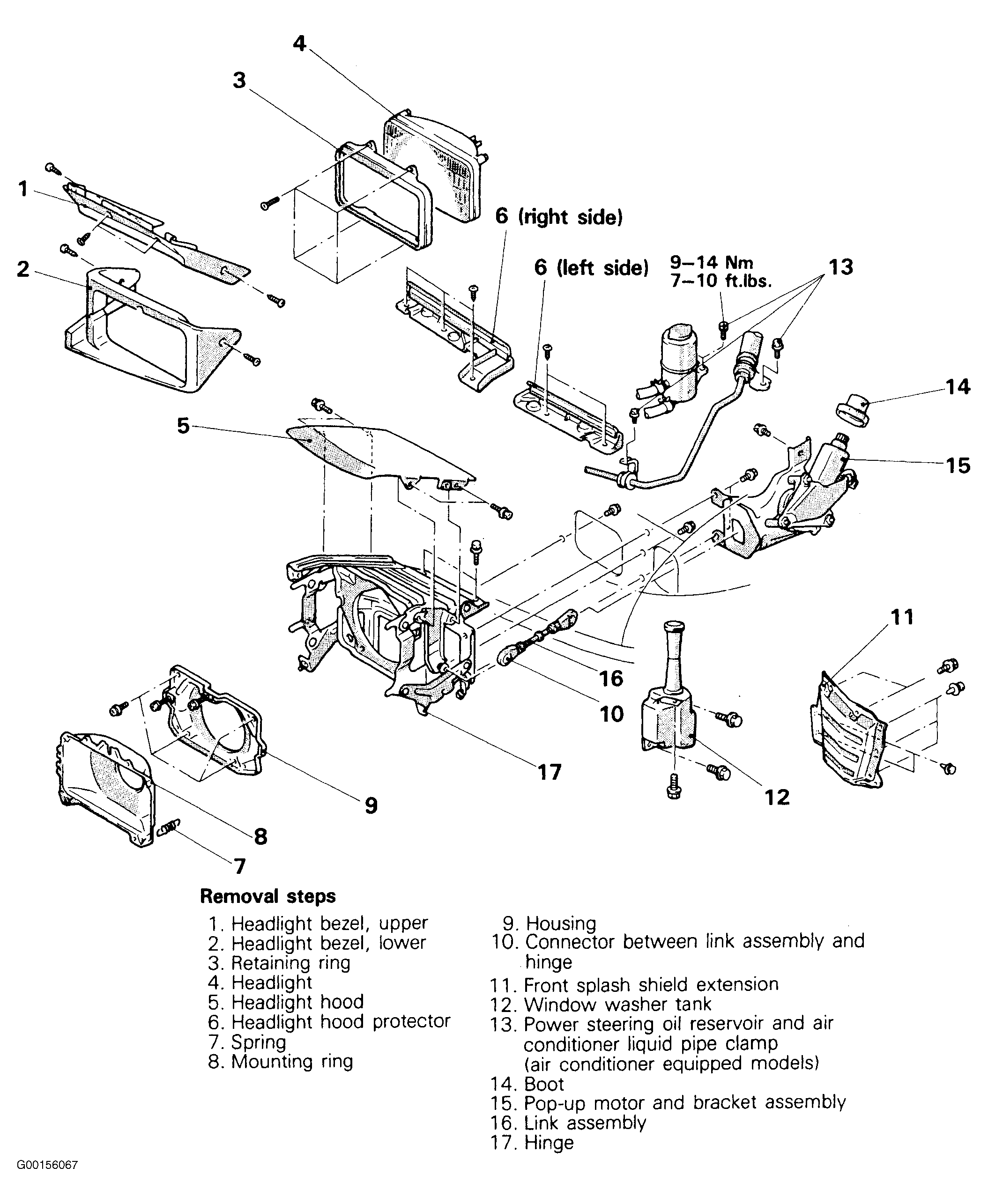

Fig 1: Exploded View Of Retractable Headlight Components
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
