Mirage 1.5L, Eclipse 1.8L, Pickup & Ram-50 & Van/Wagon 2.4L

Connect 6-volt DC source across terminals No. 1 and 2 of ISC motor connector. See Fig 1 -Fig 3 . Reverse polarity of 6-volt source by reversing leads. If motor does not operate in both directions, replace ISC motor assembly.

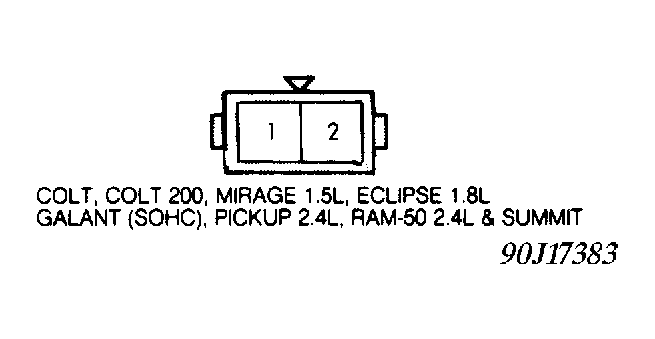

Fig 1: Identifying Idle Speed Control Motor Connector Terminals (1 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Identifying Idle Speed Control Motor Connector Terminals (2 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Identifying Idle Speed Control Motor Connector Terminals (3 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
