Inspection Using Oscilloscope
- Run engine at idle speed.

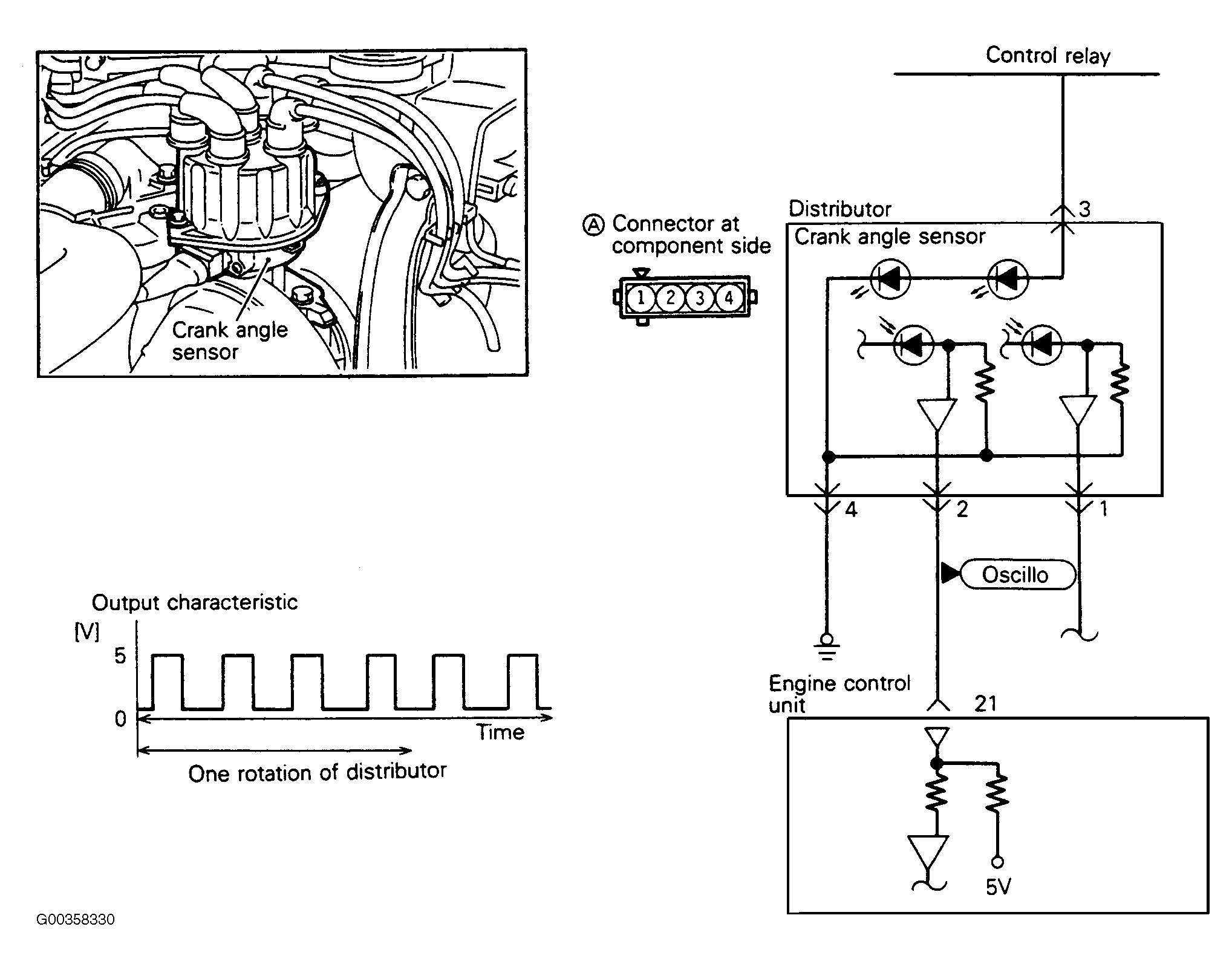

- Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram. See Figure
. Waveform should be as illustrated. See Fig 1
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
