Front Wiper Motor Low Speed Operation Test

  1. Disconnect wiring connector from wiper motor. Connect battery voltage to wiper motor connector and ensure wiper motor operates.
  2. Check low speed operation by connecting battery voltage to one connector terminal and ground to other connector terminal. See LOW SPEED OPERATION CHECK TERMINAL NUMBERS table for terminal numbers. See Fig 1 .
LOW SPEED OPERATION CHECK TERMINAL NUMBERS

Model Ground Terminal No. Voltage (+) Terminal No.
Eclipse (1) (1)
Galant & Mirage (1) (1)
Pickup 1 3
Montero & Sigma 3 1
Precis 5 1
Van/Wagon Ground 1
(1) For terminal identification, seeFig 2 .

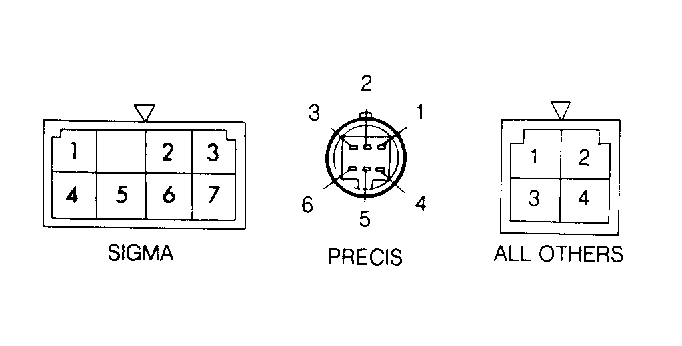

Fig 1: Identifying Front Wiper Motor Terminals
G91I00075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

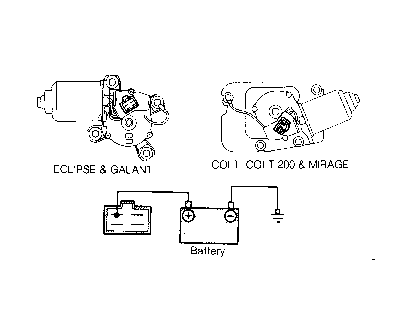

Fig 2: Checking Low Speed Wiper Motor (Eclipse, Galant & Mirage)
G91I00080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
