Rear Wiper Switch Test: Eclipse

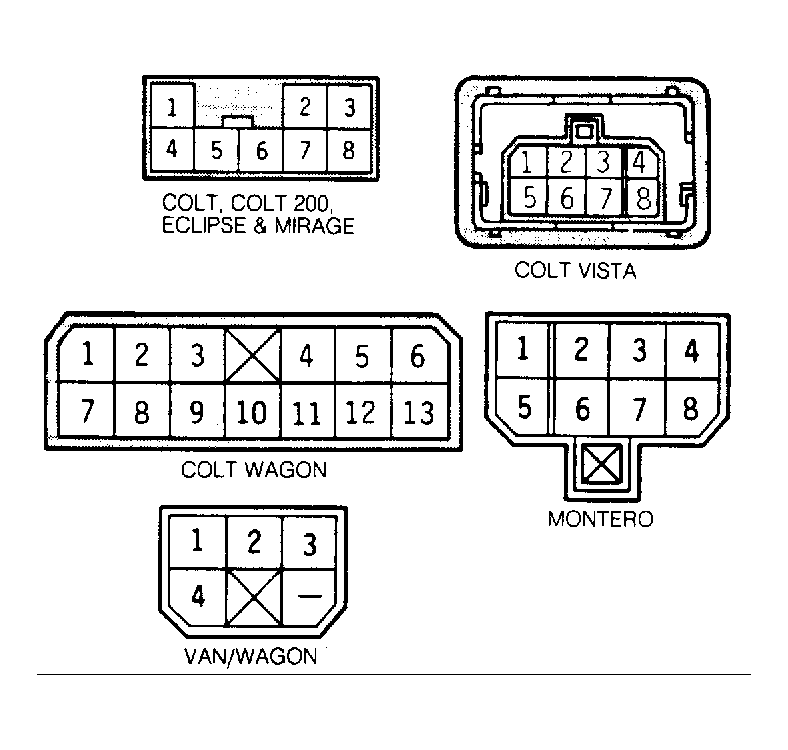

Remove switch from instrument panel and disconnect wiring connector. Place switch in OFF position. Continuity should exist between terminals No. 4 and 5. Place switch in ON position, continuity should exist between terminals No. 5 and 6. Place switch in INT position. Continuity should exist between terminals No. 2 and 8. Depress washer switch. Continuity should exist between terminals No. 6 and 7. Continuity between terminals No. 1 and 3 should exist in all positions (light circuit). See Figure .
