Electronic Control Unit Signal Circuit

Disconnect the connector of the ECU and then check at the body side wiring harness according to the chart. See Fig 1 -Fig 4 .

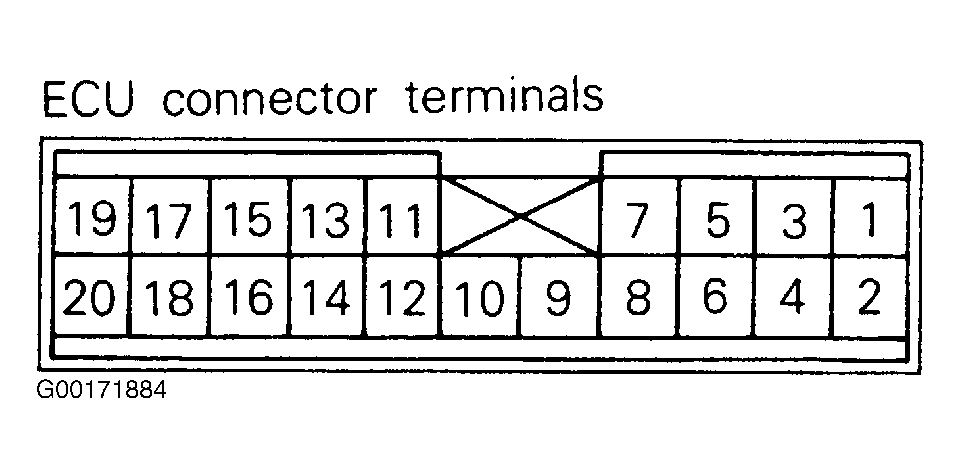

Fig 1: Identifying ECU Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

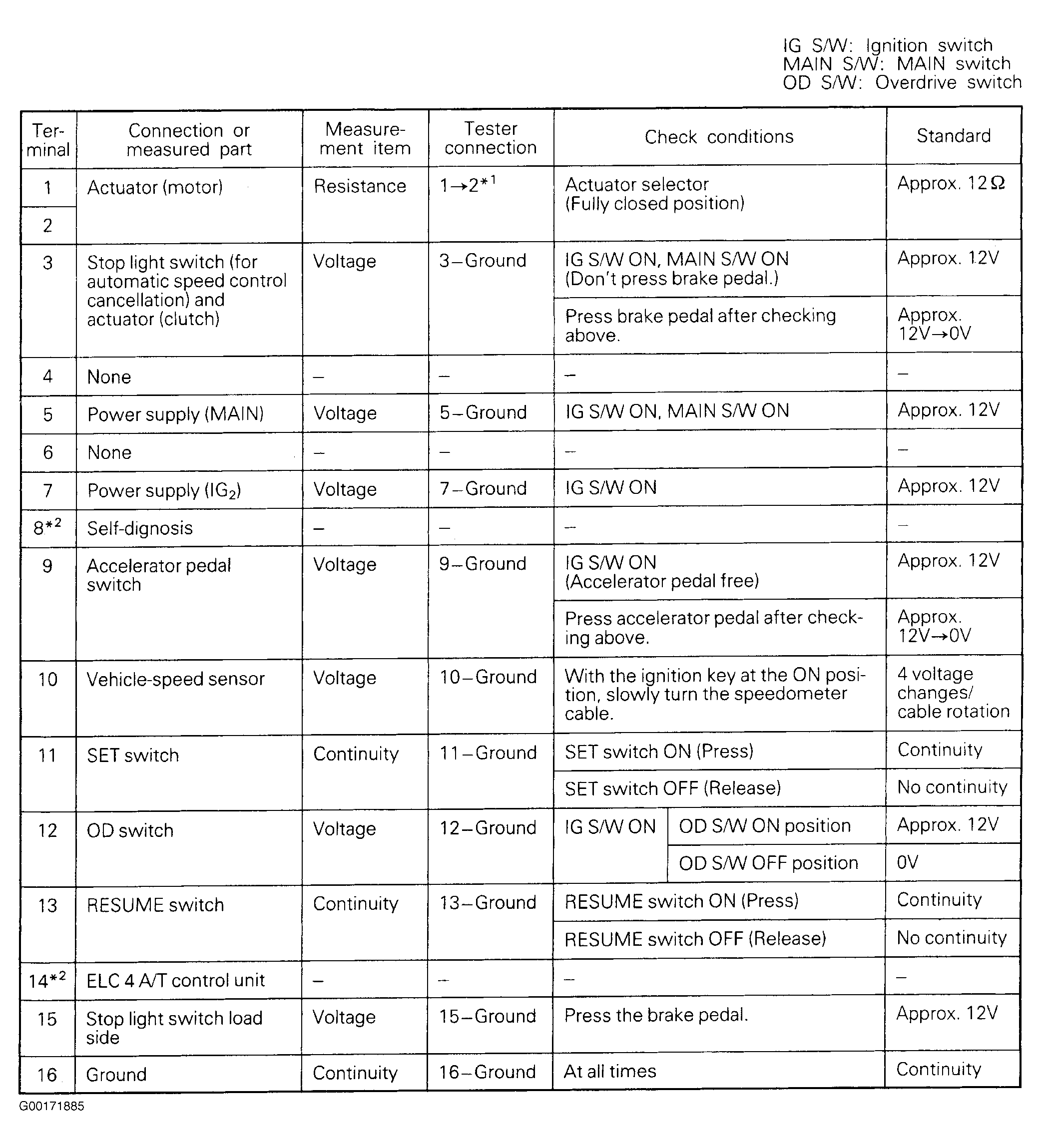

Fig 2: Checking ECU Signal Circuit Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

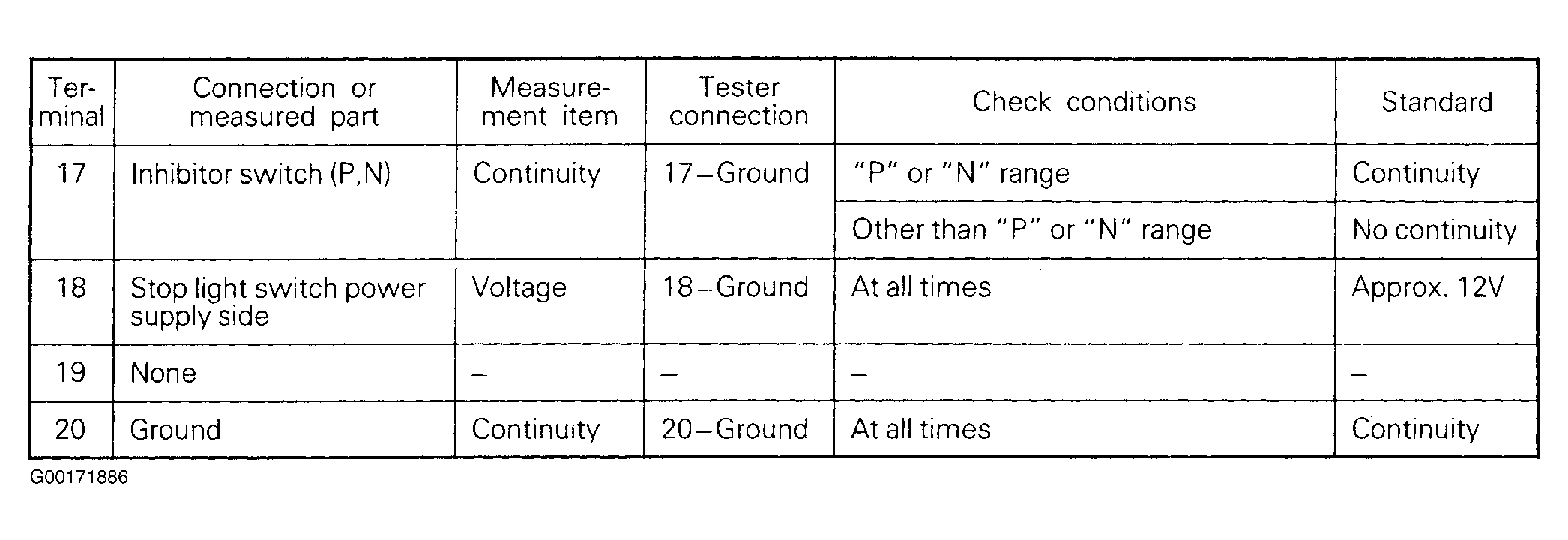

Fig 3: Checking ECU Signal Circuit Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

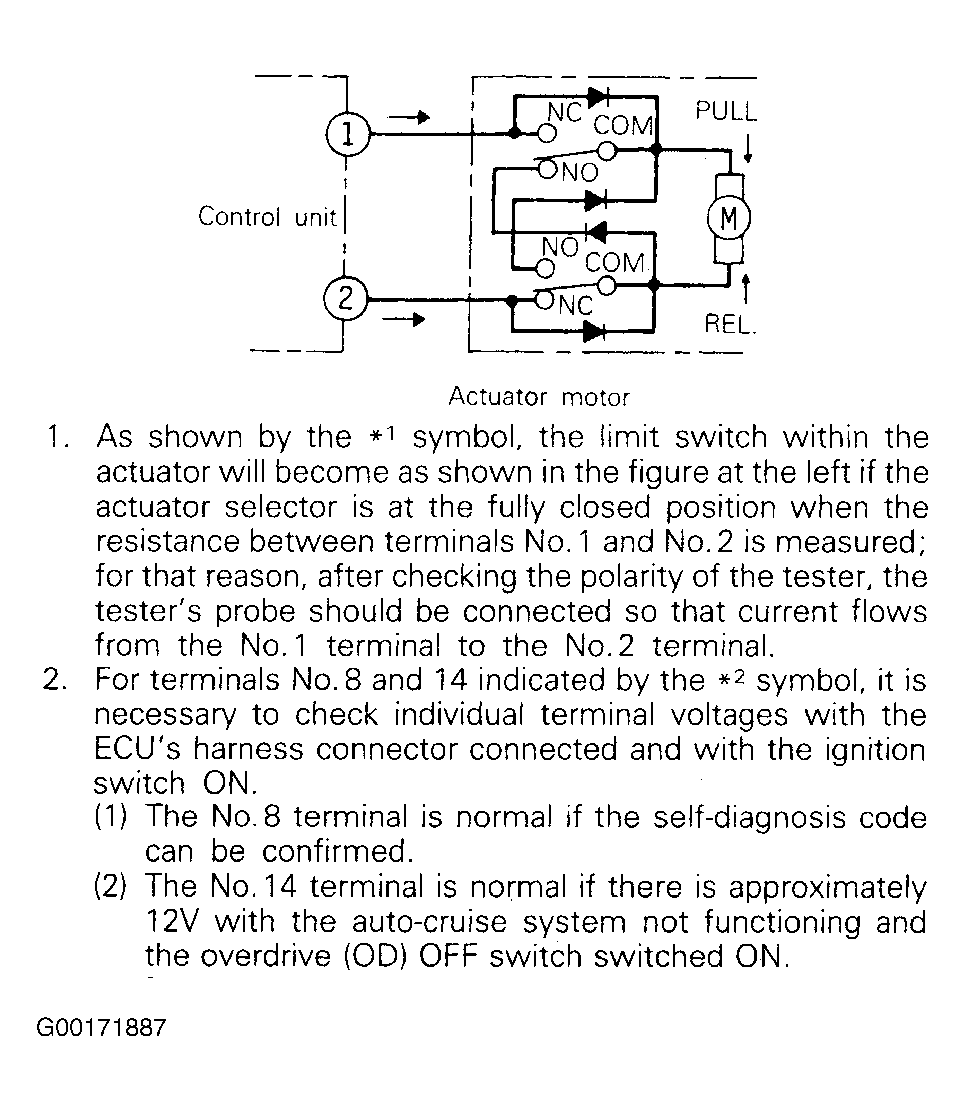

Fig 4: Checking ECU Signal Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
