Component Locations

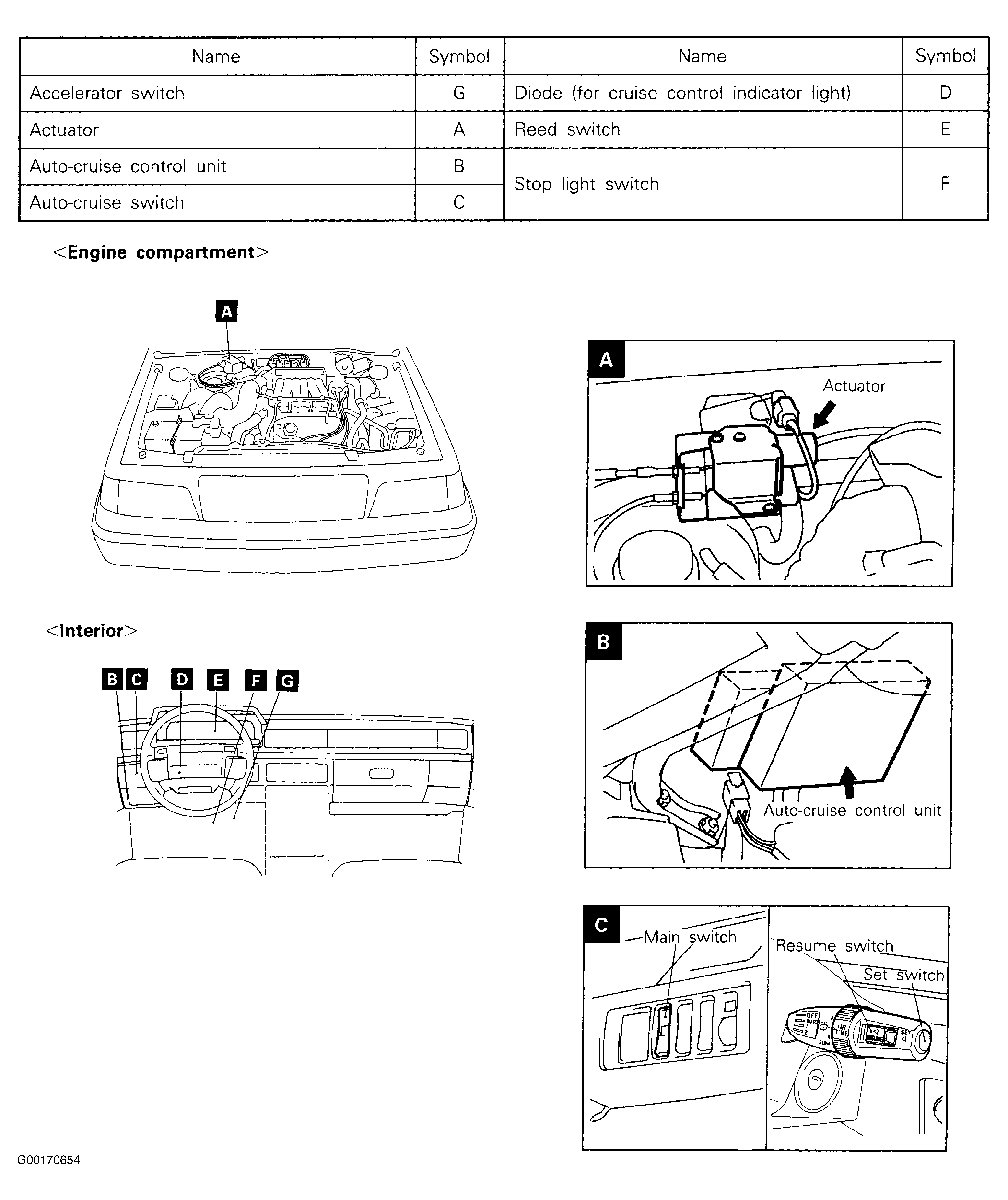

Fig 1: Locating Cruise Control Electrical Components (1 Of 2)
G00170654Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

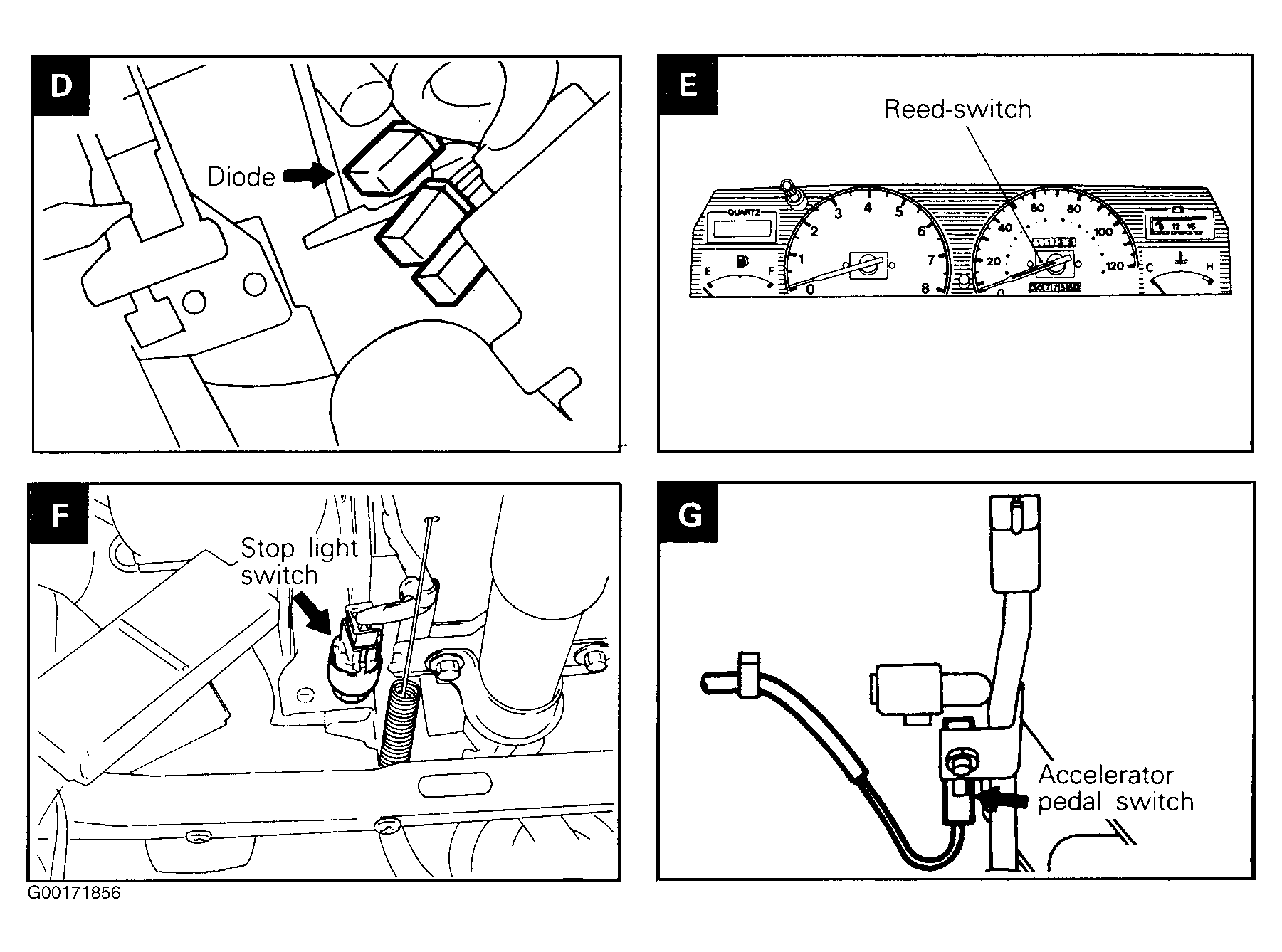

Fig 2: Locating Cruise Control Electrical Components (2 Of 2)
G00171856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

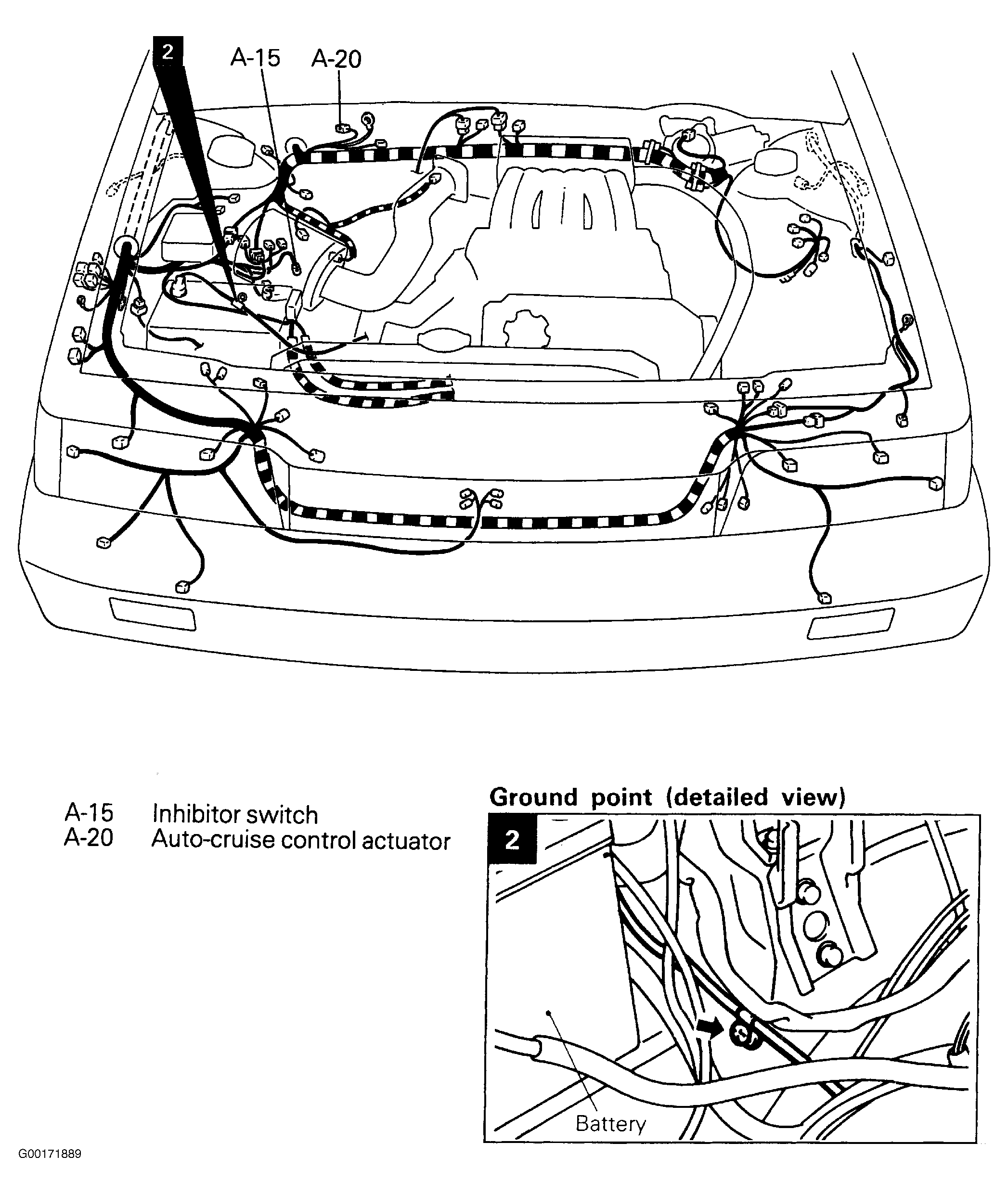

Fig 3: Locating Engine Compartment Wiring Harness & Connectors
G00171889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

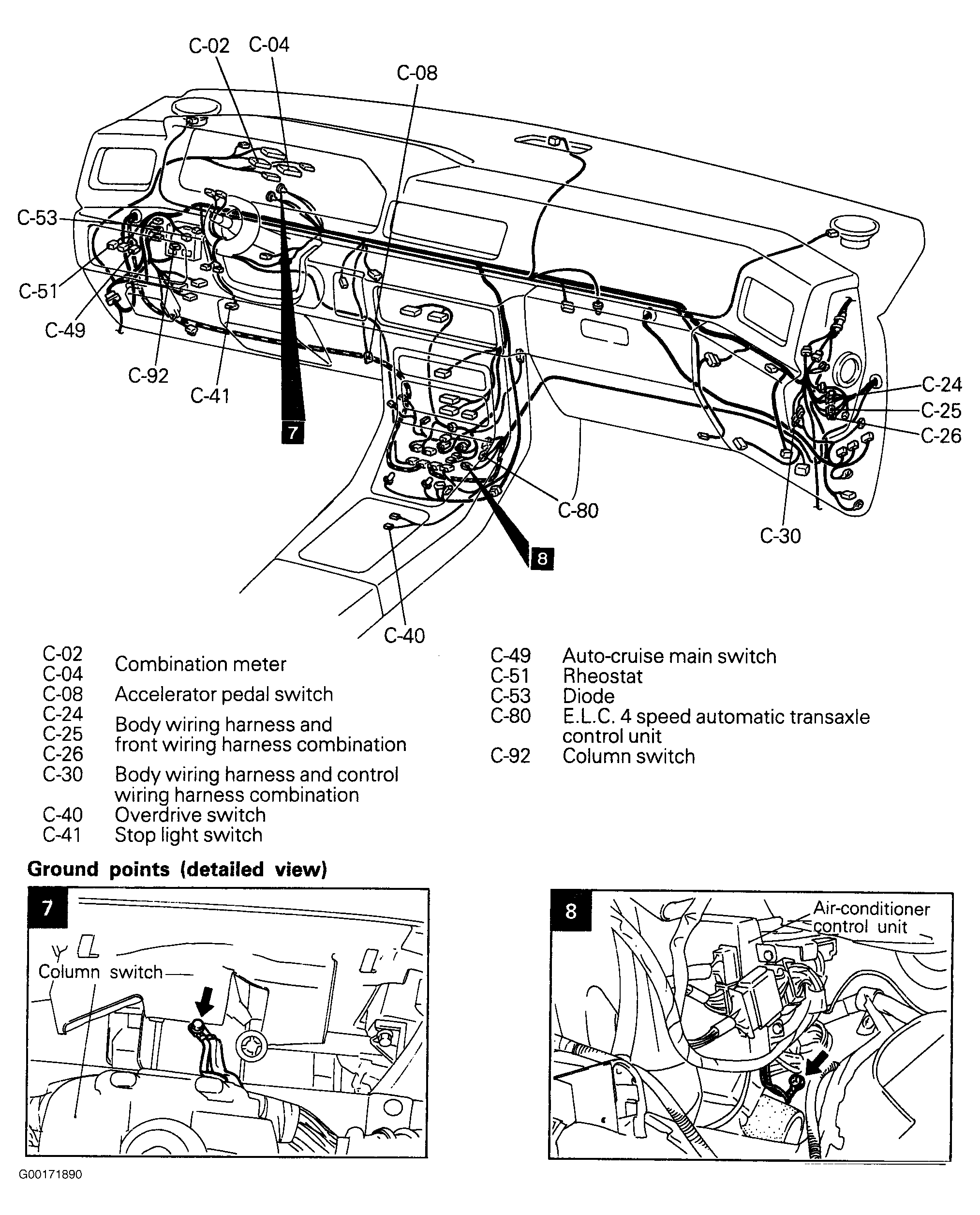

Fig 4: Locating Dash/Instrument Panel Wiring Harness & Connectors
G00171890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

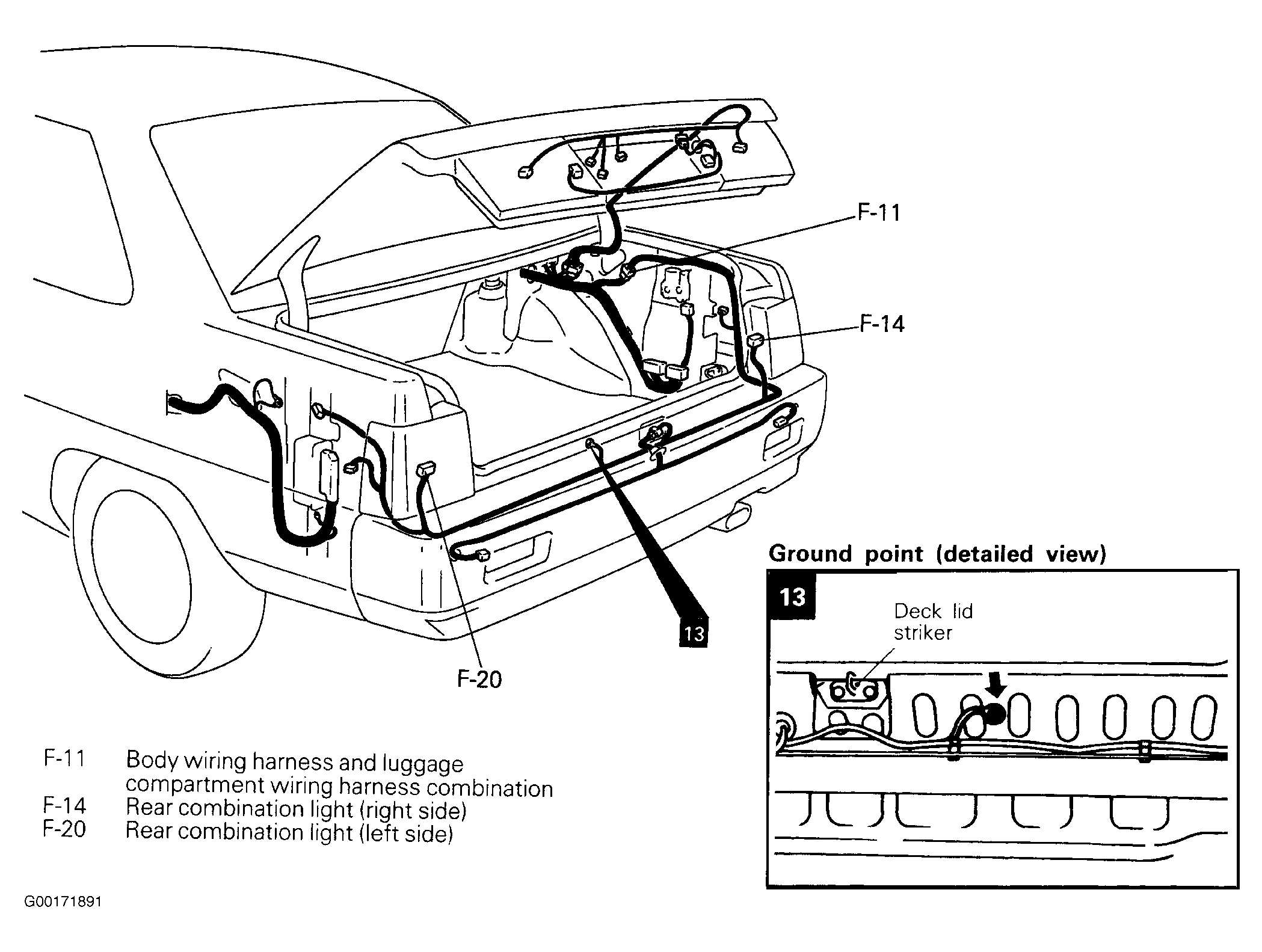

Fig 5: Locating Luggage Compartment Wiring Harness Locations
G00171891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
