Stop Light/Brake Switch

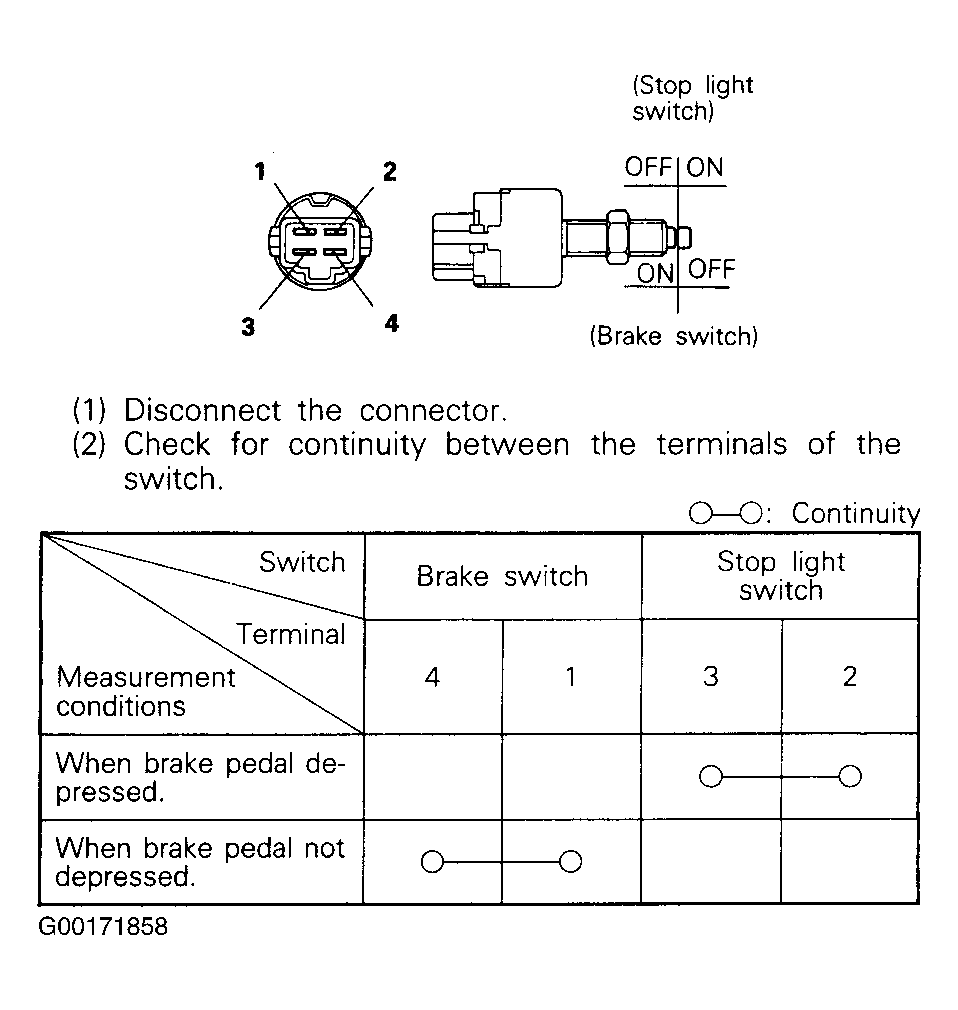

Fig 1: Testing Stop Light/Brake Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
