Mirror Switch

For component testing, see Fig 1 .

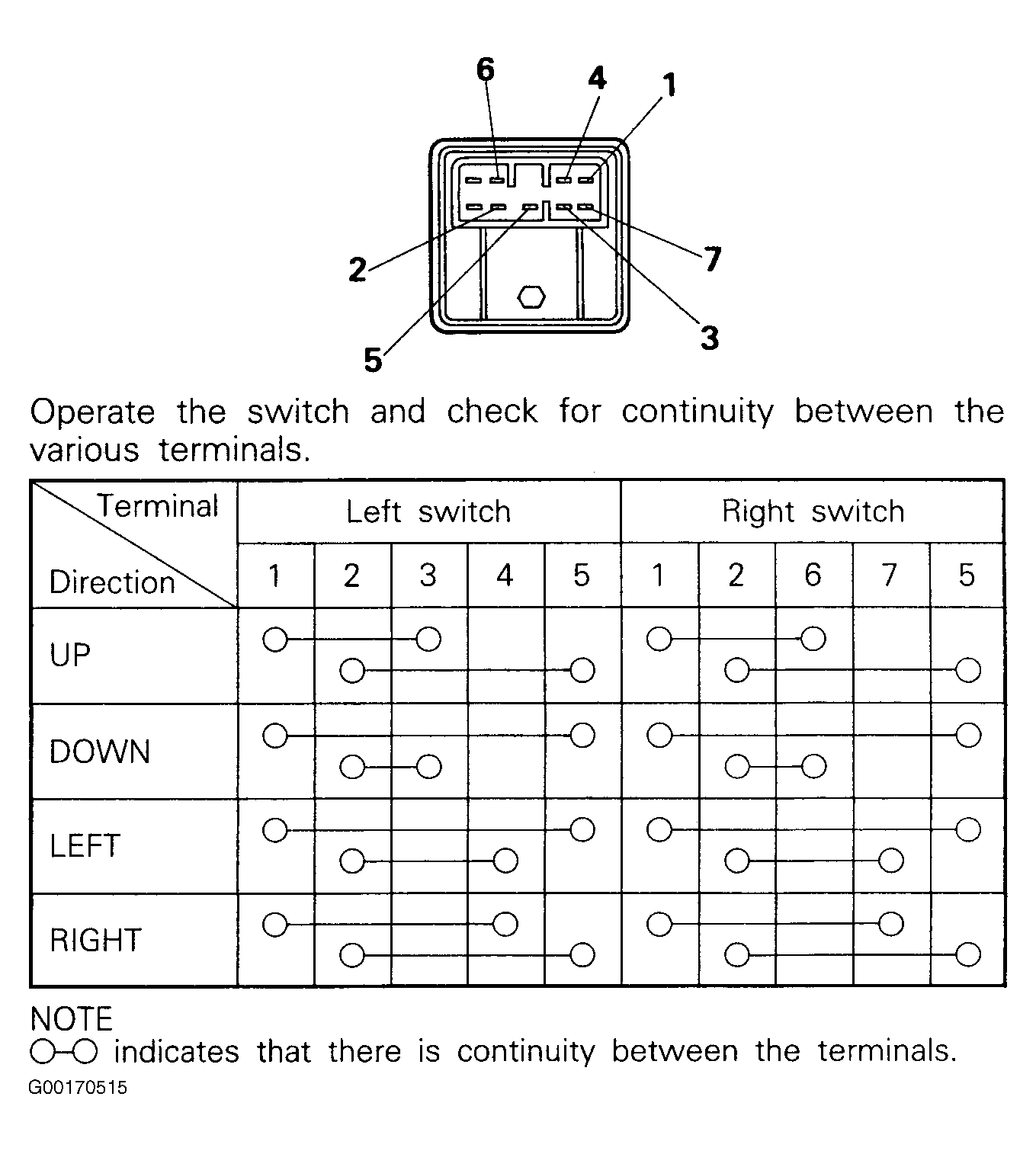

Fig 1: Testing Remote Control Mirror Switch
G00170515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
