Front Door Switch Input Circuit

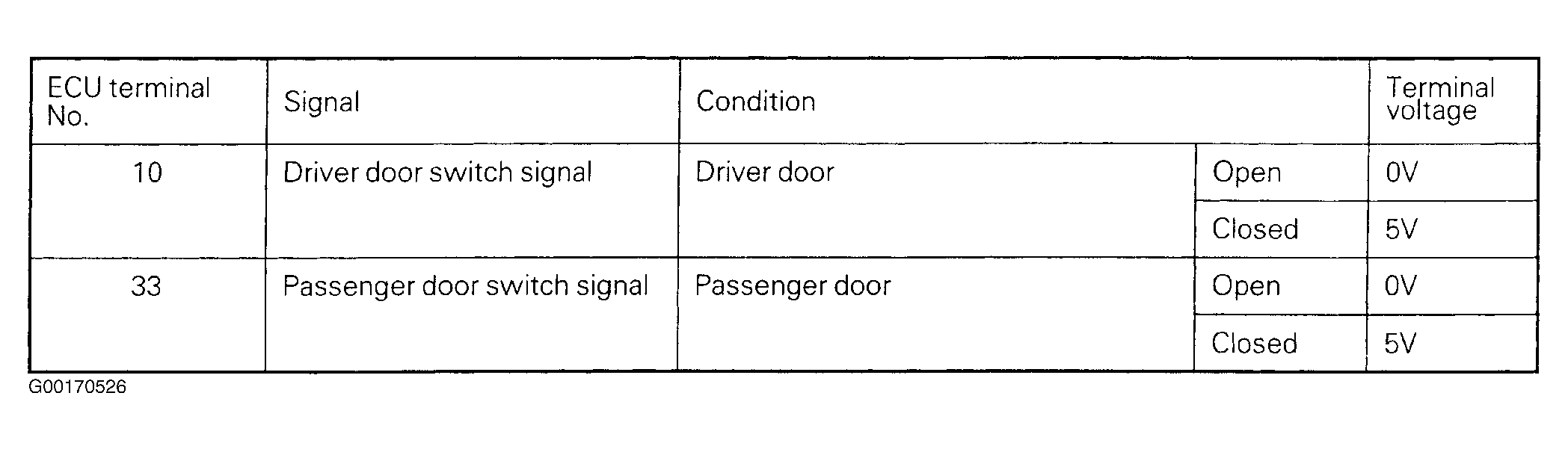

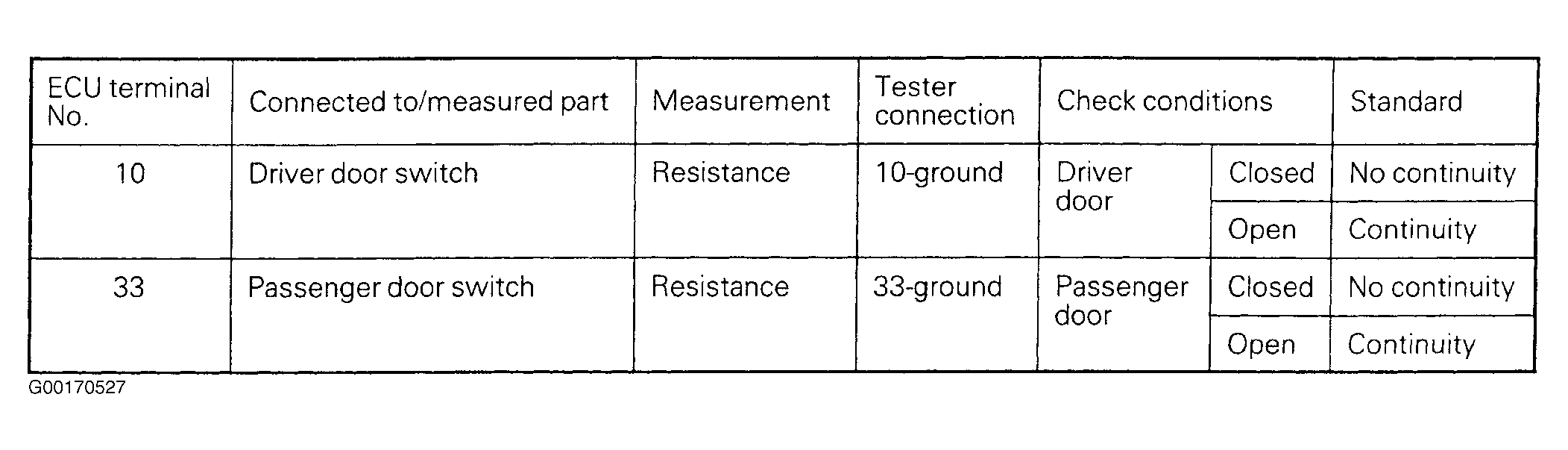

When the front door is closed (the door switch is switched OFF), HIGH-level signals are sent to the electronic control unit; when the front door is opened (the door switch is switched ON), LOW-level signals are sent to the electronic control unit. See Fig 1
and Fig 2
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
