Component Locations

COMPONENT LOCATIONS

Component		Location
ETACS Control Unit		Under lower left side of instrument panel. See Fig 1 .
Power Window Relay		In fuse/relay block, on right inner fender panel. See Fig 2 .

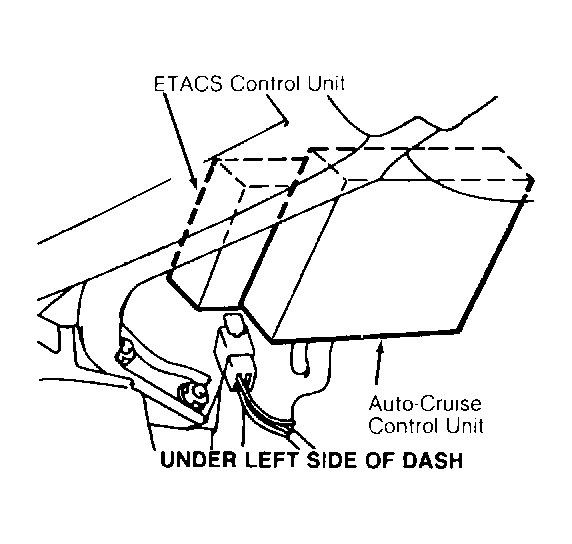

Fig 1: Locating Electronic Theft Alarm Circuit System (ETACS) Control Unit

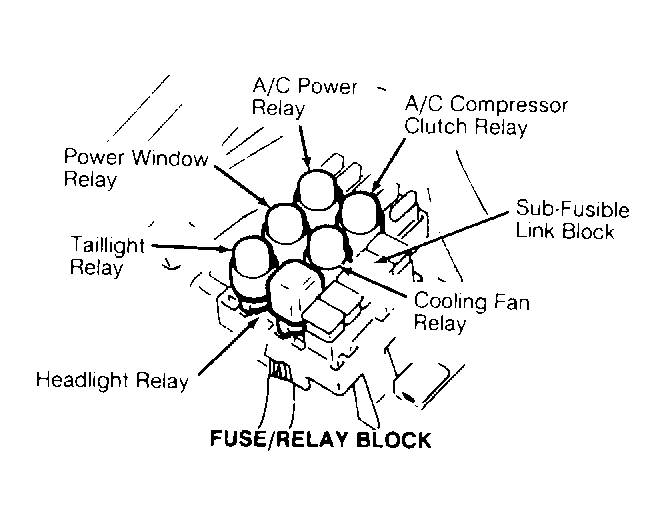

Fig 2: Locating Power Window Relay
