Control Units

CONTROL UNITS LOCATION

Component Location

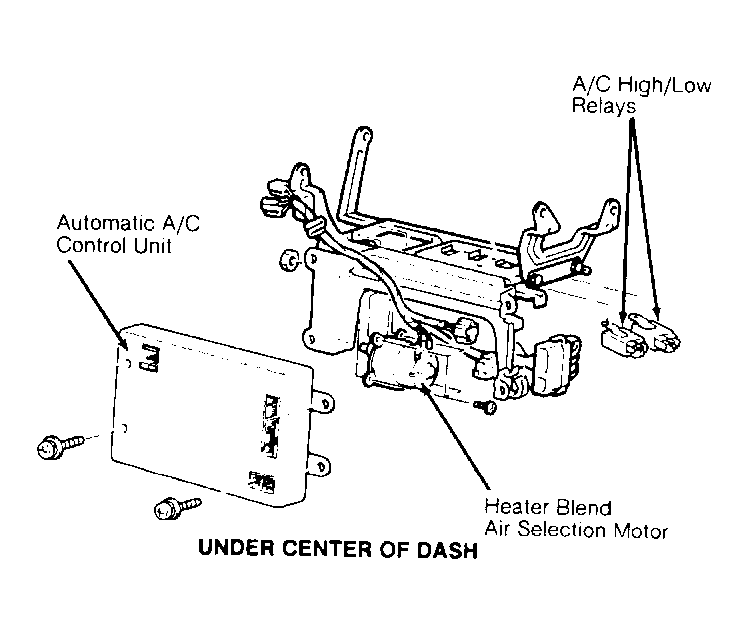

Automatic A/C Control Unit Under center of dash. See Figure .
Auto-Cruise Control Unit Under left side of dash. See Figure .
Anti-Lock Brake Control Unit Behind left side of luggage compartment.

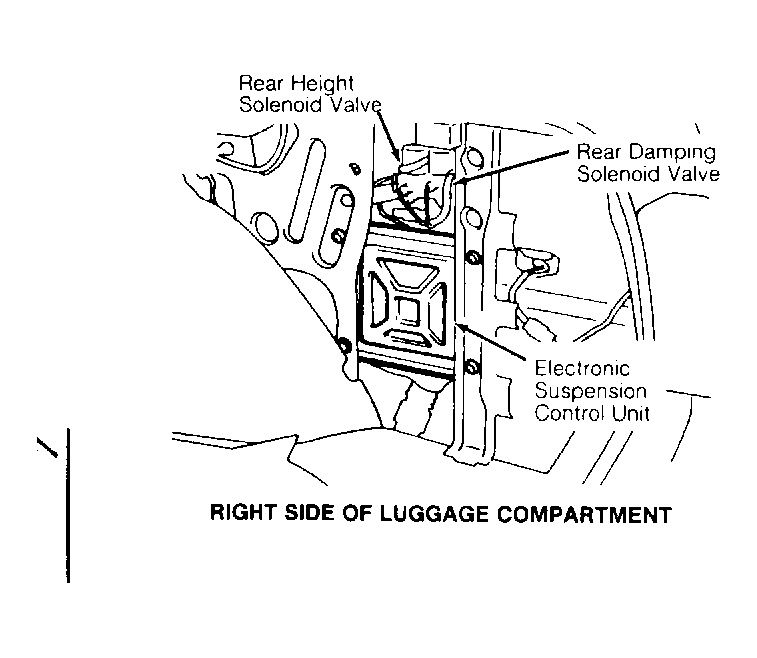

Electronic Suspension Control Unit Behind right side of luggage compartment. See Figure .

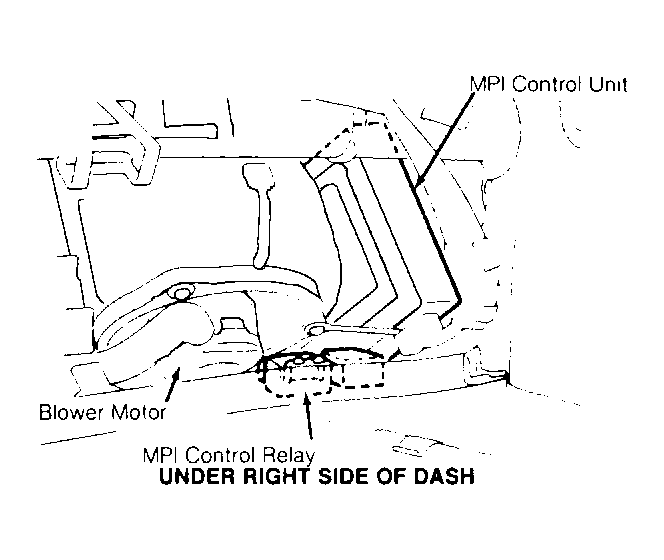

Multi Point Injection (MPI) Control Unit Under right side of dash. See Figure .
Power Steering Control Unit Behind center console.
Theft & Alarm Control Unit (ETACS) Under left side of dash, behind auto-cruise control unit. See Figure .
Transaxle Control Unit In center of dash, under heater unit.
