Dr-3: Code 11 Oxygen Sensor Circuit

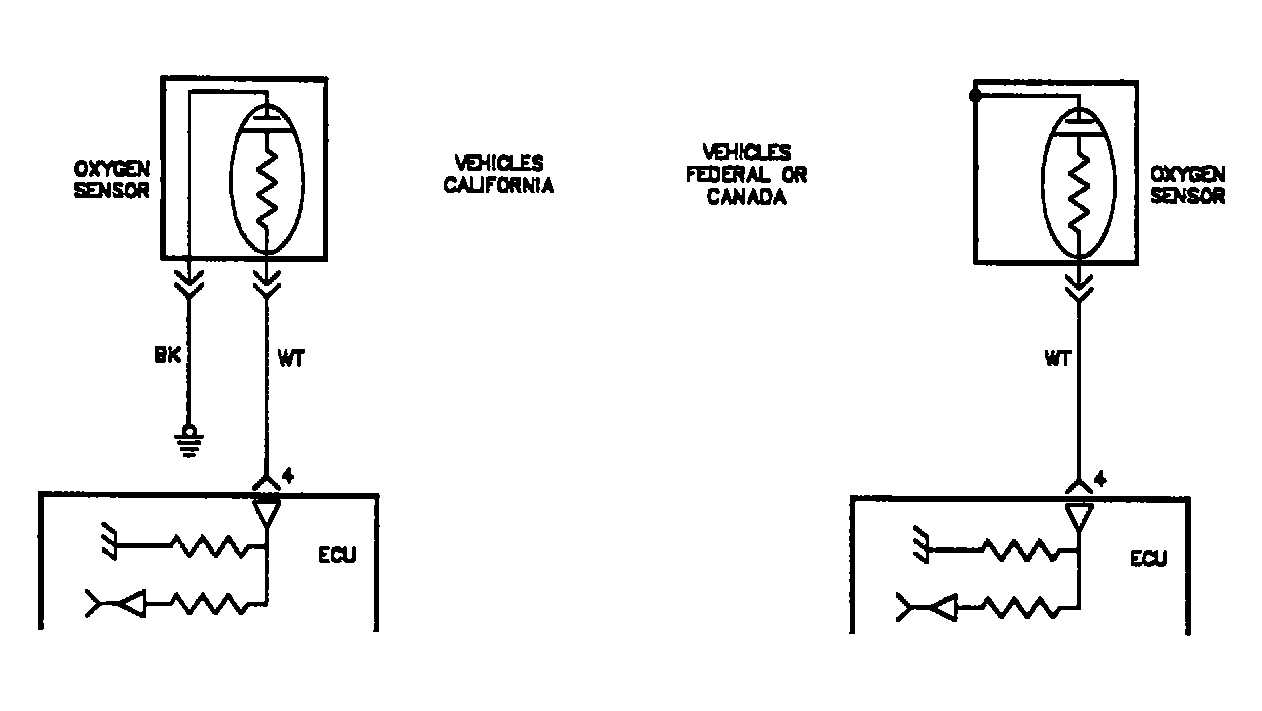

Fig 1: Circuit Diagram DR-3 (2.4L)

G90D20001

Fig 2: Flow Chart DR-3 (2.4L) (1 of 2)

G90I20022

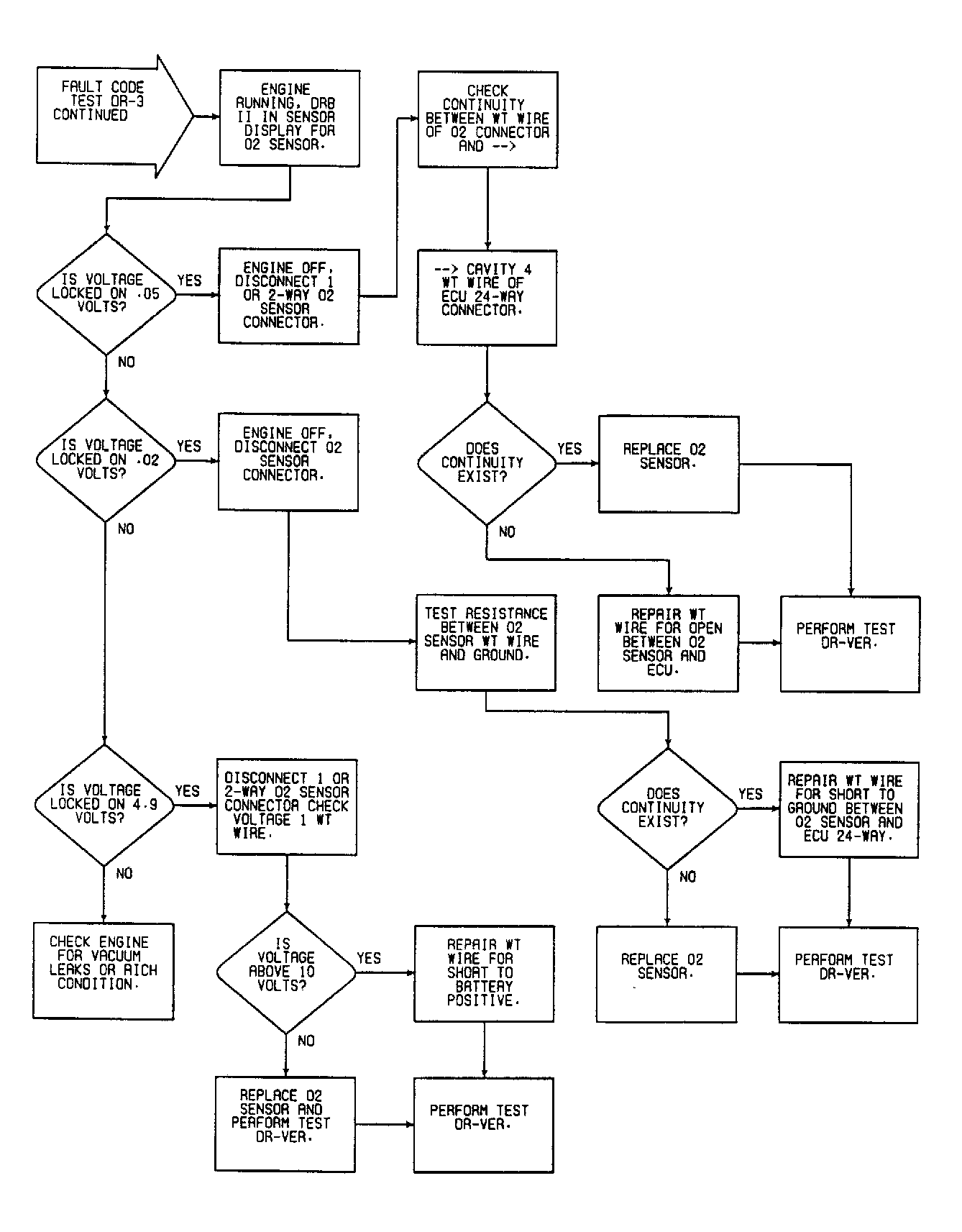

Fig 3: Flow Chart DR-3 (2.4L) (2 of 2)

G90J20023
